Touch Screen System and Setup

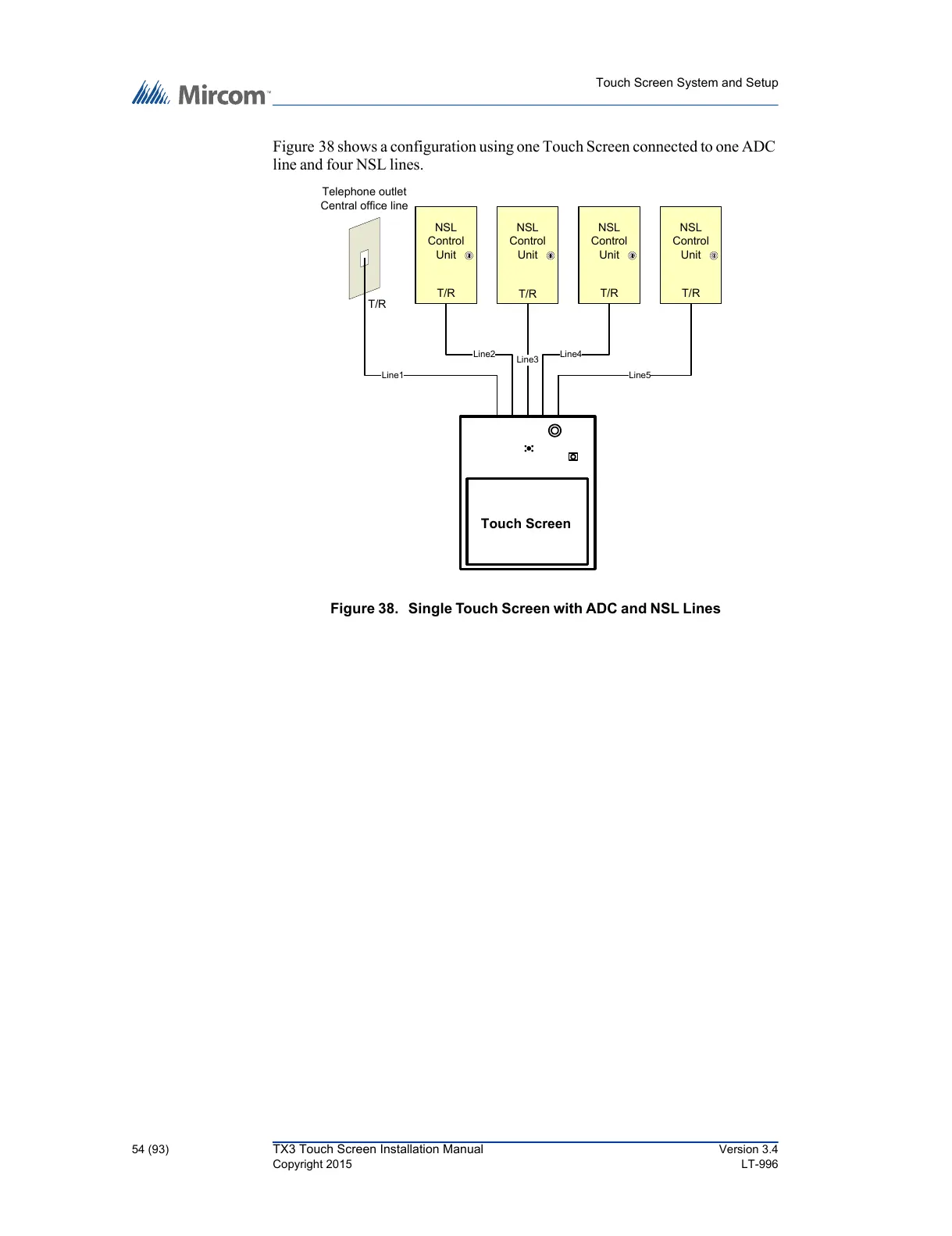

Figure 38 shows a configuration using one Touch Screen connected to one ADC
line and four NSL lines.
Figure 38. Single Touch Screen with ADC and NSL Lines
Line2
Line3
Line4
Line5
NSL
Control
Unit
NSL
Control
Unit
NSL
Control
Unit
NSL
Control
Unit
Line1
Telephone outlet
Central office line
T/R
T/R
T/R T/R
T/R
Touch Screen
