Enclosure Installation
2.4 Installing the 15” Touch Screen Flush Mount
Enclosure

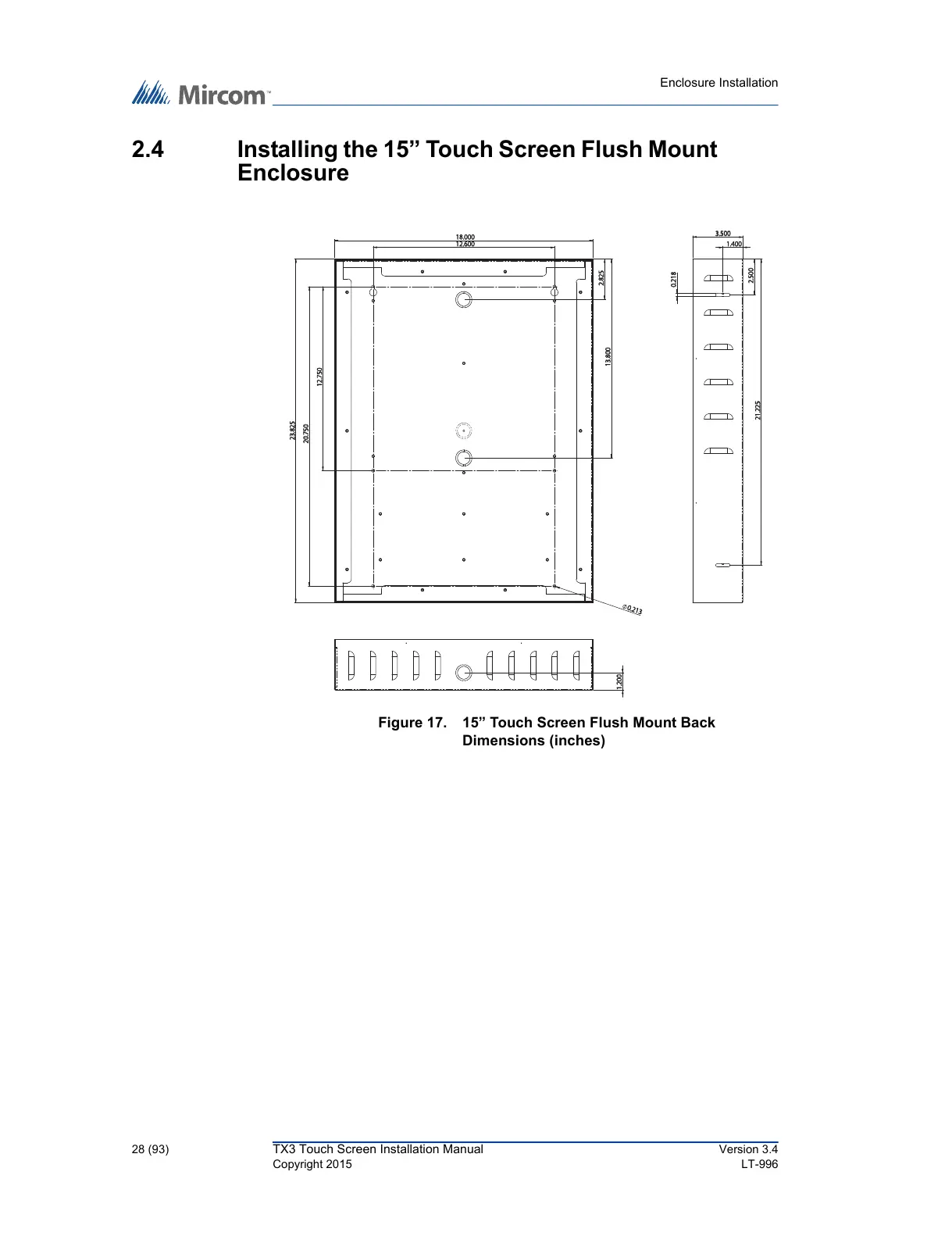

Figure 17. 15” Touch Screen Flush Mount Back
Dimensions (inches)
12.600
12.600
18.000
18.000
12.750
12.750
20.750
20.750
2.825
2.825
13.800
13.800
0.213
0.213
23.825
23.825
3.500
3.500
2.500
2.500
21.225
21.225
0.218
0.218
1.400
1.400
1.200
1.200
