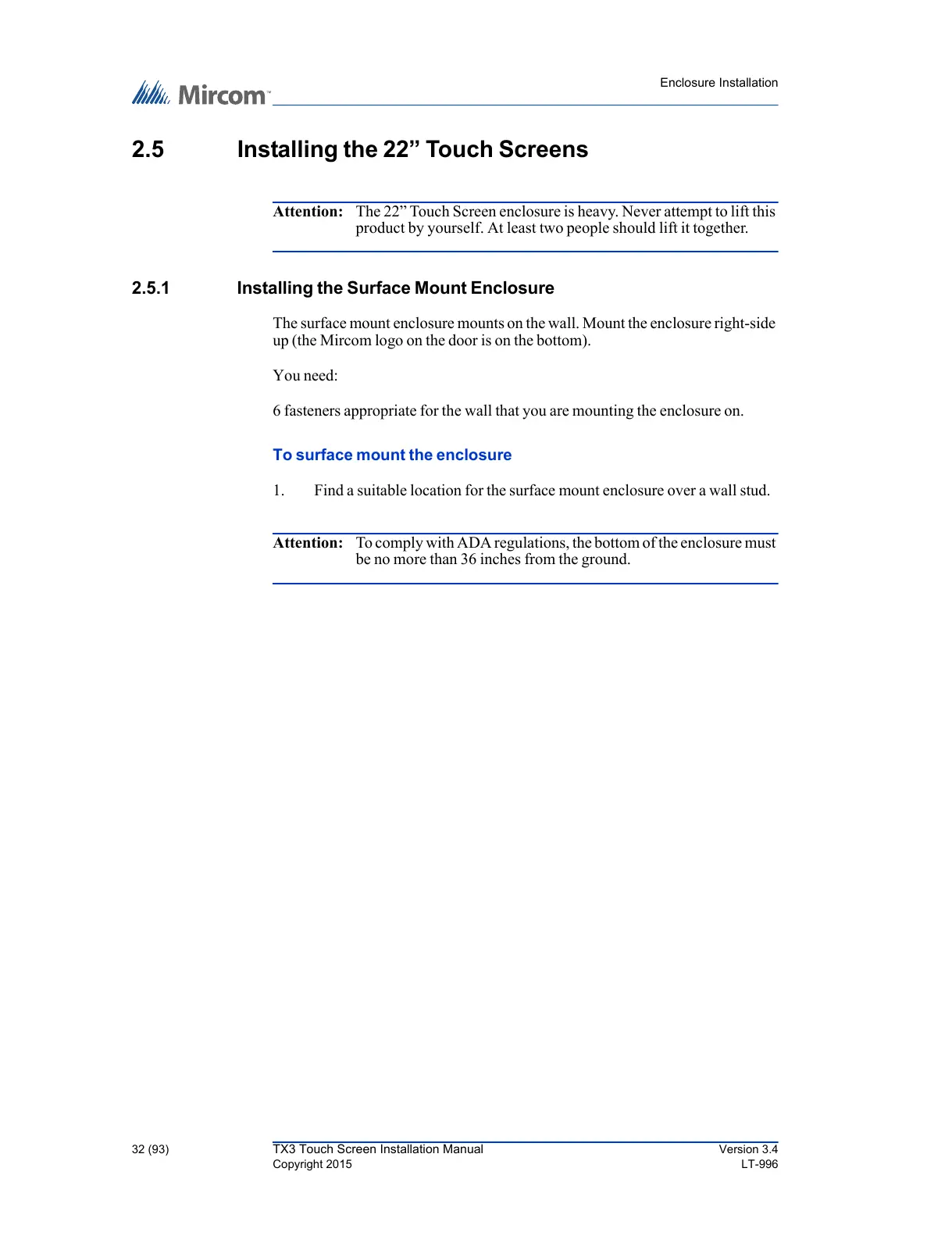

Enclosure Installation
2.5 Installing the 22” Touch Screens
Attention: The 22” Touch Screen enclosure is heavy. Never attempt to lift this
product by yourself. At least two people should lift it together.
2.5.1 Installing the Surface Mount Enclosure
The surface mount enclosure mounts on the wall. Mount the enclosure right-side
up (the Mircom logo on the door is on the bottom).
You need:
6 fasteners appropriate for the wall that you are mounting the enclosure on.
To surface mount the enclosure
1. Find a suitable location for the surface mount enclosure over a wall stud.
Attention: To comply with ADA regulations, the bottom of the enclosure must
be no more than 36 inches from the ground.
