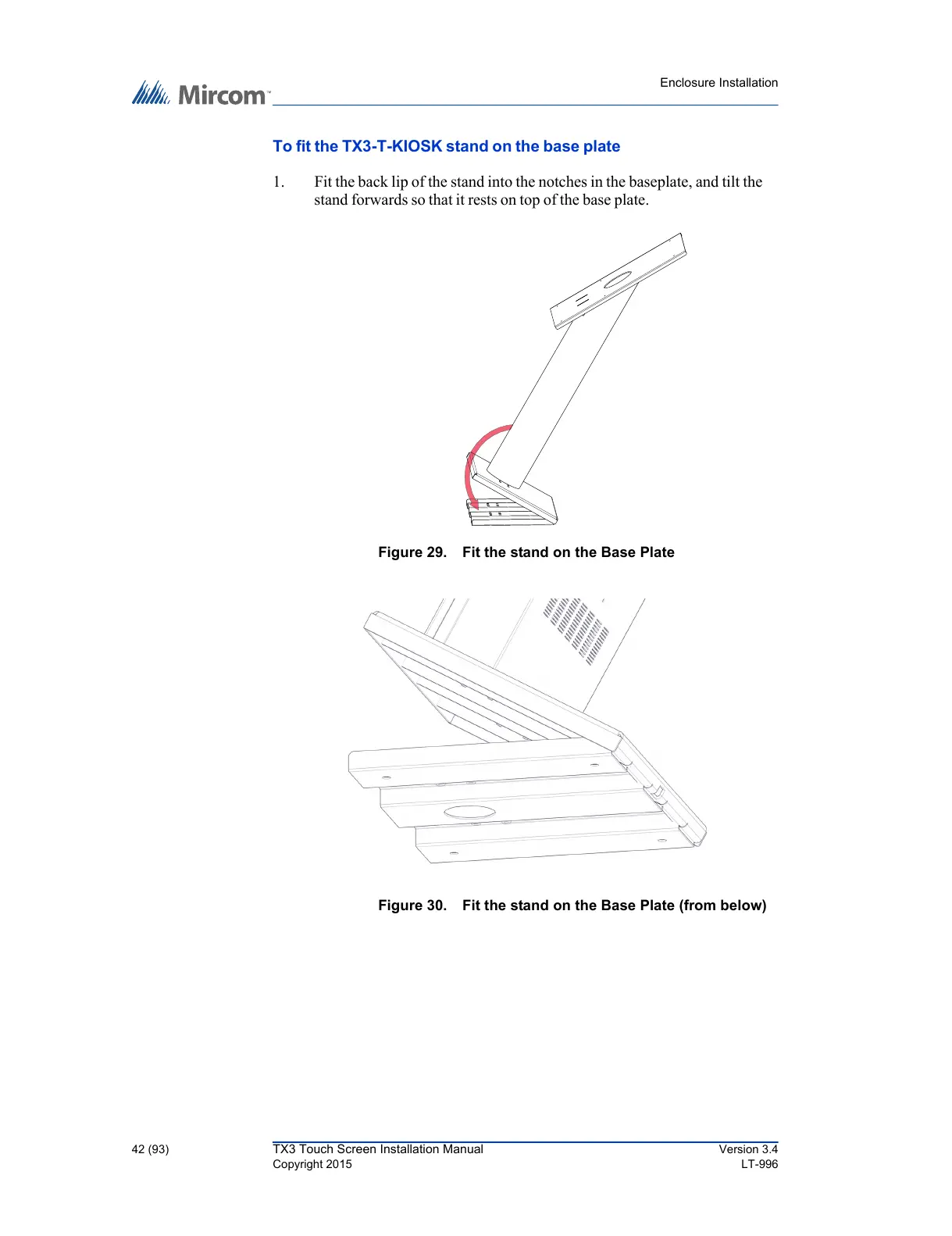

42 (93) TX3 Touch Screen Installation Manual Version 3.4

Enclosure Installation

To fit the TX3-T-KIOSK stand on the base plate

1. Fit the back lip of the stand into the notches in the baseplate, and tilt the

stand forwards so that it rests on top of the base plate.

Figure 29. Fit the stand on the Base Plate

Figure 30. Fit the stand on the Base Plate (from below)
