Enclosure Installation
Version 3.4 TX3 Touch Screen Installation Manual 41 (93)
LT-996 Copyright 2015

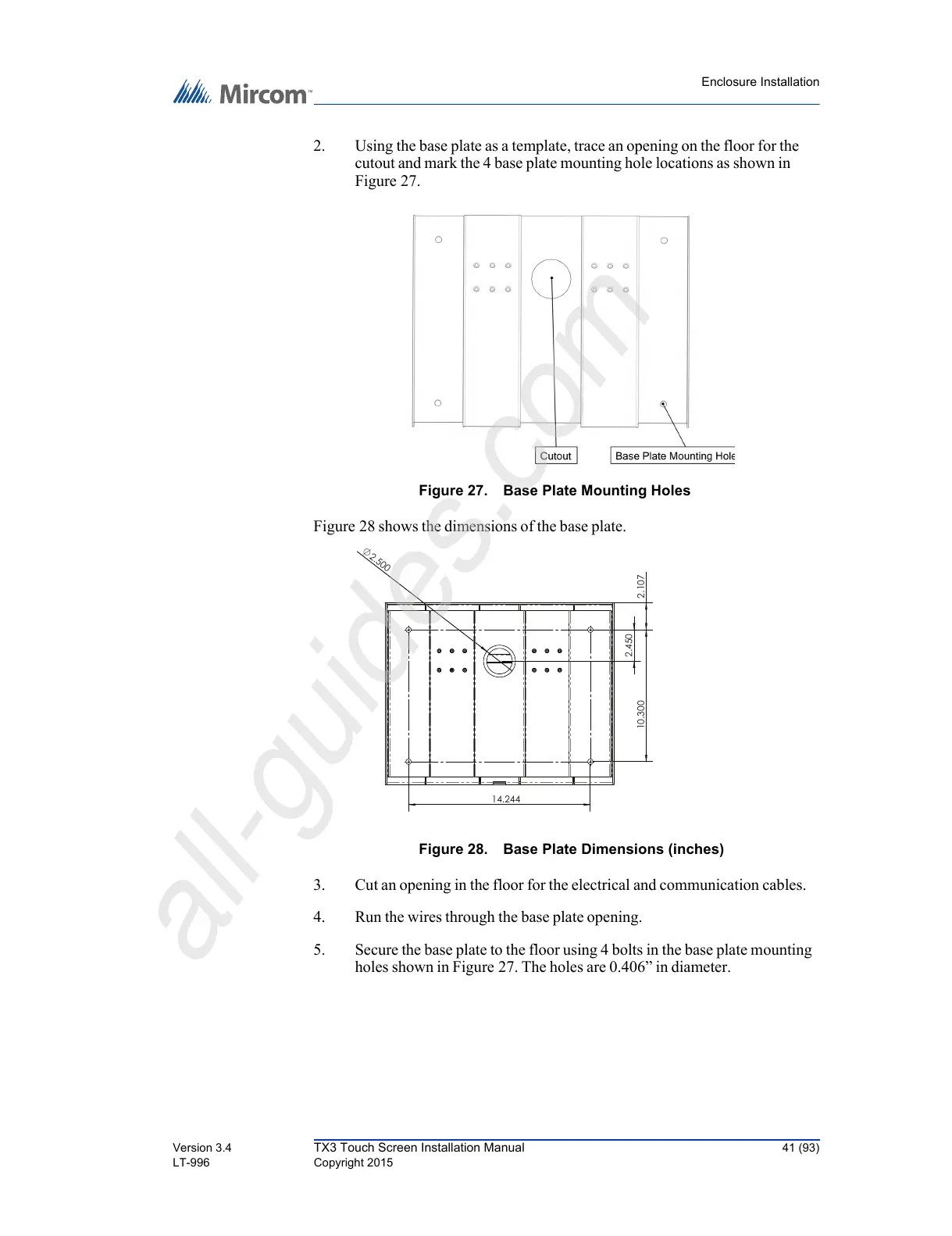

2. Using the base plate as a template, trace an opening on the floor for the
cutout and mark the 4 base plate mounting hole locations as shown in
Figure 27.
Figure 27. Base Plate Mounting Holes
Figure 28 shows the dimensions of the base plate.
Figure 28. Base Plate Dimensions (inches)
3. Cut an opening in the floor for the electrical and communication cables.
4. Run the wires through the base plate opening.
5. Secure the base plate to the floor using 4 bolts in the base plate mounting
holes shown in Figure 27. The holes are 0.406” in diameter.
