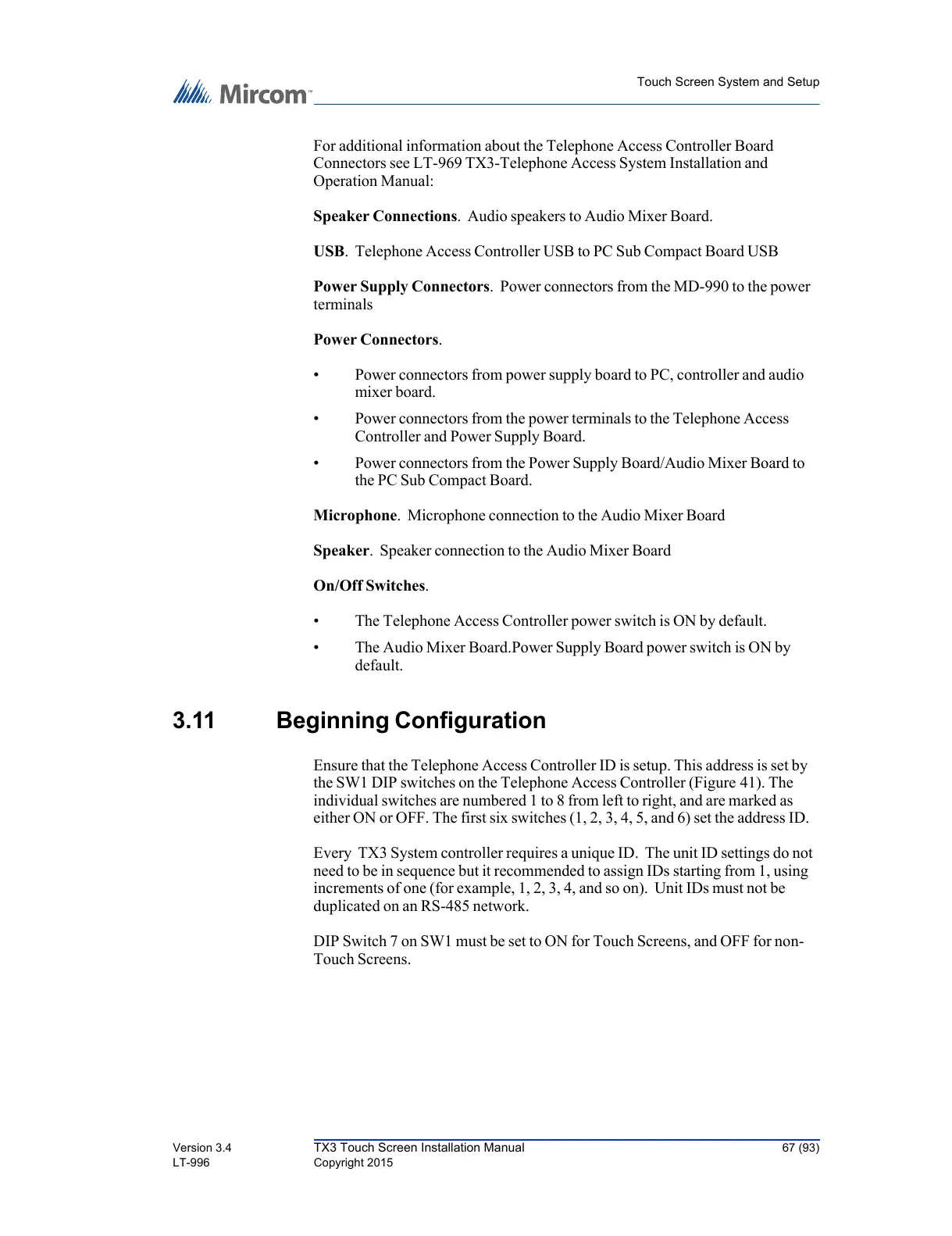

Touch Screen System and Setup
Version 3.4 TX3 Touch Screen Installation Manual 67 (93)
LT-996 Copyright 2015
For additional information about the Telephone Access Controller Board
Connectors see LT-969 TX3-Telephone Access System Installation and
Operation Manual:
Speaker Connections. Audio speakers to Audio Mixer Board.
USB. Telephone Access Controller USB to PC Sub Compact Board USB
Power Supply Connectors. Power connectors from the MD-990 to the power
terminals
Power Connectors.
• Power connectors from power supply board to PC, controller and audio
mixer board.
• Power connectors from the power terminals to the Telephone Access
Controller and Power Supply Board.
• Power connectors from the Power Supply Board/Audio Mixer Board to
the PC Sub Compact Board.
Microphone. Microphone connection to the Audio Mixer Board
Speaker. Speaker connection to the Audio Mixer Board
On/Off Switches.
• The Telephone Access Controller power switch is ON by default.
• The Audio Mixer Board.Power Supply Board power switch is ON by
default.
3.11 Beginning Configuration
Ensure that the Telephone Access Controller ID is setup. This address is set by
the SW1 DIP switches on the Telephone Access Controller (Figure 41). The
individual switches are numbered 1 to 8 from left to right, and are marked as
either ON or OFF. The first six switches (1, 2, 3, 4, 5, and 6) set the address ID.
Every TX3 System controller requires a unique ID. The unit ID settings do not
need to be in sequence but it recommended to assign IDs starting from 1, using
increments of one (for example, 1, 2, 3, 4, and so on). Unit IDs must not be
duplicated on an RS-485 network.
DIP Switch 7 on SW1 must be set to ON for Touch Screens, and OFF for non-
Touch Screens.
