Microm TX3 Series - Figure 22 22 Touch Screen Flush Mount Dimensions (Inches)

36 (93) TX3 Touch Screen Installation Manual Version 3.4
Copyright 2015 LT-996
Enclosure Installation

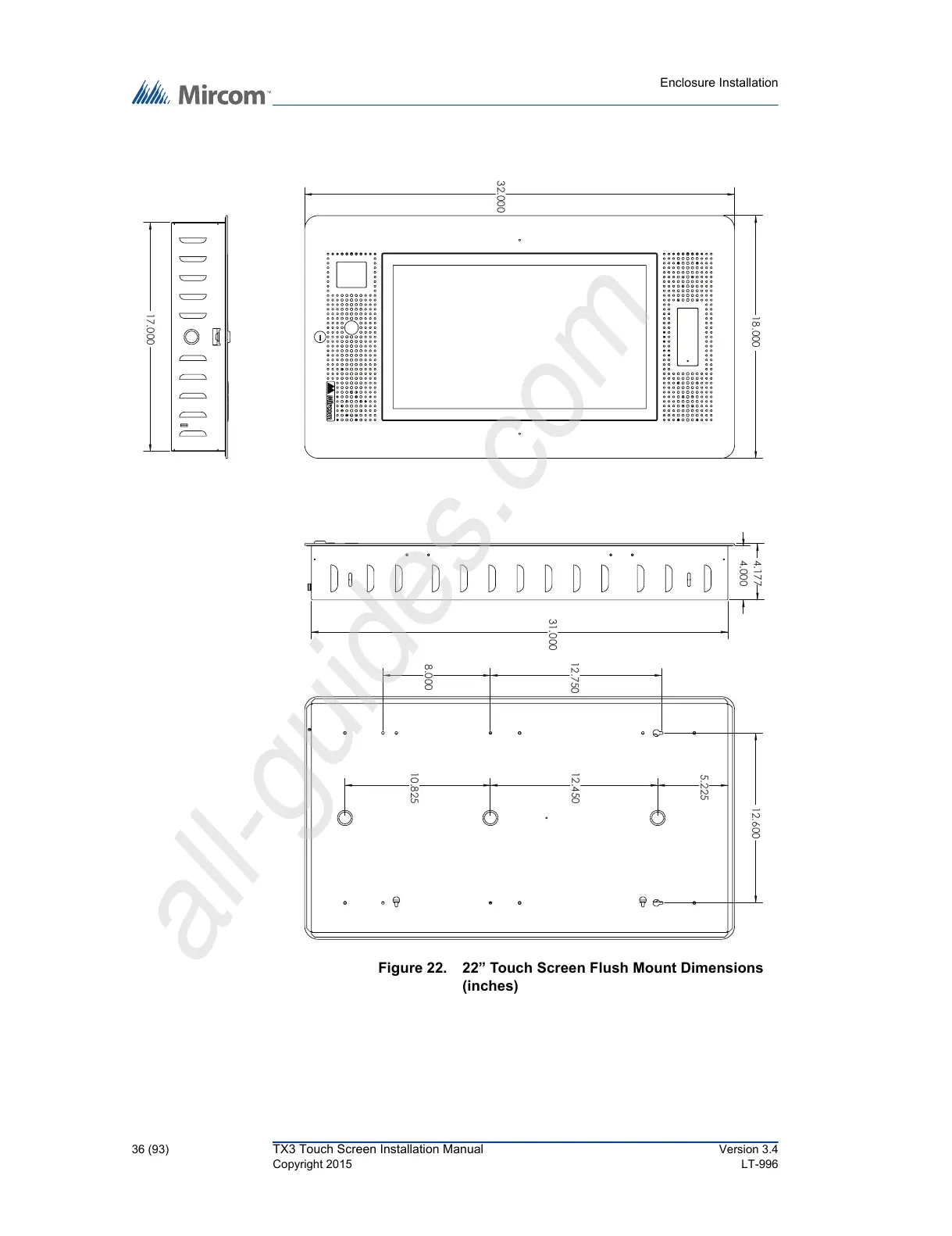

Figure 22. 22” Touch Screen Flush Mount Dimensions
(inches)
32.000
18.000
4.000 4.177
31.000
12.600
12.750
8.000
12.450 10.825
5.225
17.000
