Enclosure Installation
Version 3.4 TX3 Touch Screen Installation Manual 35 (93)
LT-996 Copyright 2015

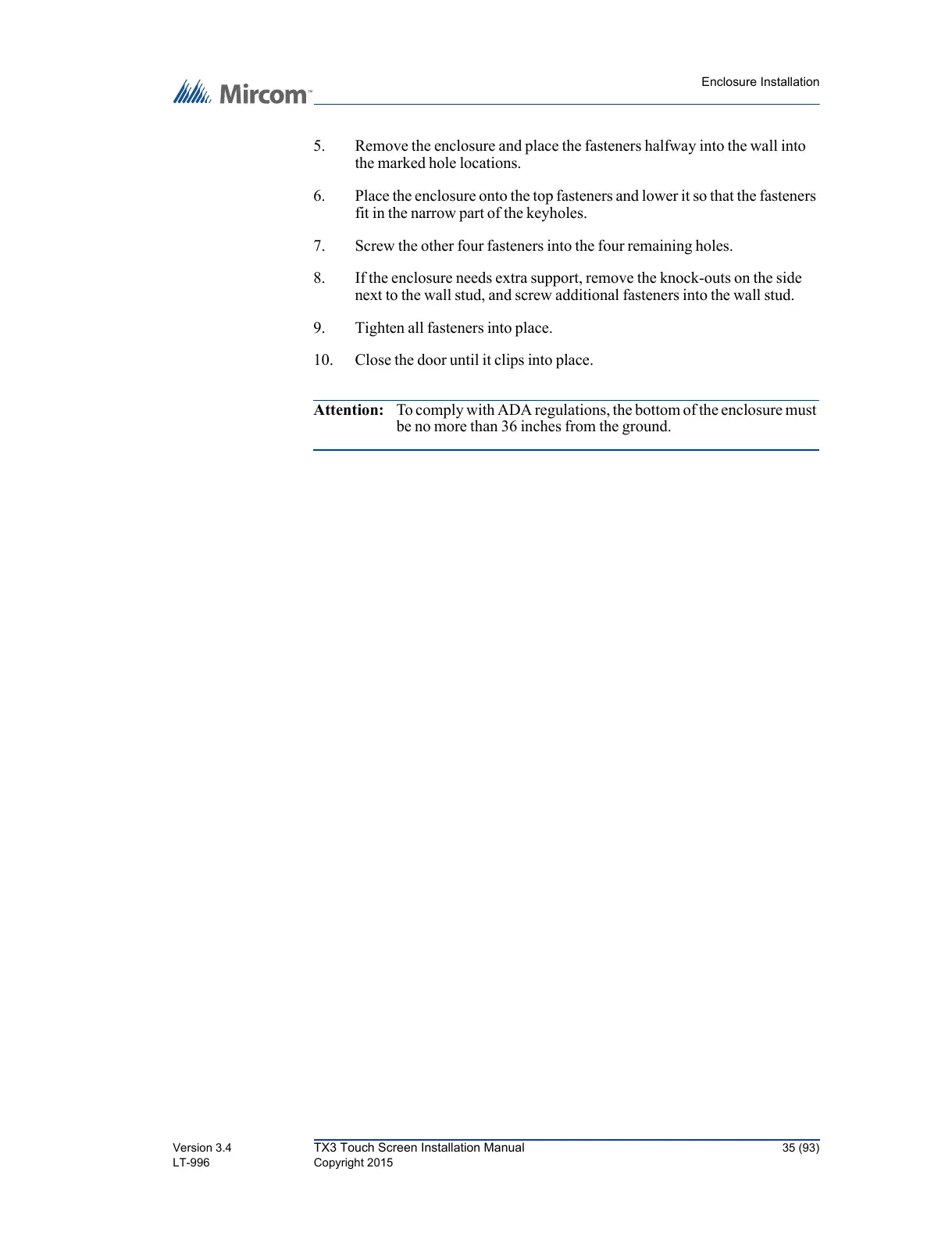

5. Remove the enclosure and place the fasteners halfway into the wall into
the marked hole locations.
6. Place the enclosure onto the top fasteners and lower it so that the fasteners
fit in the narrow part of the keyholes.
7. Screw the other four fasteners into the four remaining holes.
8. If the enclosure needs extra support, remove the knock-outs on the side
next to the wall stud, and screw additional fasteners into the wall stud.
9. Tighten all fasteners into place.
10. Close the door until it clips into place.
Attention: To comply with ADA regulations, the bottom of the enclosure must
be no more than 36 inches from the ground.
