38 (93) TX3 Touch Screen Installation Manual Version 3.4
Copyright 2015 LT-996
Enclosure Installation
2.6 Assembling the TX3-T-KIOSK Stand

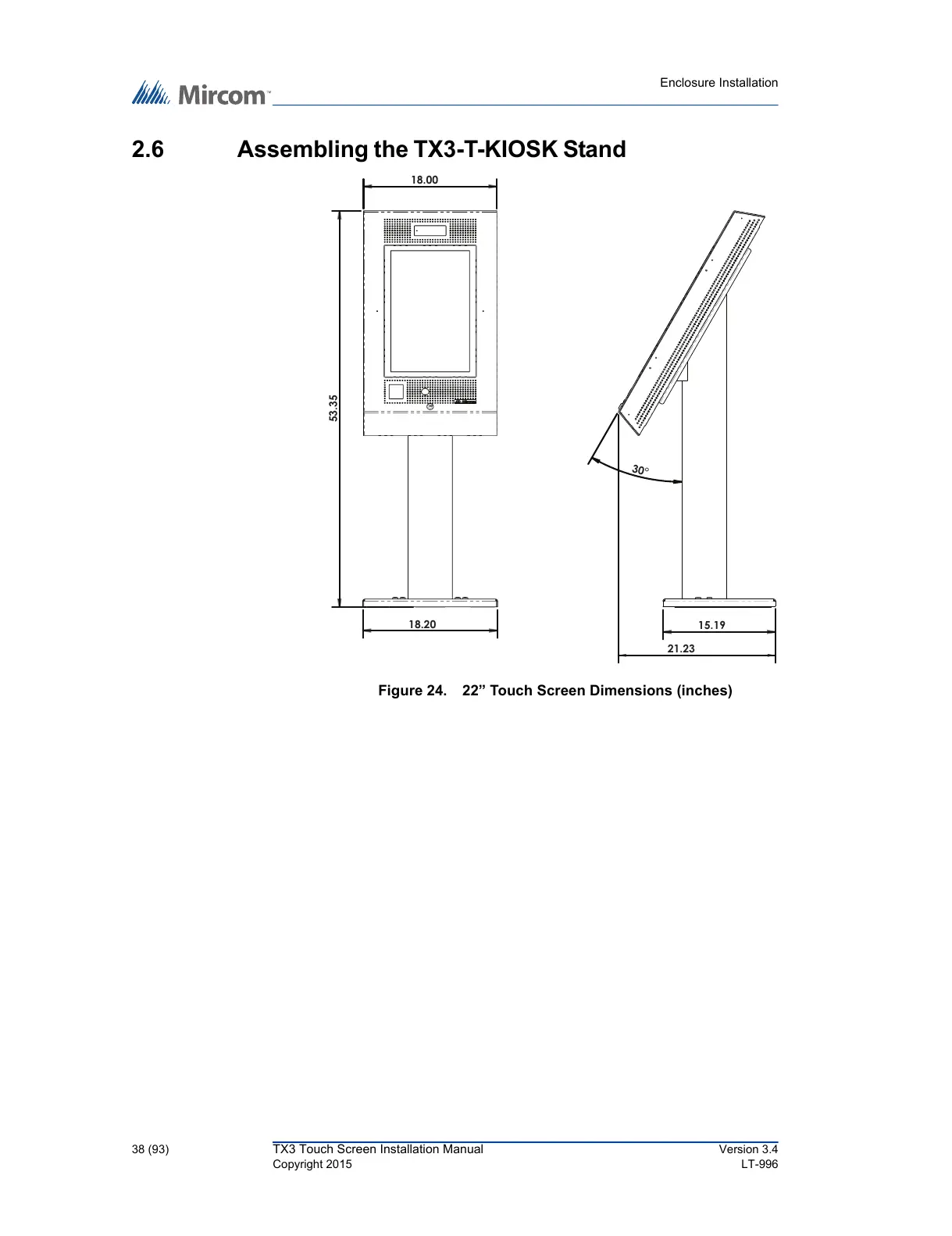

Figure 24. 22” Touch Screen Dimensions (inches)
18.20
53.35
18.00
30°
15.19
21.23
