Touch Screen System and Setup
Version 3.4 TX3 Touch Screen Installation Manual 53 (93)
LT-996 Copyright 2015
3.1.1 Single Touch Screen

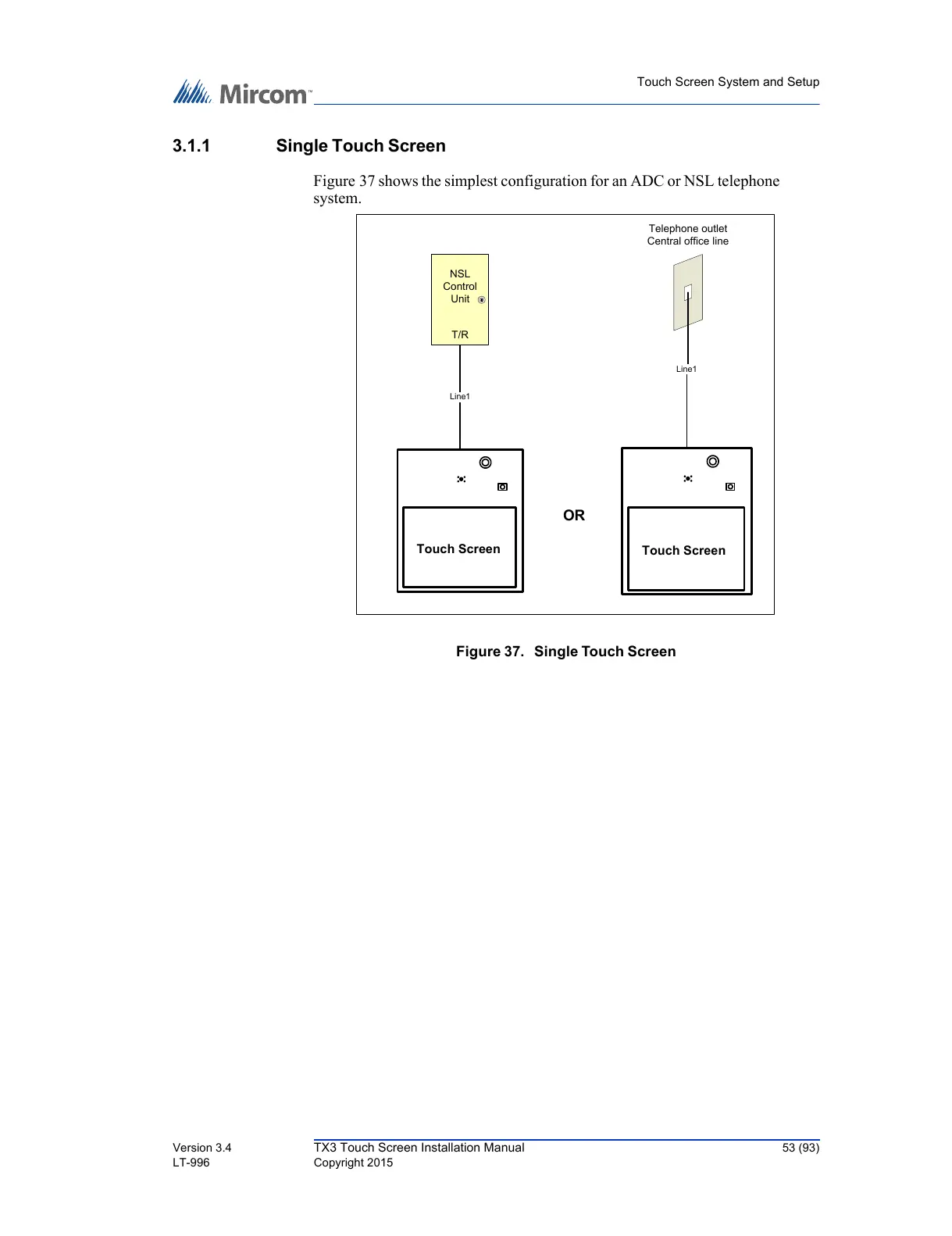

Figure 37 shows the simplest configuration for an ADC or NSL telephone
system.
Figure 37. Single Touch Screen
Line1
NSL
Control
Unit
T/R
Line1
Telephone outlet
Central office line
OR
Touch Screen
Touch Screen
