Touch Screen System and Setup
Version 3.4 TX3 Touch Screen Installation Manual 51 (93)
LT-996 Copyright 2015
3

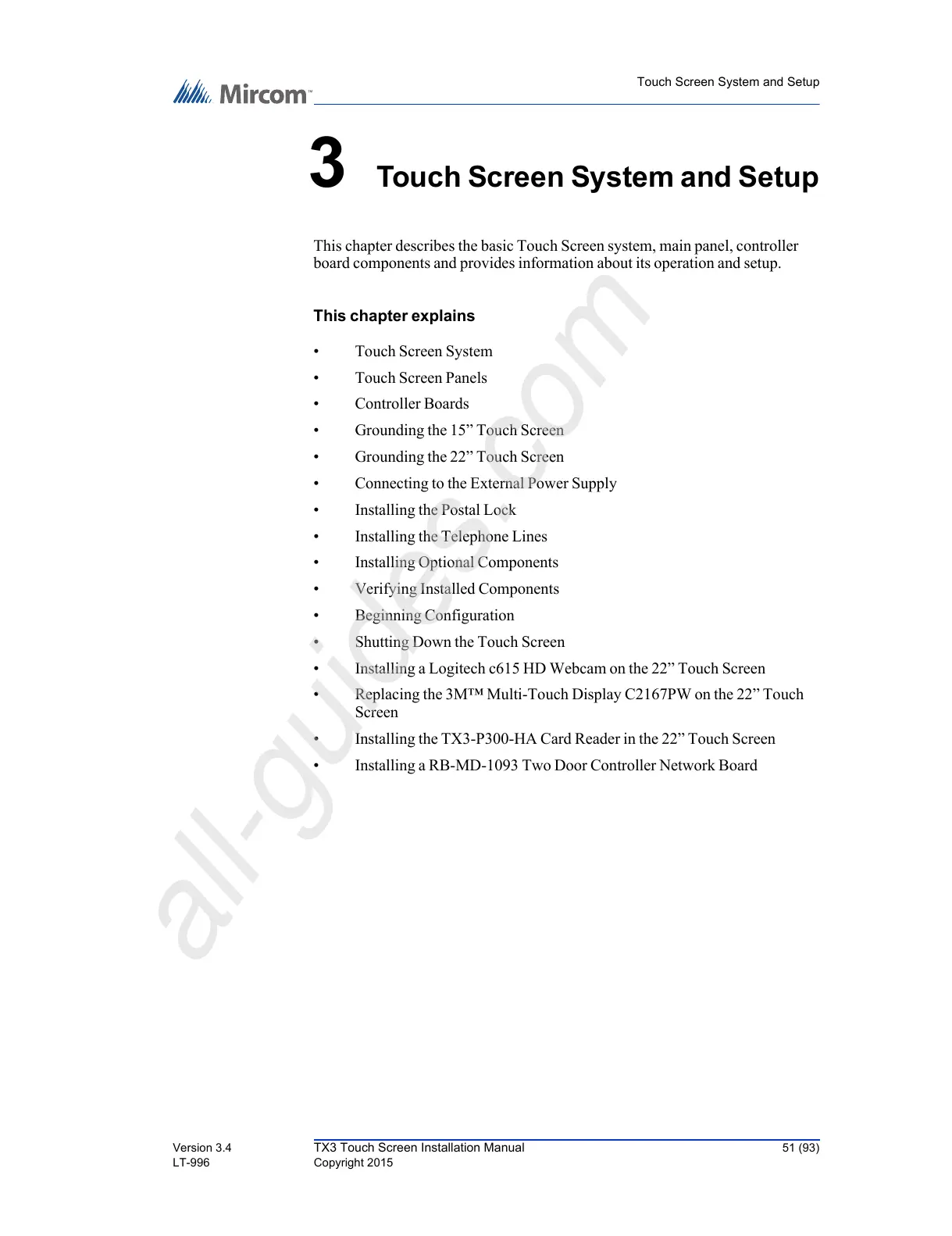

Touch Screen System and Setup
This chapter describes the basic Touch Screen system, main panel, controller
board components and provides information about its operation and setup.
This chapter explains
• Touch Screen System
• Touch Screen Panels
• Controller Boards
• Grounding the 15” Touch Screen
• Grounding the 22” Touch Screen
• Connecting to the External Power Supply
• Installing the Postal Lock
• Installing the Telephone Lines
• Installing Optional Components
• Verifying Installed Components
• Beginning Configuration
• Shutting Down the Touch Screen
• Installing a Logitech c615 HD Webcam on the 22” Touch Screen
• Replacing the 3M™ Multi-Touch Display C2167PW on the 22” Touch
Screen
• Installing the TX3-P300-HA Card Reader in the 22” Touch Screen
• Installing a RB-MD-1093 Two Door Controller Network Board
