Microm TX3 Series - Figure 26 Components of TX3-T-KIOSK

40 (93) TX3 Touch Screen Installation Manual Version 3.4
Copyright 2015 LT-996
Enclosure Installation
You will need:
• 4 bolts to attach the base plate to the floor. The bolts need to fit holes that
are 0.406” in diameter.

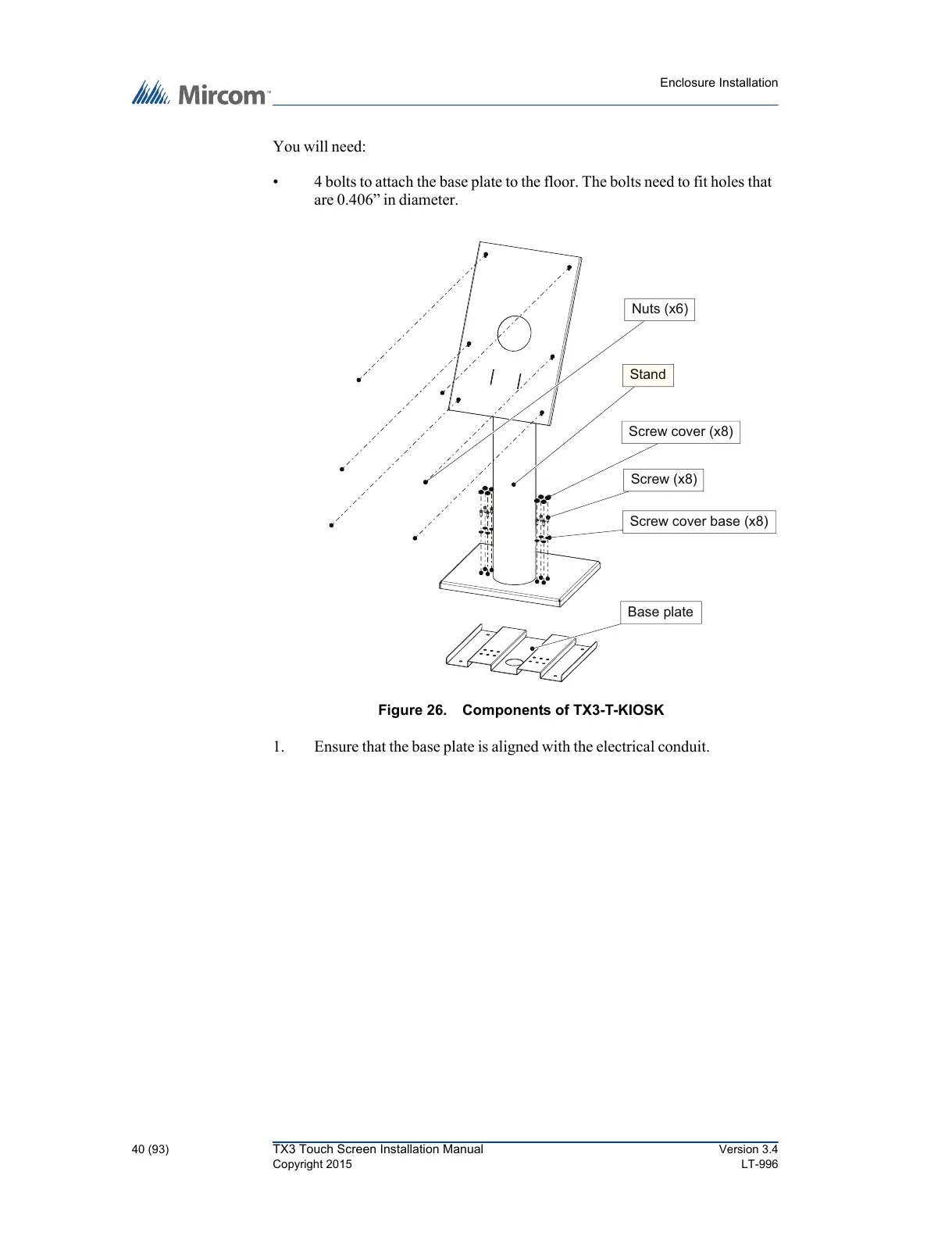

Figure 26. Components of TX3-T-KIOSK
1. Ensure that the base plate is aligned with the electrical conduit.
Base plate
Screw cover base (x8)
Screw (x8)
Screw cover (x8)
Stand
Nuts (x6)
