3.2 Touch Screen Panels
3.2.1 15” Touch Screen Main Panel
On the Kiosk, the Touch Screen Panel is situated behind the front cover. To
access the panel, unlock the Touch Screen and pull open the front cover.
The 15” Touch Screen Panel contains the following main components as shown
in Figure 39:
• ON/OFF Switch
•USB Port
• Camera
•Postal Lock (optional)
• Microphone

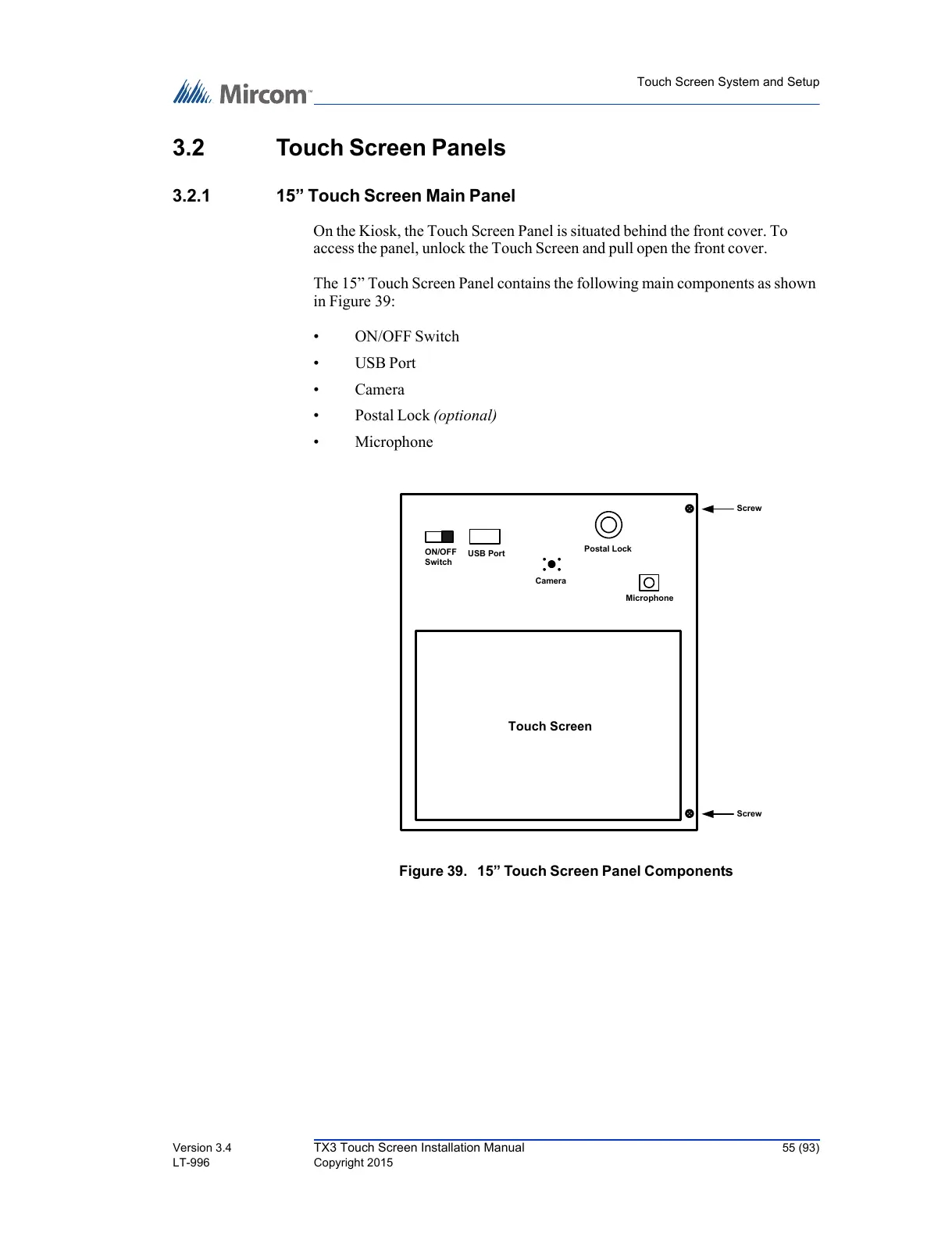

Figure 39. 15” Touch Screen Panel Components
ON/OFF
Switch
USB Port
Camera
Postal Lock
Microphone
Touch Screen
Screw
Screw
