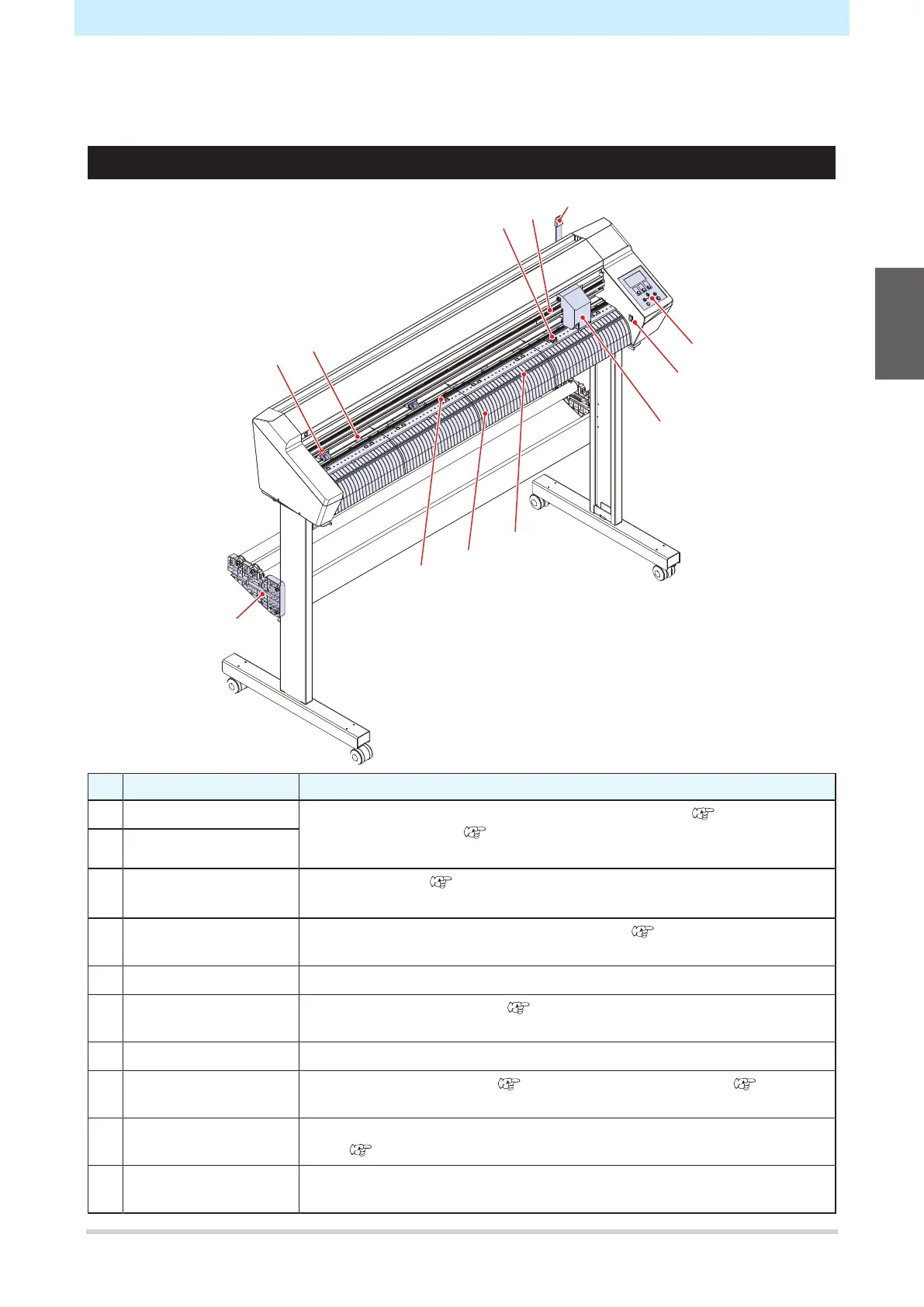

Chapter 1 Before Using This Machine
23
1.2 Part Names and Functions
Front
1
2
4
5
6
7
8
3
9
10
11
12
No. Name Outline
1 Pinch rollers The pinch rollers and grit rollers grip the sheet to feed it. "Pinch Rollers
and Grit Rollers"(P. 28) "Moving the Pinch Rollers"(P. 55)
2 Grit roller
3 Roll stay Holds the roll bar. "Loading a Roll Sheet (CG-100/130AR)"(P. 52)
(The legs are options available separately for the CG-60AR.)
4 Pen line Area in which printing and cutting is performed. "Pen Line Rubber
Replacement"(P. 148)
5 Platen The sheet is moved along the platen.
6 Cutting slot Used to cut sheets manually. "Separating Sheets (Manual
Cutting)"(P. 75)
7 Carriage Consists of a cutter unit for moving, raising, and lowering the pen and cutter.
8 Power supply switch Turns the power on and off. "Turning On the Power"(P. 38) "Turning
Off the Power"(P. 38)
9 Operating panel Includes operating keys and displays indicating various settings and other
items. "Operating panel"(P. 30)
10 Clamp lever Pulling the clamp lever forward secures the sheet. Pushing the clamp lever
back releases the sheet.
