Chapter 2 Cutting
52
12
Press to select the number of pinch rollers to be used.
If [ROLL. SELECT] is set to [ON], select the number of pinch rollers to use. "Setting the
Number of Pinch Rollers to Use"(P. 56)
13
Start sheet detection.
If [DUMMY CUT] is set to [ON], a dummy cut is performed after sheet detection is complete.
"DUMMY CUT"(P. 140)
14
Use [FEED] to pull out the length of sheet to be used. "Sheet Feed"(P. 119)
Before using the roll sheet, make sure that there is sufficient sheet for the length to be
used. Feeding the sheet reduces offset when cutting and also allows you to check in
advance that the sheet is not askew.

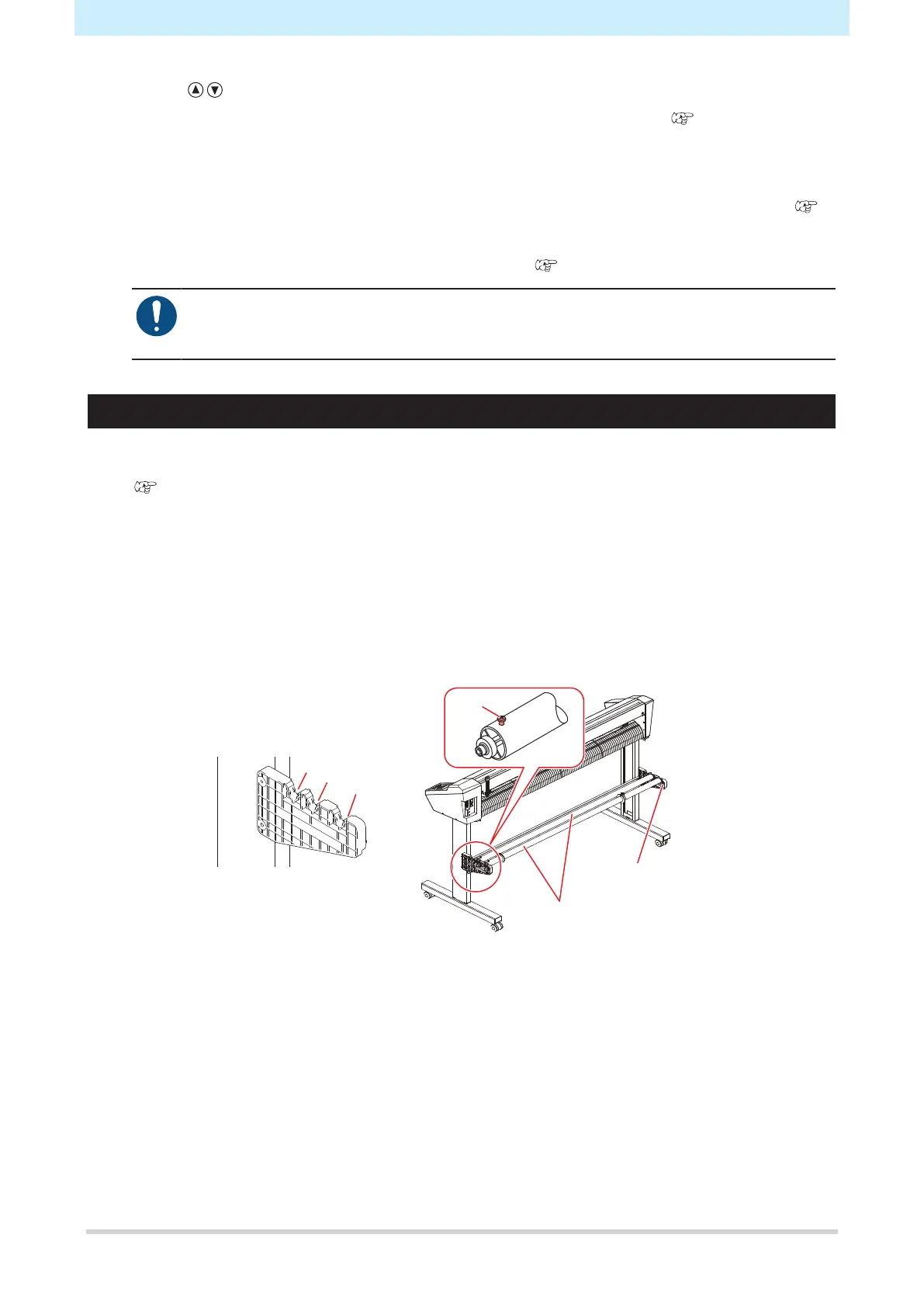

Loading a Roll Sheet (CG-100/130AR)
When using a roll sheet, the roll stays must be attached.
For more information on how to attach the roll stays, refer to the assembly instructions provided or see the
video ( "Assembling the Legs and Sheet Basket"(P. 16)).
1
Mount the roll bars on the roll stay assembly.
Mount the roll bars with the ends with lugs at the right-hand side, when viewed from the rear of the
machine. Mount the roll bars in the numbered slots as follows to suit the outer diameter of the roll
sheet:
For roll sheet with a diameter of 75 mm or more, mount in slots 1 and 3.
For roll sheet with a diameter of less than 75 mm, mount in slots 2 and 3.
1
2
3
Roll bars
Roll stay assembly
Lug
