Chapter 2 Cutting
69

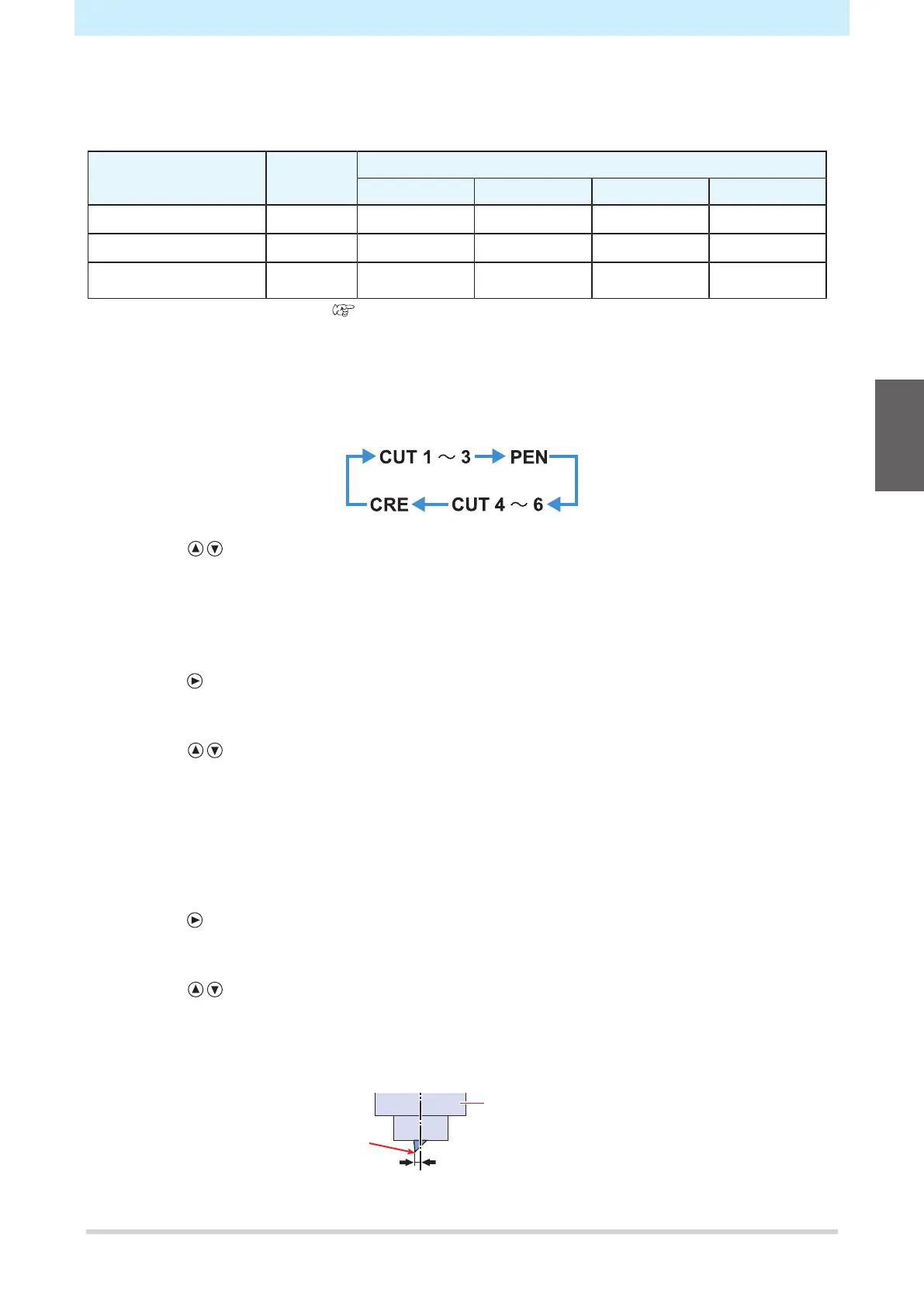

2.5 Setting Tool Conditions
Set the cutting speed and pressure to match the type of sheet and tools used.
Tool Item
SPEED PRESS OFFSET HALF
Cut CUT1 to 6 Cutting speed Cut pressure Offset Half cut
Print PEN Printing speed Pen pressure - -
Crease
*1
CRE Speed Pressure - -
*1. The creasing tool is optional. "Using the Creasing Tool"(P. 67)
1
Press the [TOOL] key on the local mode screen.
2
Press the [TOOL] key to select the required tool conditions.
• Pressing the [TOOL] key toggles through the tool conditions in the following sequence.
3
Press to set the speed (SPEED).
• Sets the speed for moving the tool when cutting or pen writing.
• 1 to 10 cm/s (in 1 cm/s steps)
15 to 70 cm/s (in 5 cm/s steps)
73 cm/s
4
Press .
• The cursor moves to PRESS.
5
Press to set the pressure (PRESS).
• Sets the pressure for cutting or pen writing.
• Cutting/creasing: 10 g to 550 g
Pen: 10 to 150 g
10 to 20 g (in 2 g steps)
25 to 100 g (in 5 g steps)
110 to 550 g (in 10 g steps)
6
Press . (for cutting only)
• The cursor moves to OFFSET.
7
Press to set the offset (OFFSET). (for cutting only)
• Sets the distance from the center of the cutter holder to the cutting blade.
• This is not displayed on the LCD if set to "0".
• 0 (0.00) to 250 (2.50 mm) (in 0.05 mm steps)
Cutter holder
Cutting blade
Offset
2
To Next Page
