MIMAKI CG-AR Series User Manual

Chapter 2 Cutting
70
8
Press . (for cutting only)
• The cursor moves to the half cut setting (HALF).
9
Press to enable or disable half cut. (for cutting only)

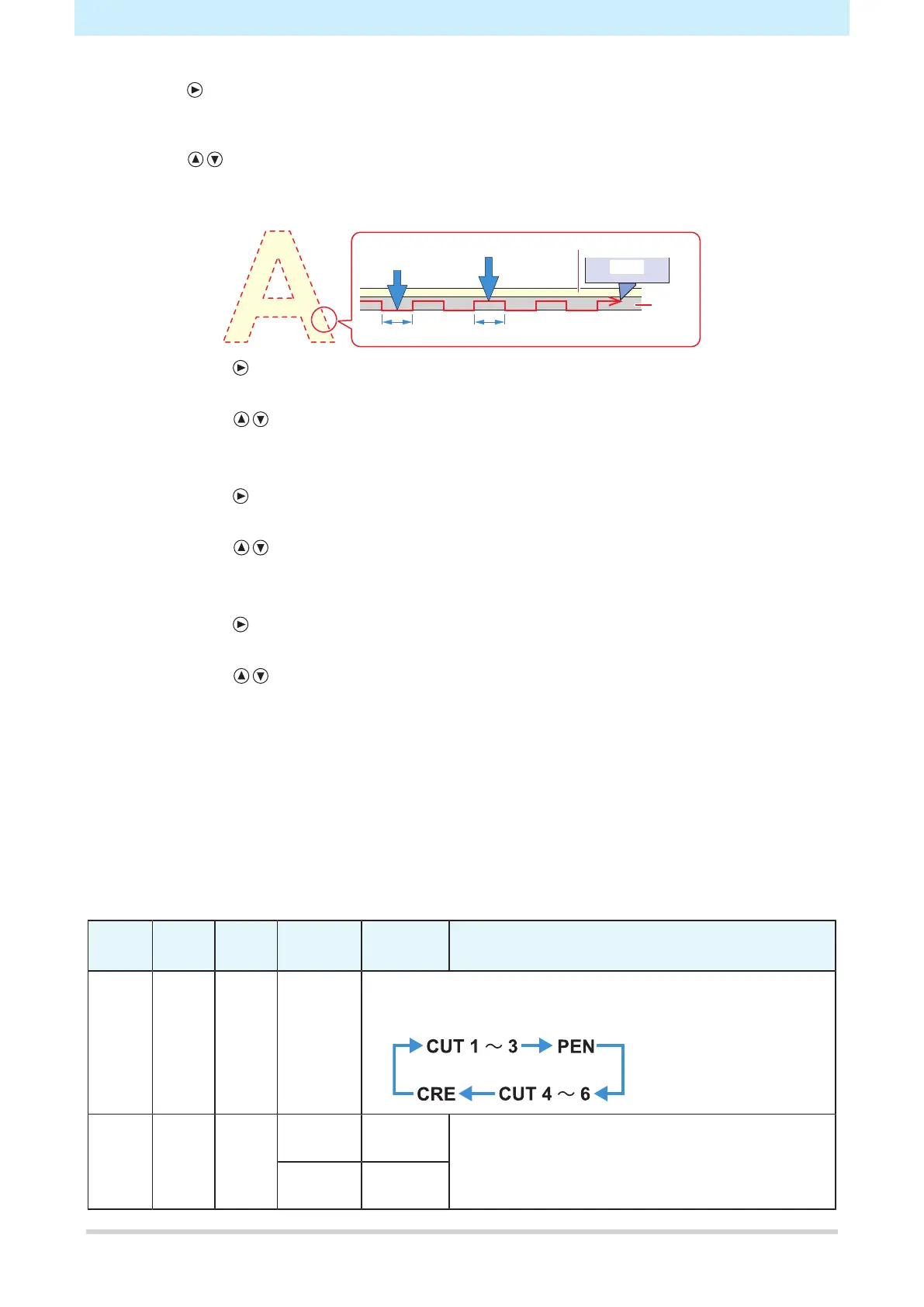

• When enabled, a dotted line is cut without cutting out the base paper. Set the following items when
this is enabled.
[Pressure]
Cutter
[H-Leng][C-Leng]
[Half Cut Pressure]
Label film
Base
paper
(1) Press .
• The cursor moves to the half cut pressure setting (H-PRES).
(2) Press to set the half cut pressure.
• Sets the pressure for the uncut portions when using half cut.
• 0 to 300 g (in 5 g steps)
(3) Press .
• The cursor moves to the uncut length setting (H-LENG).
(4) Press to set the uncut portion length.
• Sets the uncut portion length when using half cut.
• 0.1 to 5.0 mm (in 0.1 mm steps)
(5) Press .
• The cursor moves to the cut length setting (C-LENG).
(6) Press to set the cut portion length.
• Sets the cut portion length when using half cut.
• 5 to 150 mm
5 to 20 mm (in 1 mm steps)
20 to 150 mm (in 5 mm steps)
10
Press the [ENTER/HOLD] key.
• The settings are entered and the system returns to local mode.
• The settings are retained even when the power is turned off.
l
Settings List
Item Messag
e
Tool Setting Step size Outline
Tool TOOL Cutter/
pen/
creasin
g
*1
CUT1 to
6/PEN/
CRE
• Press the key repeatedly to change the tool condition in the
sequence shown below.
Speed SPEE
D
Cutter/
pen/
creasin
g
*1
1 to 10
cm/s
1 cm/s • Sets the speed for cutting, creasing, or pen writing.
15 to 73
cm/s
5 cm/s
