Chapter 3 Cutting Data with Register Marks
80
3.2 Creating Register Marks

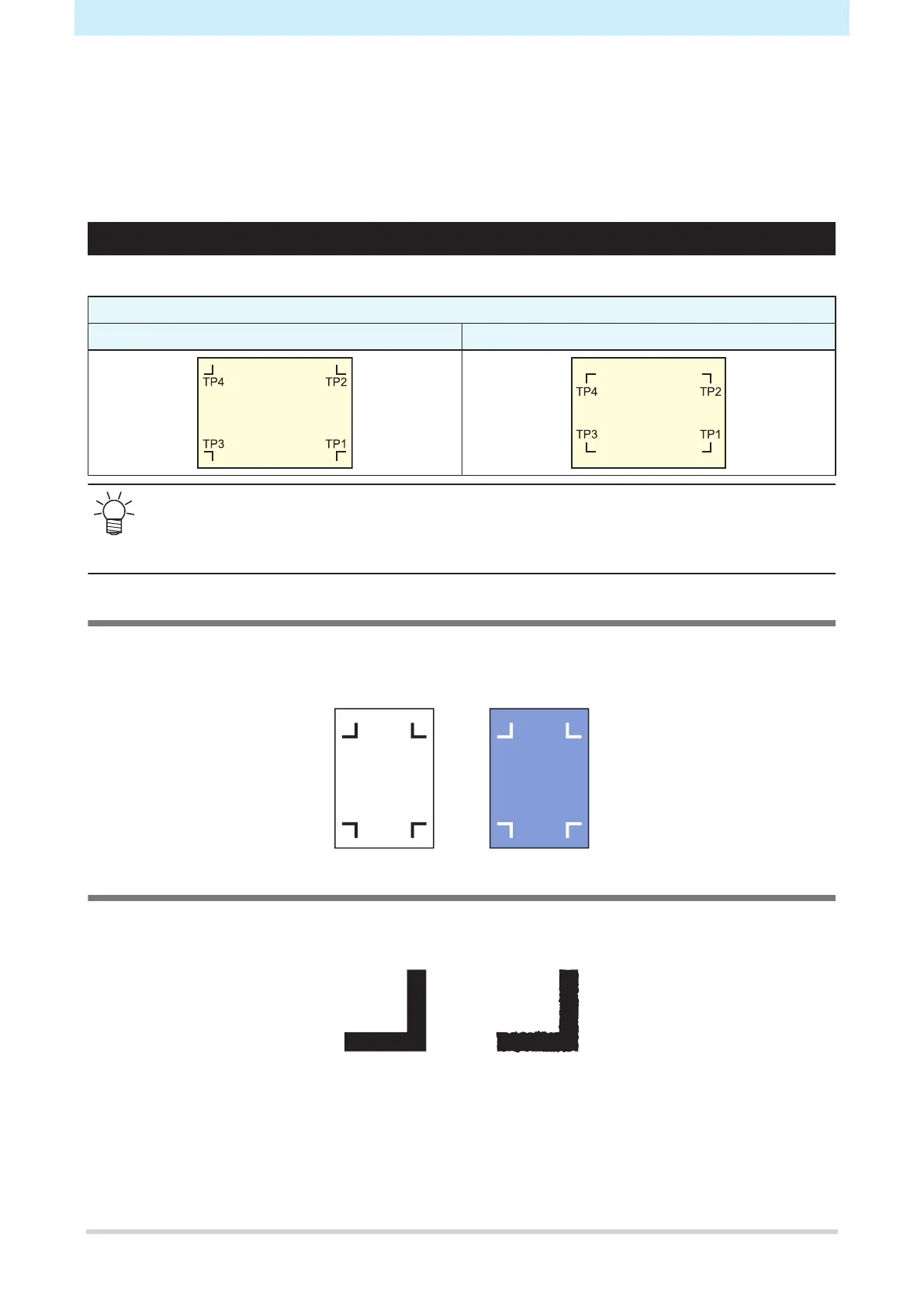

Printing image data with "register marks" can increase cutting accuracy and quality. There are some
limitations to register marks. Read the following thoroughly before creating register marks.
Trimming register marks cannot be used with this machine.
Register Marks
The following two types of register marks can be used with this machine:
Mark shape
Type 1 Type 2
• Use mark 4 (TP4) to perform trapezoidal corrections. Mark 4 can be skipped, but doing so will
reduce cutting accuracy.
Trapezoidal correction: Corrects any difference in feed rate between left and right edges of the
sheet.
Sheet and Register Mark Color
We recommend using a white sheet and black register marks. The machine may fail to detect register marks
in other colors.
Blurred Register Marks
Ensure that printed register marks are not blurred. If the register marks are blurred, the mark origins may be
incorrectly identified, or the machine may fail to detect the register marks.
