Chapter 1 Before Using This Machine
30

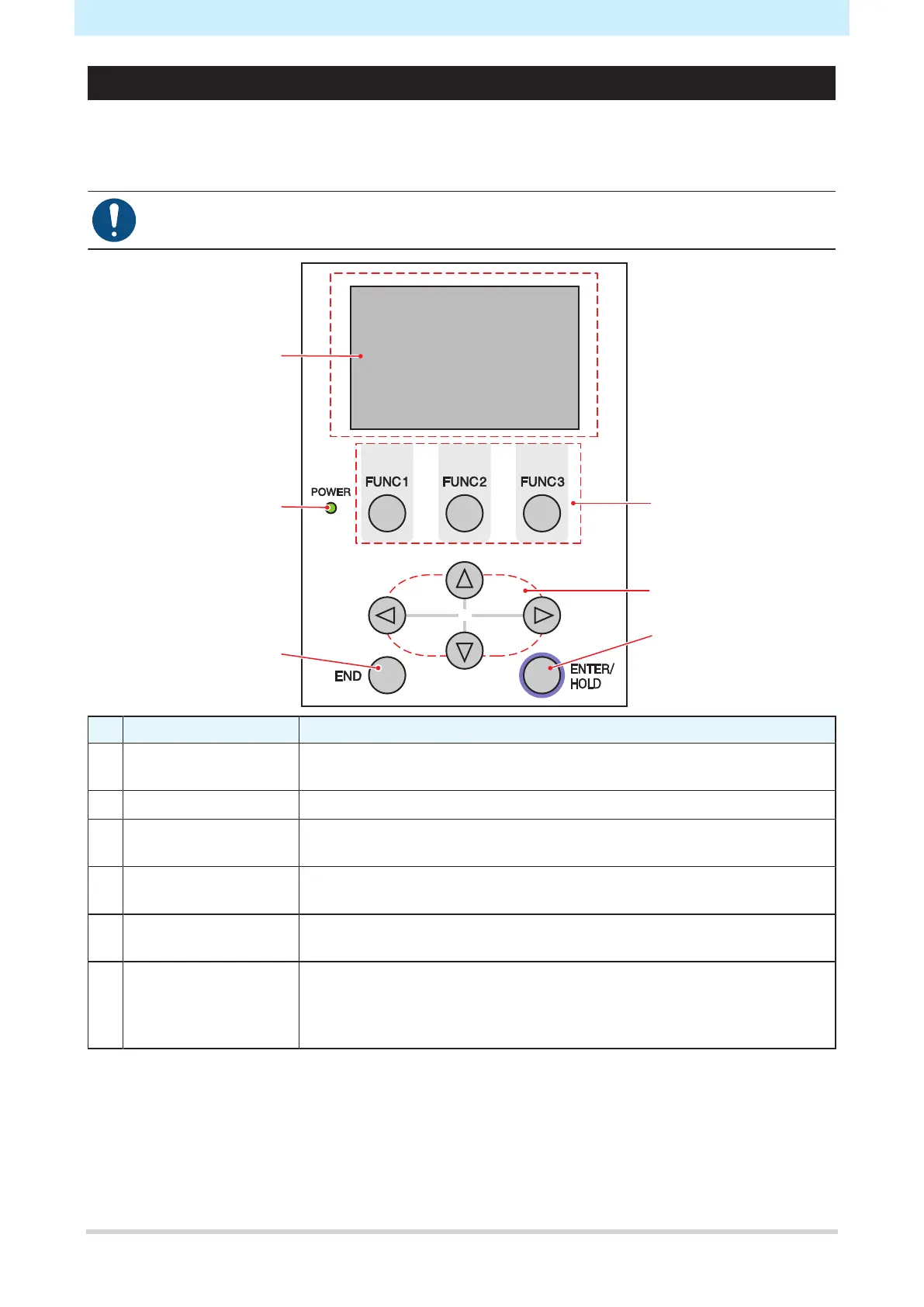

Operating panel
This is used to control the product and make/change settings.
can be used to operate the machine remotely from a computer or smartphone.
For more information, refer to online help.
• The keys are designed for finger input. Do not use sharp or pointed objects, as this may
damage the keys.
No. Name Outline
1 Display Displays tool conditions such as speed, pressure, and offset, tool
coordinates, functions, and error messages.
2 POWER lamp Lights up when the machine power is turned on.
3 END key Press to cancel the value entered or to return to the previous settings menu.
Also used to detect the sheet width.
4 FUNCTION keys Press to set individual functions. The functions assigned to FUNCTION 1 to
FUNCTION 3 are indicated at the bottom of the display.
5 Jog keys Press to move the carriage or sheet in the direction of the arrows or to select
settings.
6 ENTER/HOLD key Used to confirm operations and settings. Also used to correct sheet offsets
during cutting (or printing).
Pressing the [ENTER/HOLD] key on the "During remote control. [Ent]"
screen aborts , and returns machine control to the operating panel.
l
Note about jog keys
The functions of the jog keys change according to the situation.
To Next Page
