Chapter 2 Cutting
57
4
Press to select the number of pinch rollers to detect, then press the [ENTER/HOLD] key.
• Number of pinch rollers: 2, 3
5
Press to select the [ROLL.SELECT] setting, then press the [ENTER/HOLD] key.
• Settings: ON/OFF
• Select [ON] to display the screen for selecting the number of pinch rollers to be used in sheet
detection.
6
Press the [END] key several times to exit.

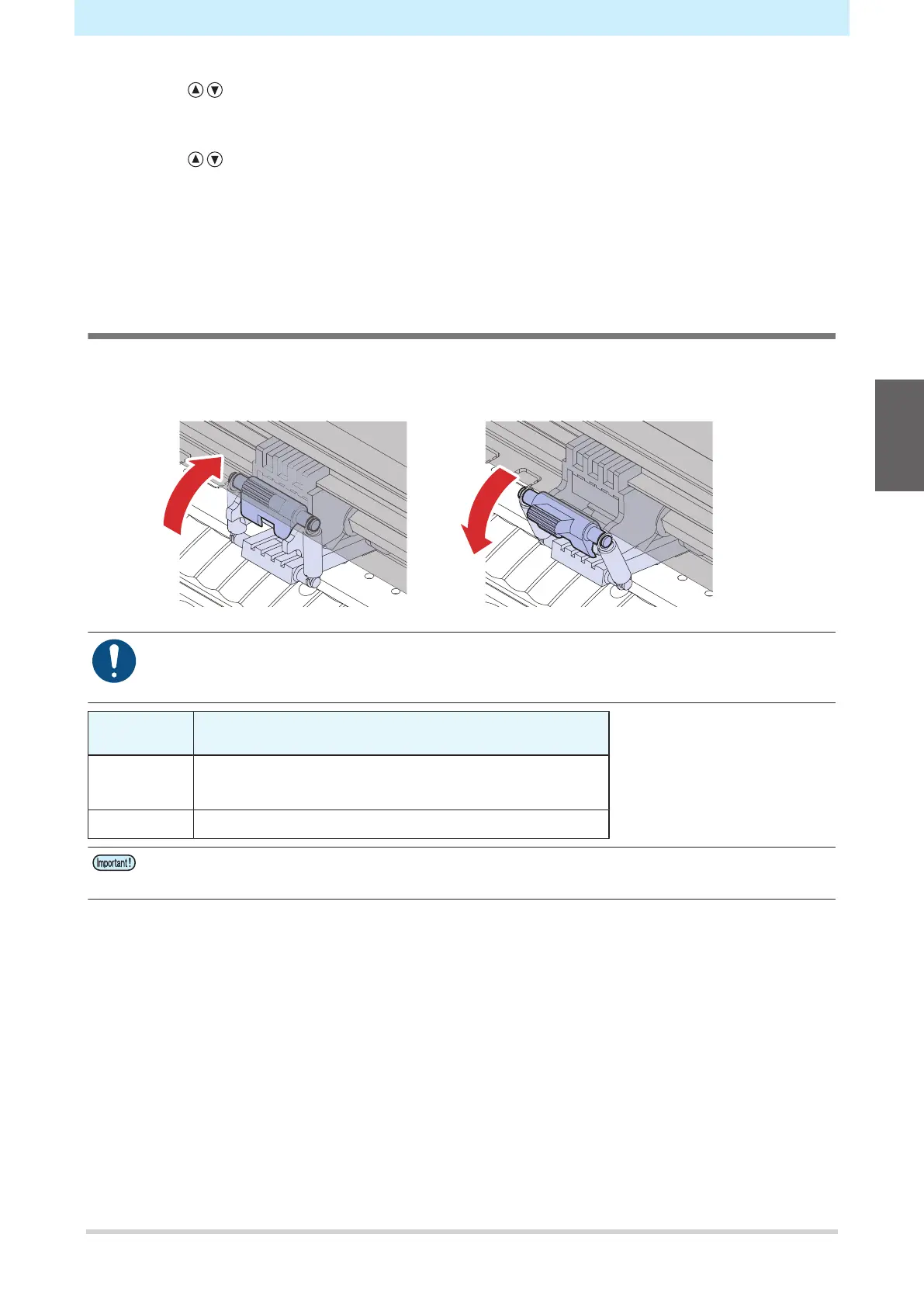

Setting the Clamp High/Low Mode
The sheet clamping pressure can be switched between high mode and low mode using the clamp pressure
lever.
Select high or low mode to suit the sheet being used.
High mode: Raise clamp pressure lever Low mode: Lower clamp pressure lever
• The clamps at each side must always be used set to high mode. The sheet may become
skewed if the clamp mode is not correctly set.
• Set the clamp high/low mode once the pinch rollers have been positioned.
Clamp
pressure lever
Use
High mode Cutting PVC sheet
When using heavy paper (at least 70 kg or 81 g/m
2
)
Low mode To reduce pinch roller marks
• When using low mode, the sheet may become skewed depending on the sheet type, feed rate,
and sheet width.
l
Enabling and Disabling the center clamp
Disabling the center clamp allows the middle pinch roller to be used in the raised position.
Raising the middle pinch roller provides the following benefits:
• No marks are left on the sheet.
• Prevents the sheet from lifting up.
Enable or disable the center clamp to suit usage.
2
