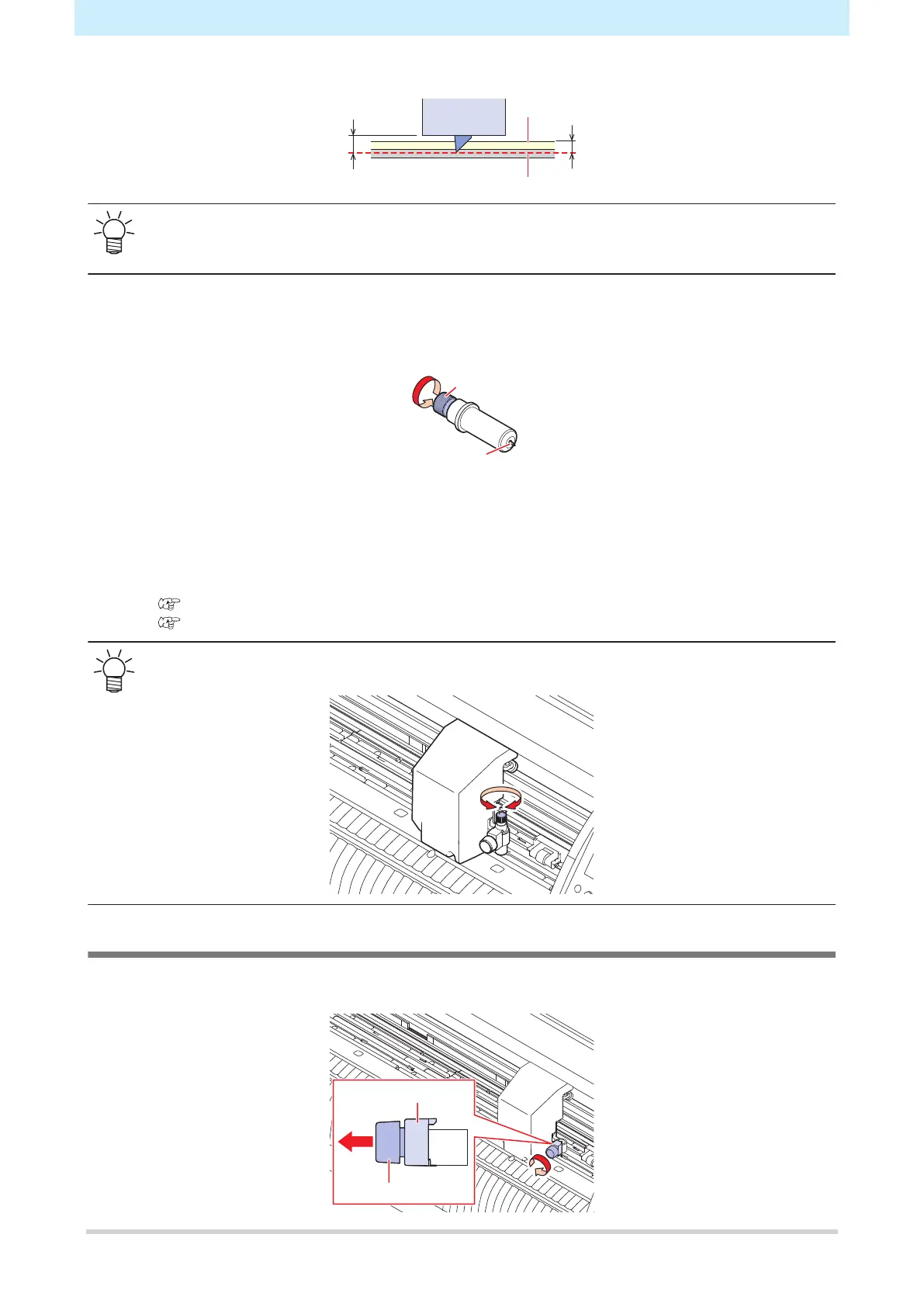

Chapter 2 Cutting
60
• If the base paper is thinner than the label film: As far as to cut into label film
Cutting blade
protrusion length
Label film
Base paper
Cut amount
• The protrusion of the cutting blade can be adjusted accurately using the optional cutting blade
adjuster tool.
Part number: OPT-C0066 "blade adjuster (for eccentric cutter)"
1
Turn the adjusting knob to adjust the protrusion of the cutting blade.
• Turn the adjusting knob in the direction indicated by the arrow in the picture to have the blade
protrude. (0.5 mm per turn)
2
Check the cutting performance.
• Adjust the pressure so that it leaves slight marks on the base paper. A cutting blade that protrudes
too far may damage the machine.
• If the base paper is thinner than the film, preventing accurate cutting quality from being achieved,
better results may be obtained by altering the cutting blade protrusion length.
"Setting Tool Conditions"(P. 69)
"Test Cutting"(P. 72)
• When using the cutter holder included in the delivery, you can adjust the protrusion length while
the cutter is attached to the tool holder. (0.5 mm per turn of the adjusting knob)
Installing the Cutter Holder
1
Turn the knob screw and loosen the holder presser.
To Next Page
