Chapter 2 Cutting
62

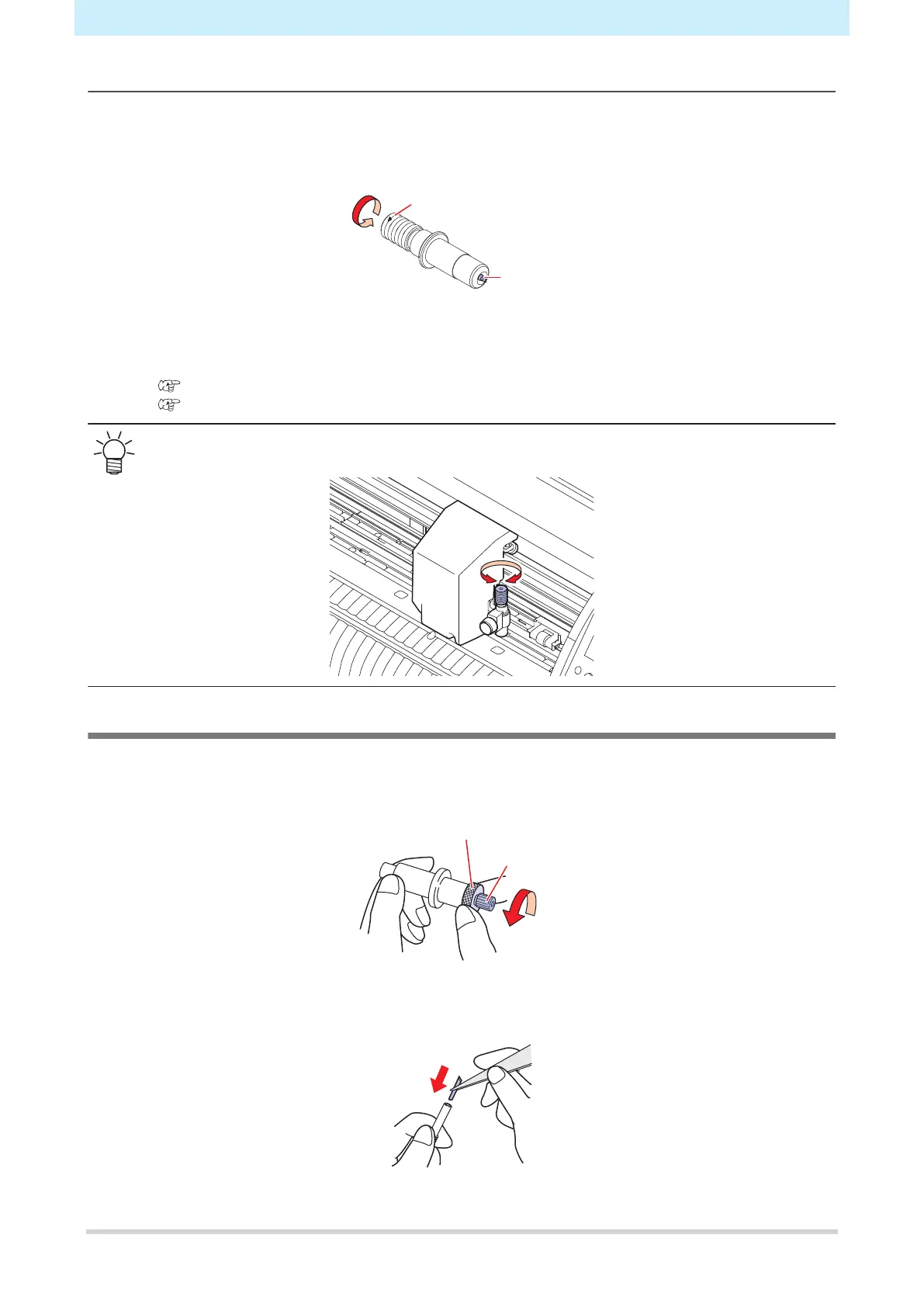

Adjusting the Cutting Blade Protrusion Length
1
Turn the adjusting knob to adjust the protrusion of the cutting blade.
• Turn the adjusting knob in the direction indicated by the arrow in the picture to have the blade
protrude. (0.5 mm per turn)
2
Check the cutting performance.
• Adjust the pressure so that it leaves slight marks on the base paper. A cutting blade that protrudes
too far may damage the machine.
"Setting Tool Conditions"(P. 69)
"Test Cutting"(P. 72)
• The cutting blade protrusion length can be adjusted while the cutter holder is attached to the
tool holder. (0.5 mm per turn of the adjusting knob)
Installing the (Supply) Cutter in the Cutter Holder (SPA-0001)
1
Loosen the lock nut of the cutter holder and extract the adjusting knob.
• Turn in the direction indicated by the arrow in the picture.
2
Insert the cutter into the adjusting knob.
• Use tweezers to insert the cutter.
