MIMAKI CG-AR Series User Manual

Chapter 3 Cutting Data with Register Marks
83
l

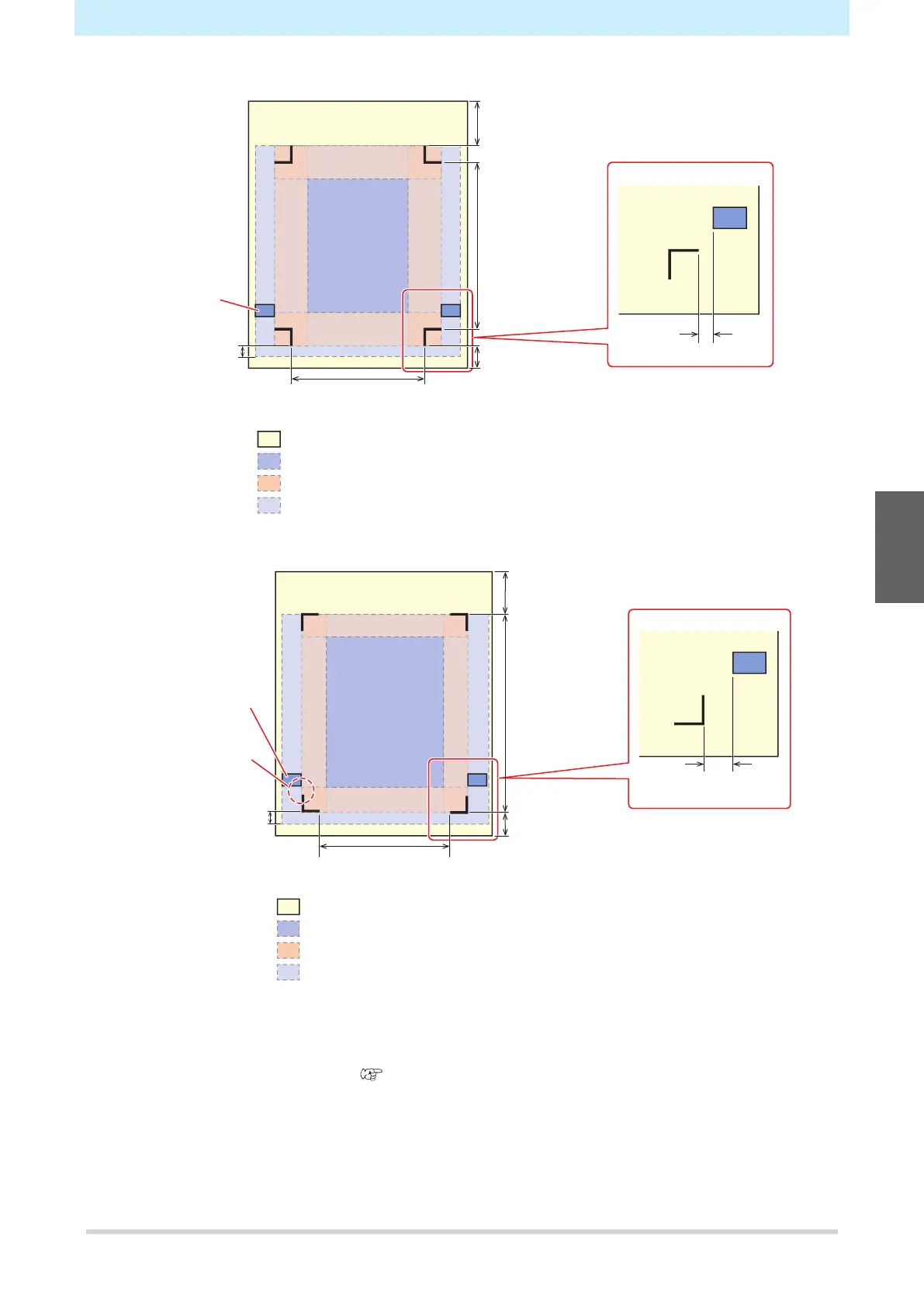

Register mark shape: Type 1
Sheet
Pinch roller
Cutting data layout area
Cutting area (normal)
Cutting area (expand)
50 mm or more
[Front]
[Rear]
45 mm or more
50 to 3000 mm
20 mm or more
5 mm or more
70 to 3,000 mm
(for ID cut)
70 mm or more (for ID cut)
With Expand disabled
10 mm
l
Register mark shape: Type 2
Pinch roller
Ensure that register
marks are not covered by
pinch rollers
Sheet
Cutting data layout area
Cutting area (normal)
Cutting area (expand)
50mm or more
50 to 3,000mm
45 mm + (mark length/2) or more
20mm + (mark length/2) or more
[Rear]
[Front]
70 to 3,000mm
(for ID cut)
Register mark length or
greater
70 mm or more (for ID cut)
With Expand disabled
10mm
This machine can detect register marks in the range shown in the above figure.
l
ID Cut
For more information on ID cut, refer to "ID Cut Process"(P. 97) and the ID Cut Guide. The ID Cut
Guide can be downloaded from the official Mimaki website. (https://mimaki.com/download/)
