Image Optimization 5-59

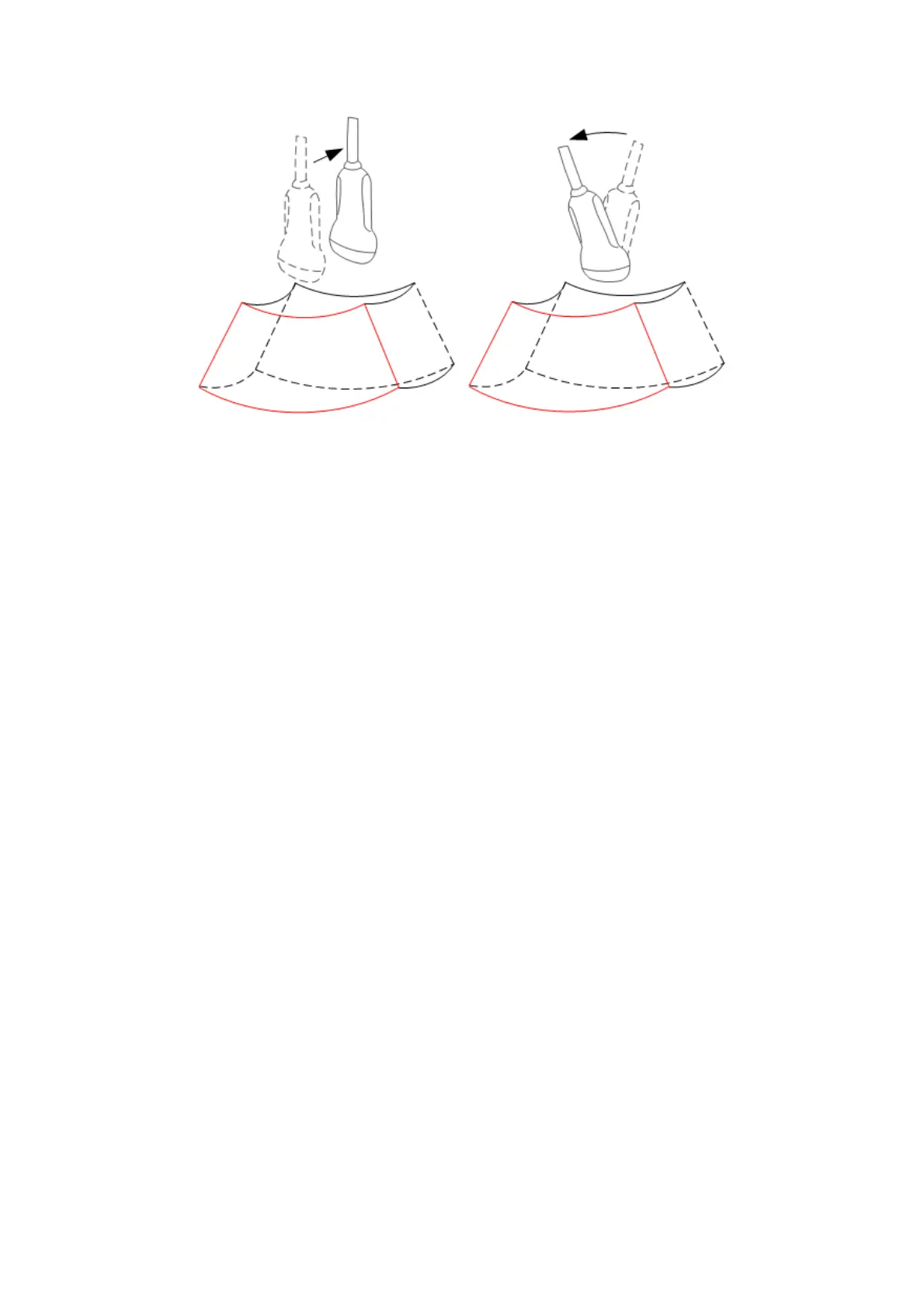

Rotating the Image
The system supports the following rotation modes:
z Sphere center rotation
z Axial rotation
z Auto rotation
z Quick rotation
Sphere center rotation
Rotate the 3D image around the center point of the 3D image.
z Procedures
a) Set 3D image window as the current window.
Click [Current Window] to be “3D” in the soft menu; or, press <Cursor> on the
control panel to show the cursor, then move the cursor onto 3D image window,
and press <Set> to select the 3D image window as the current window.
b) The system actives sphere center rotation mode by default. You can roll the
trackball to rotate the 3D image.
In sphere center rotation, the three sectional planes will change in real-time with
the rotation of 3D image.
Axial rotation
Axial rotation is to rotate the 3D image around the X, Y or Z axis.
z Procedures
a) Set 3D image window as the current window. The procedures are the same
as described in sphere center rotation.
b) Rotate the corresponding knobs to make the image rotate, here,
h To rotate along X-axis: click [X Rotation] or rotate <M> knob.
h To rotate along Y-axis: click [Y Rotation] or rotate <PW> knob.
h To rotate along Z-axis: click [Z Rotation] or rotate <Color> knob.
Auto rotation:
1. In 3D viewing mode, click [Auto Rot.], the system enters auto rotation preparation
state, and there displays the 3D image only.
2. Click [Direction] to set the auto rotation direction.
3. Click [Repeat Mode] to set the auto rotation mode.
4. Click [Speed] or rotate the corresponding knob to set the rotate speed.
