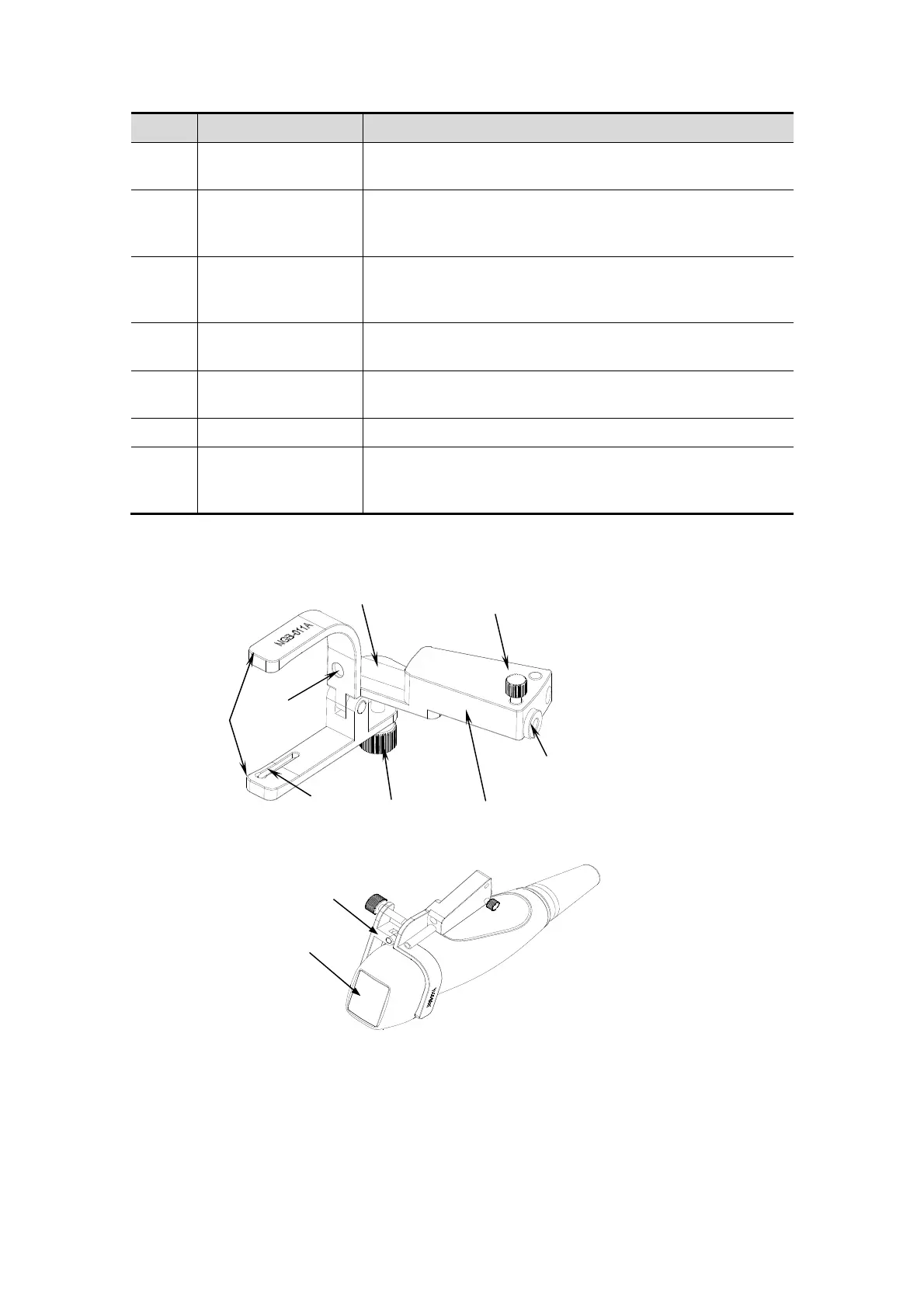

Mindray DC-T6 User Manual

13-24 Probes and Biopsy
No. Name Description
<2>
Guiding hole of the
biopsy needle
Used for installing the biopsy needle.
<3>
Support of
needle-guided
bracket
Used for installing the needle-guided bracket on the
probe.
<4>
Knob of fixing
needle-guided
bracket
Used for fixing the needle-guided bracket on the probe.
<5>
Specification of
guiding block (13G)
Matched with the corresponding biopsy needle (13G).
<6>
Knob of fixing the
guiding block
Used for fixing the guiding block.
<7> Needle guide angle The needle guide angle of this needle-guided bracket.
<8>
Grooves of the
needle-guided
bracket
Matched with the tabs of the probe.
 NGB-011
Needle guide rack
Needle guide
hole
Grip
knob
Locating groove
Clamp
Clamping knob of
the needle
g
uide
Needle guide
Locating
p
it
Probe
Needle-guided
b
r
ac
k
et
