11−5. Comparator function
Set value −99 999 to 99 999
Numbers of setting 2 points of S1 and S2.
Set value for hysteresis data 0 to 99 digits
Setting hysteresis time width 0 to 9.9 s
Hysteresis direction Can be selected whichever “On delay” or “Off delay”.
Conversion times for comparator
4 times/s or 20 times/s changeable.
(Synchronous with display rate.)
※During the display of set value, process of measurement and also
process of comparator are interrupted.
11−6. Contact output signal
S1、S2 The contact operates when reached under/over the comparator set value.
Contact specifications 1a contact
AC125 V 0.1 A（Resistance load）
DC30 V 0.5 A（Resistance load）

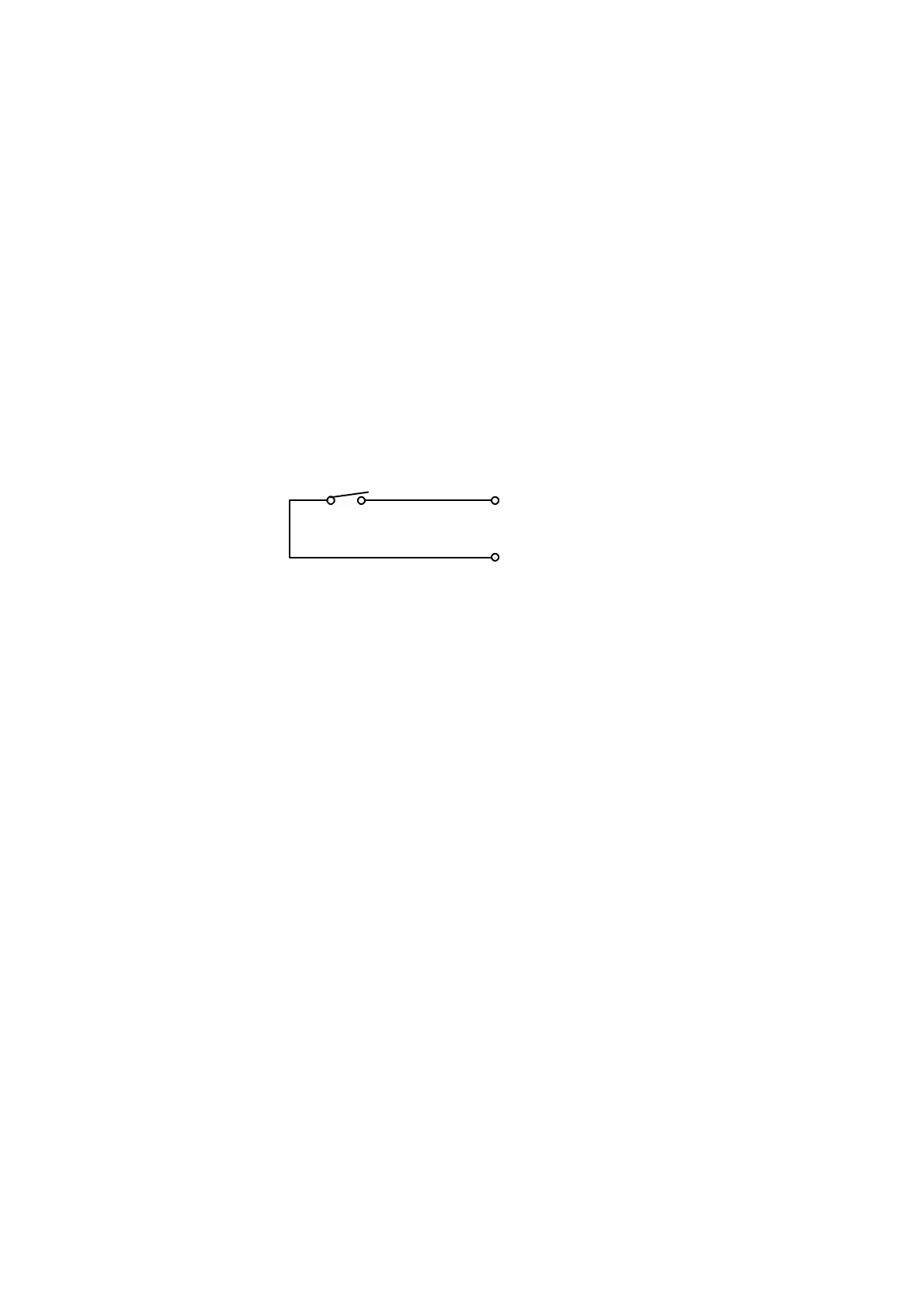

Equivalent circuit of contact output section
OUTPUT
COM.2
11−7. Various kinds of functions
Zero tracking Stabilizes the variation of zero point within the fixed condition.
Digital filter Stabilizes the data by the computing process through CPU.
Stabilized filter Only when the load variation width is within the fixed value, this
strengthens/stabilizes the digital filter.
Change of target of HOLD With the combination of “Display”,“Comparative output”, “Analog
output”, “BCD output(Option)”, target of HOLD can be made.
Sheet key lock Prohibition of operation of optional key.
Peak hold The maximum load value is always indicated.
Change of target of analog output
The target of analog output can be changed either “TRACK value/Gross
weight” and “PEAK/Net weight”.
11−8. General specifications
Operating temperature/humidity range
Temperature −10 ℃ to 50 ℃
Humidity Less than 85 %RH (Non condensing.)
Power supply
Power supply voltage AC100 V to AC240 V
(Allowable variable range AC85 V to AC264 V)
Power supply frequency 50/60 Hz
Power consumption Approx. 11 VA(Without option, at AC100 V)
Approx. 14 VA at max. (With options, at AC100 V to AC240 V)
Outline dimensions(
W×H×D)96mm×48 mm×120 mm (Excludes protruding parts.)
Weight Approx. 0.3 kg (Without any options.)
