55
7−2−4. Comparative target for comparator S1 and S2
The comparator in the instrument, S1, S2 individually can select the comparative target from
the two, that is, “PEAK/Net weight”, “TRACK/Gross weight”. This selection can be made in the
Function mode. (Related function FUNC−31) As for default, the “TRACK/Gross weight” is
selected for both of S1 and S2.
Warning ● The ON/OFF condition of each contact output is different according to
the comparison target selection of the comparator. If wrong operation
is selected, ON/OFF condition for contact output becomes inadequate
and it may cause an unexpected accident due to malfunctions on
peripheral instruments, so care should be taken fully.

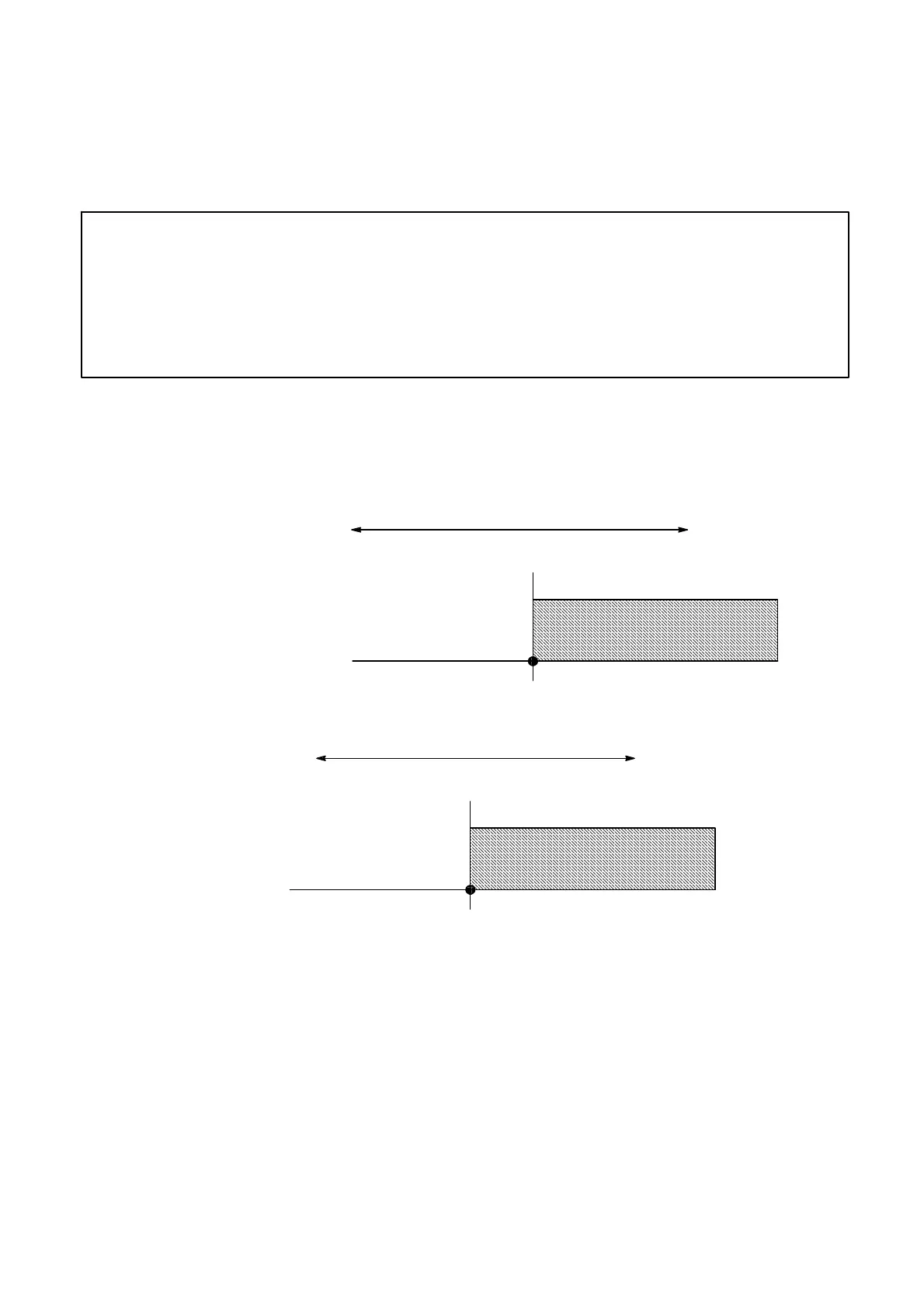

Operation on judgement display section each comparative target and the operation of contact
output will be shown as follows when the operation of “contact ON at more than the set value”
is selected by the S1, for an example. The same is the operation of S2.
(1) When the operation of “PEAK/Net weight” is selected.
S1 judgement display, S1 contact output ON at (S1 set value)≦(Display load)
ON
OFF
S1 set value
Load display (large)
Load display (small)
S1 judgement display,
S1 contact output
(2) When the “TRACK/Gross weight” is selected.
S1 judgement display, S1 contact output ON at (S1 set value)≦(TRACK/Gross weight)
ON
OFF
S1 set value
TRACK/Gross weight (large)
TRACK/Gross weight (small)
S1 judgement display,
S1 contact output
