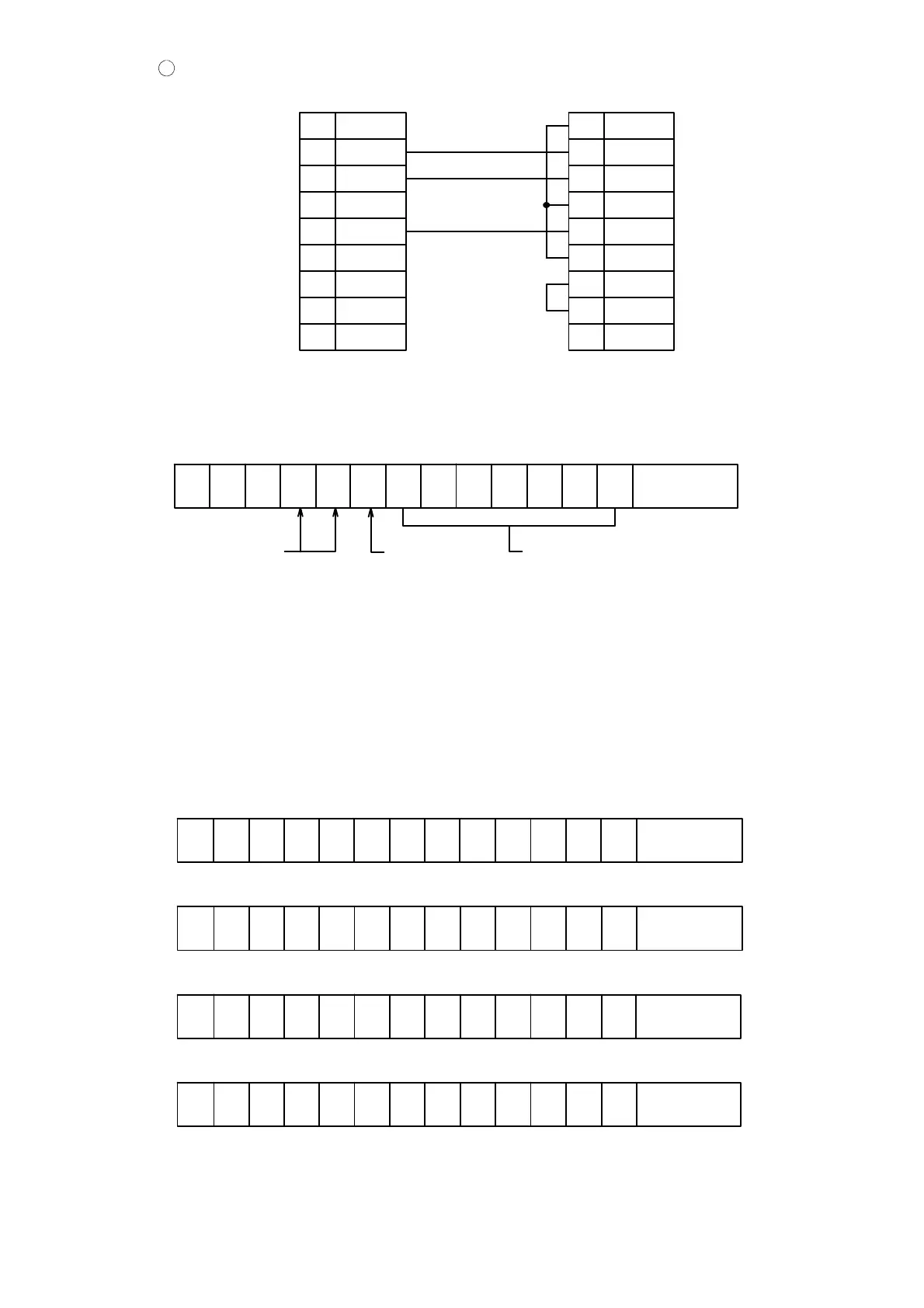

Minebea CSD-701B - 9−3−5. Data format

97
2
Example 2
CD
TXD
RXD
N.C.
S.G.
RTS
CTS
N.C.
N.C.
CSD−701B
Host(9 pins)
DCD
TXD
RXD
DTR
S.G.
RTS
CTS
DSR
RI
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
9−3−5. Data format
(1) Stream mode
2 4 6 8 10 12 14
Load dataSign of
load data
Command No.
@ 0 0 9 9 Terminator
D The setting with the F−55 can be entered to the terminator.
D Load weighing data enters from the right end.
D When the data is minus, “−” sign, and when plus, “＋” sign is added.
D Load weighing data performs zero suppress.
D In case that the decimal point is set with the F−56, and at the same time the
decimal point is specified with the F−01, it will be added to the specified
position.
D The message will be output at the time of overloaded.
D The empty sections are all spaces.
2468101214
@ 0 0 9 9 − 1 2 3 Terminator
2 4 6 8 10 12 14
@ 0 0 9 9 ＋ 0 . 1 2 3 Terminator
@ 0 0 9 9 ＋ O L Terminator
@ 0 0 9 9 − O L Terminator
2 4 6 8 10 12 14
2 4 6 8 10 12 14
