3
6
key
Used when calling the S2 set value changeover mode, or for the increment of values at the time
of various kinds of settings.
Also, by pressing this key and the
key together, it will execute the set of zero(One−touch
zero adjustment).
7
key
Used for making the changeover mode of Peak/Track, or executing the Tare weight
cancellation (A/Z ON).
(Changeover of Peak hold function and A/Z function depends on the setting of Function mode.)
8
key
Used for the reset of Peak value, or for Tare weight cancellation clear(A/Z OFF).
(Changeover of Peak hold function and A/Z function depends on the setting of Function mode.)
9
key
Used for registering set values at the time of various kinds of settings.
Also, by pressing this key and the
key together, it is used when the CHECK value is
turned on and off.
Also, by pressing this key and
key together, it will execute the set of zero(One−touch zero
adjustment).
10
Position of pasting the Unit seal
As necessity requires, paste the Unit seal attached.

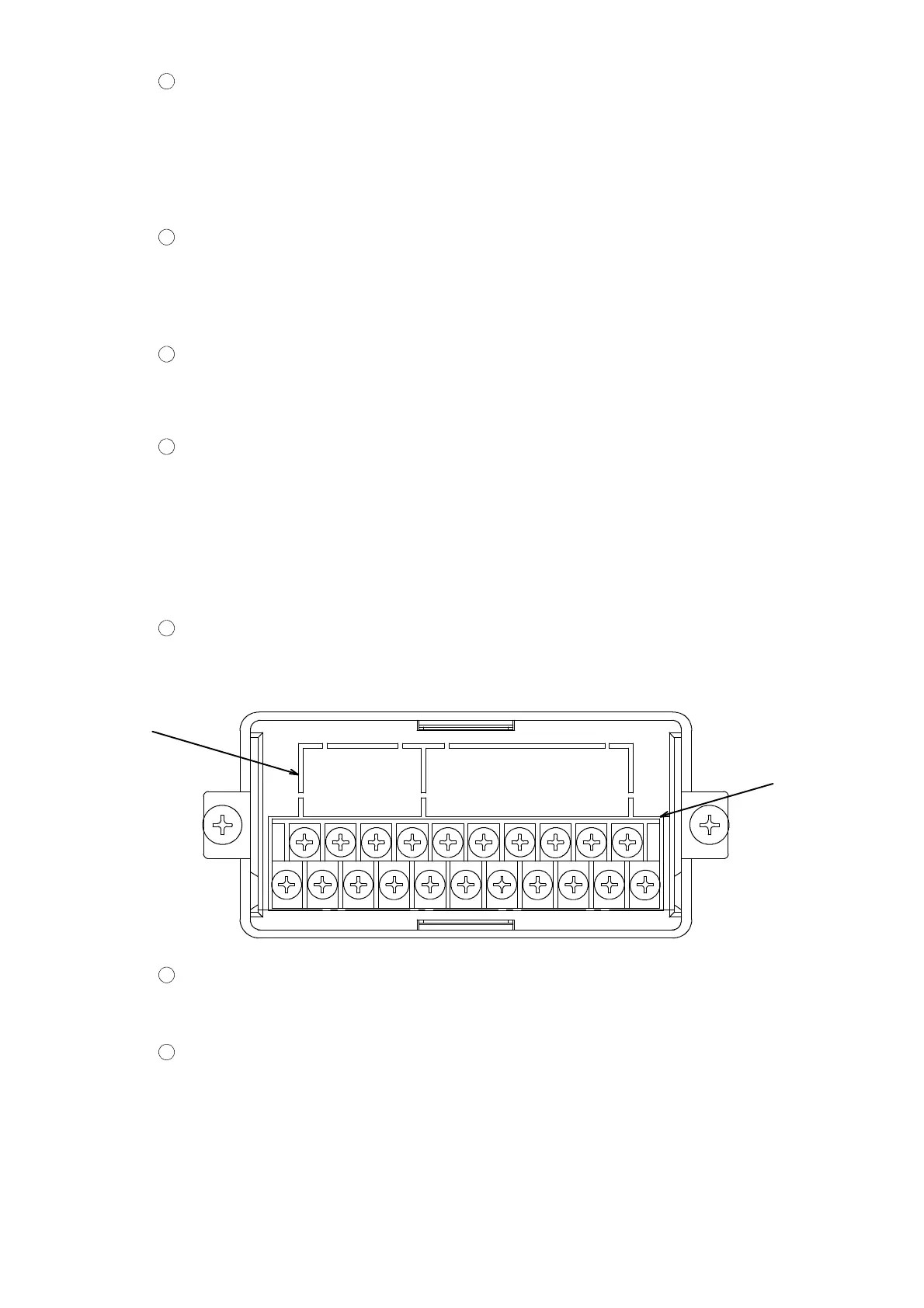

2−2. R ear panel
①
②
1
Terminal board
Connects with external control input, contact output, various kinds of strain gage applied
transducer such as load cell, analog output, AC power supply, and a grounding wire.
2
Installing section for options
Whichever one can be installed from the optional BCD−OUT, RS−232C, RS−422 or serial
interface.
