142

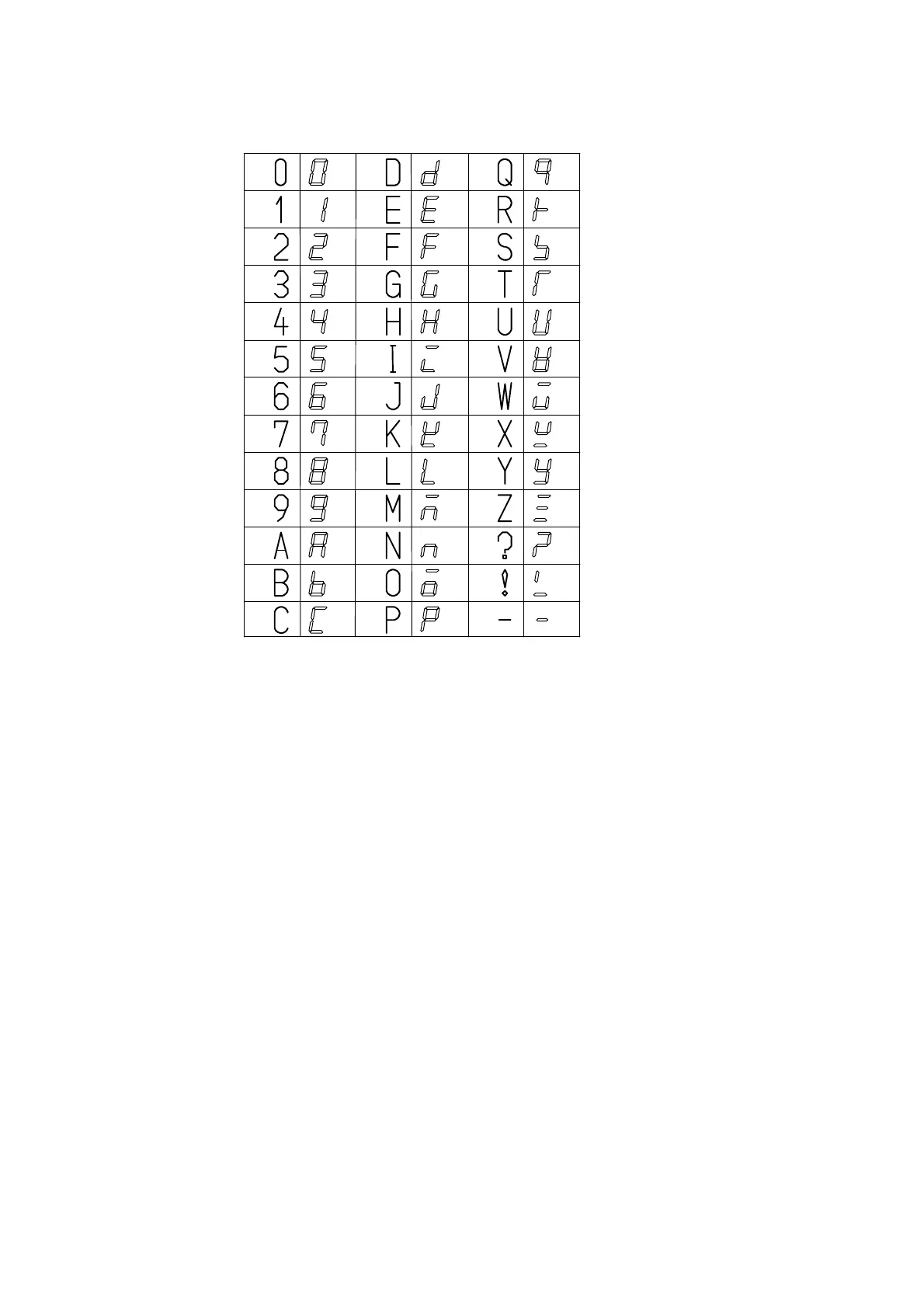

13−2. Character’s pattern for display
The followings are the table to show the display pattern used at 7 segments display on the
instrument.
