Replace the fuse installed on the POWER CARD.

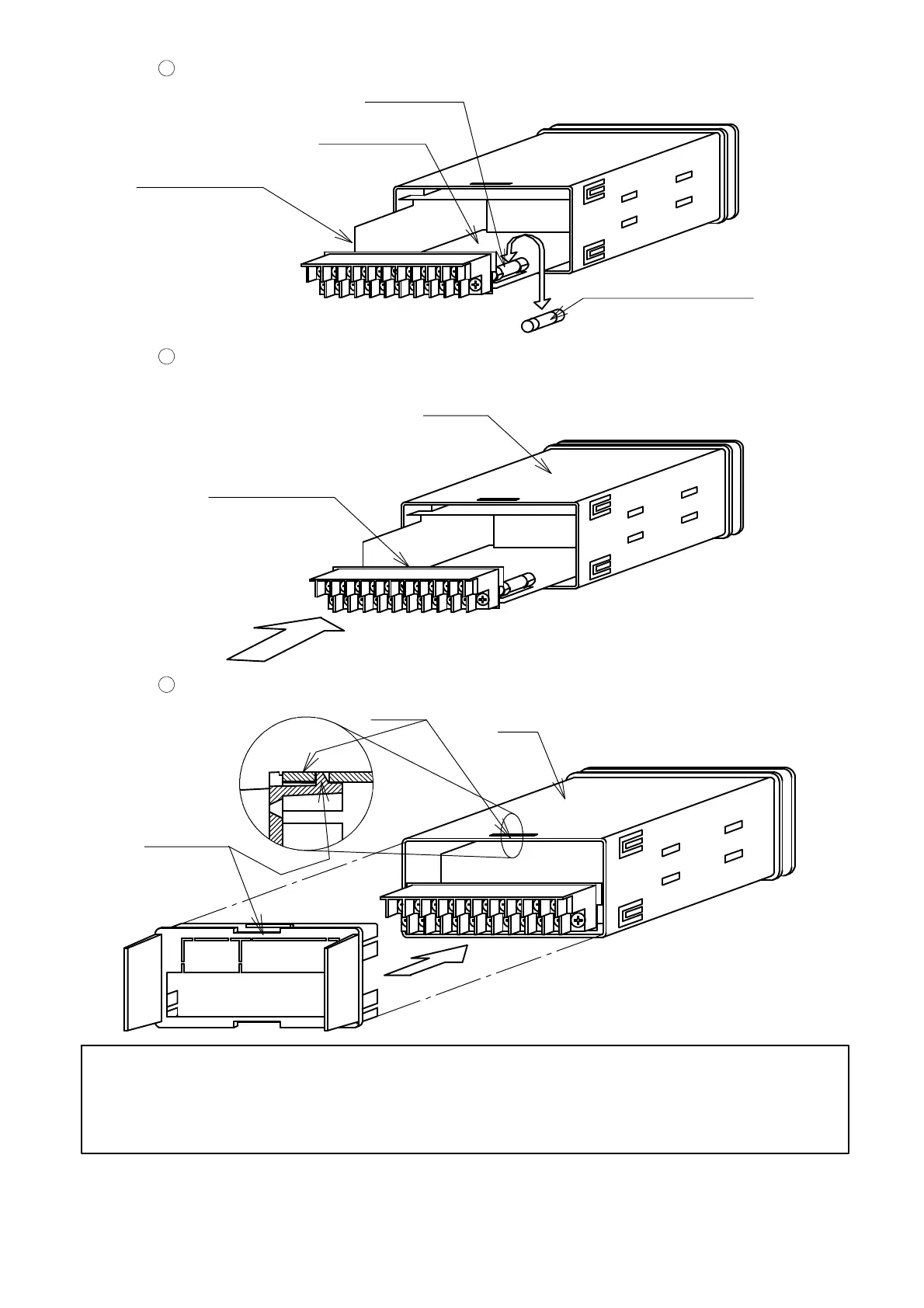

Fuse(Replacement)
Fuse holder
POWER CARD
Assembly board
5
After the fuse is exchanged, the assembly board is inserted up to the place caught to hook B of
the case.
Case
Assembly board
6
Please insert a rear panel up to the place caught to hook A of the case.
Case
Hook A
Rear Panel
Warning ● When the rear panel is not attached closely, you can’t feel the click
touch and also there may have the possibility that key operation is not
made.
