13. Appendix
13−1. Replacement of fuse
Warning ● When installation method for the fuse is wrong and/or the capacity of
installed fuse is inadequate, it causes and unexpected faulty of the
instrument.
1
Turn OFF the power supply for the instrument.
2

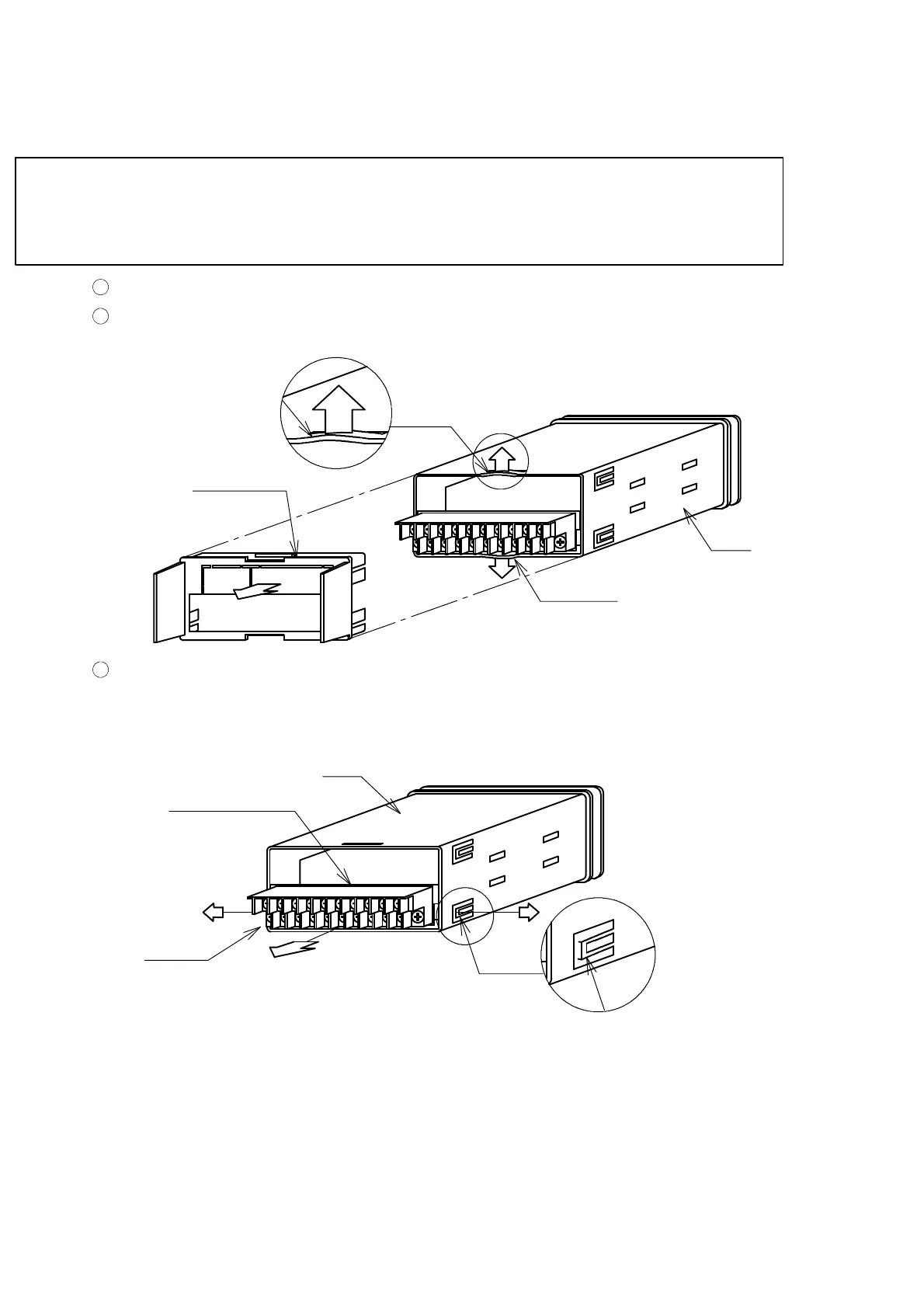

Hook A section of the case is opened in the direction of the arrow, and a rear panel is removed
in the direction of the arrow.
Case
Hook A
Rear panel
Hook A
3
Hook B of the case is opened in the direction of the arrow, and the assembly board is drawn
out in the direction of the arrow.
Case
Hook B
Assembly board
Hook B
