4−3−4. Connection with the power supply and the earth

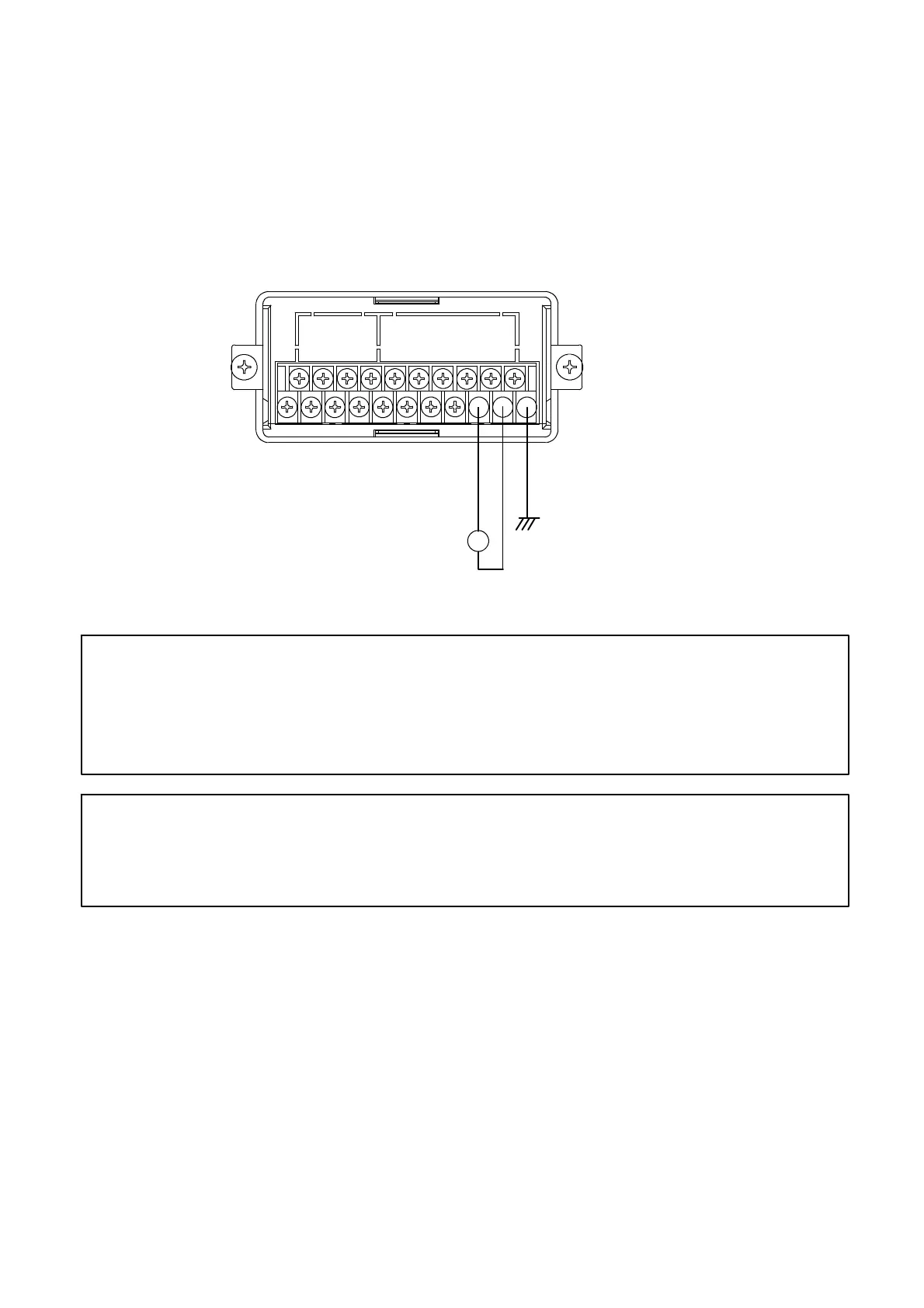

Connections with the power supply and the earth should be made as the following figure.
Grounding should be the D class with single earth.
Power supply voltage AC100 V to AC240 V
(Allowable variable range：AC85 V to AC264 V)
Frequency for power supply 50/60 Hz
Power consumption Approx.11 VA at maximum. (at AC100 V)
〜
D class with single earth
AC100 V to AC240 V
(Allowable variable range
：AC85 V to AC264 V)
Warning ● Connections with the power supply and the earth should be made
securely according to the figures and also within the rated capacity of
the instrument. If neglected, it may cause an unexpected cause of
failure.
 ● Grounding should be the D class with single earth.
If neglected, it may cause an unexpected malfunction due to the
effects of noise from other equipments.
