Minebea CSD-701B - 9−4−4. Pin layout and wiring of Connector

103

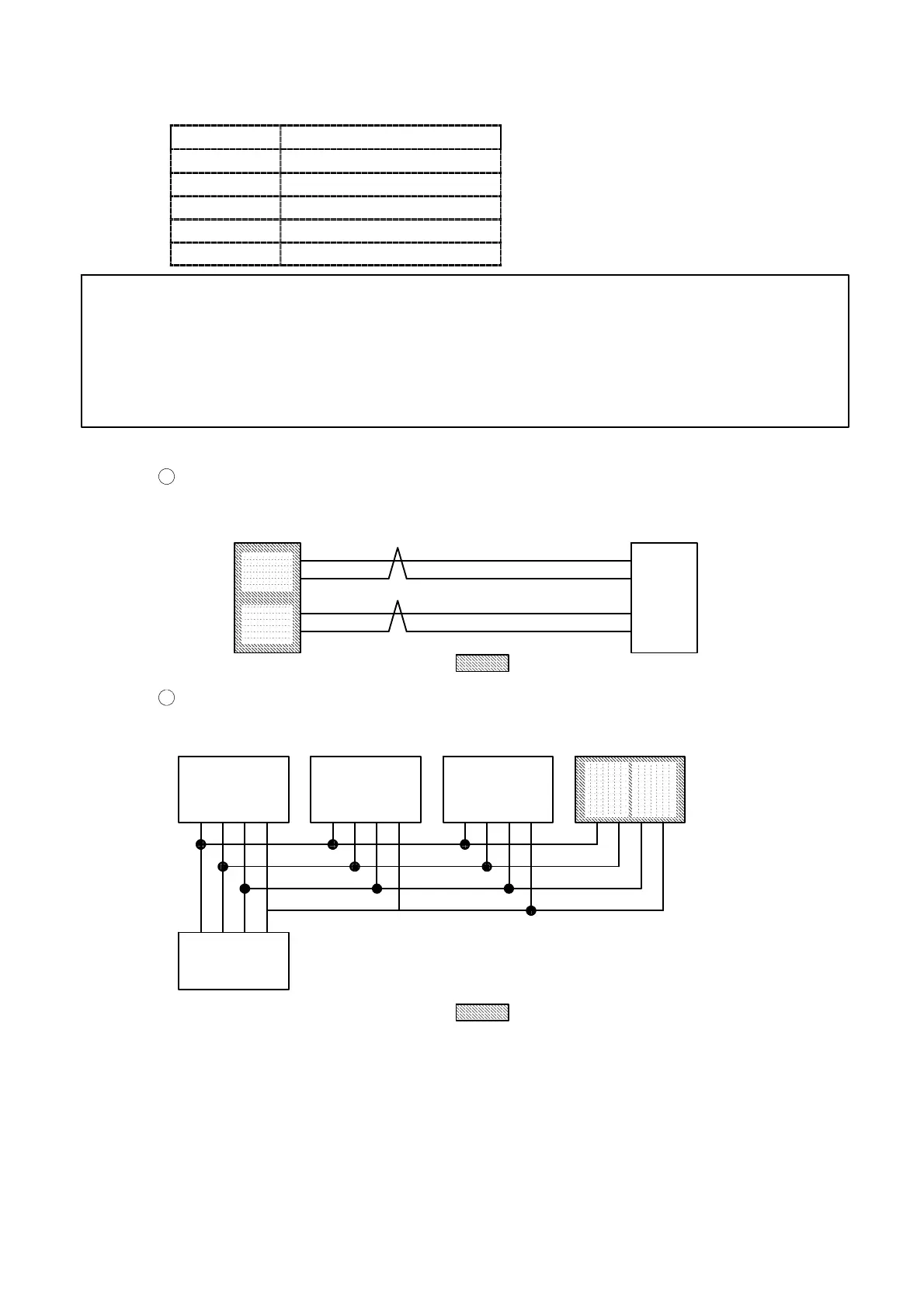

9−4−4. Pin layout and wiring of Connector
(1) Pin configuration
SDA
Differential output（＋）
SDB Differential output（−）
RDA Differential input（＋）
RDB Differential input（−）
TRM. Terminator
S.G. Signal ground
 ● The TRM. is a terminal resistance. Connect the terminal resistance
by shorting between the TRM. and RDM. at the last end of the host
looking from the host(personal computer, sequencer and so on).
● For the connection, we recommend to apply twisted pair wires.
(2) Example of connection
1
1to1
RS−422
SDA
SDB
RDA
RDB
RDA
RDB
Host
SDA
SDB
CSD−701B
Connect the terminal resistance at the
section.
2
1ton
RS−422
Host
RDB SDB RDA SDA
RDB SDB RDA SDA RDB SDB RDA SDA
RDB SDB RDA SDA
RDB SDB RDA SDA
CSD−701B CSD−701B CSD−701B
CSD−701B
Connect the terminal resistance at the
section.
