4−3−5. Connection with analog outputs
(1) In case of standard instrument (voltage output)
The instrument prepares output voltage for analog outputs as a standard.

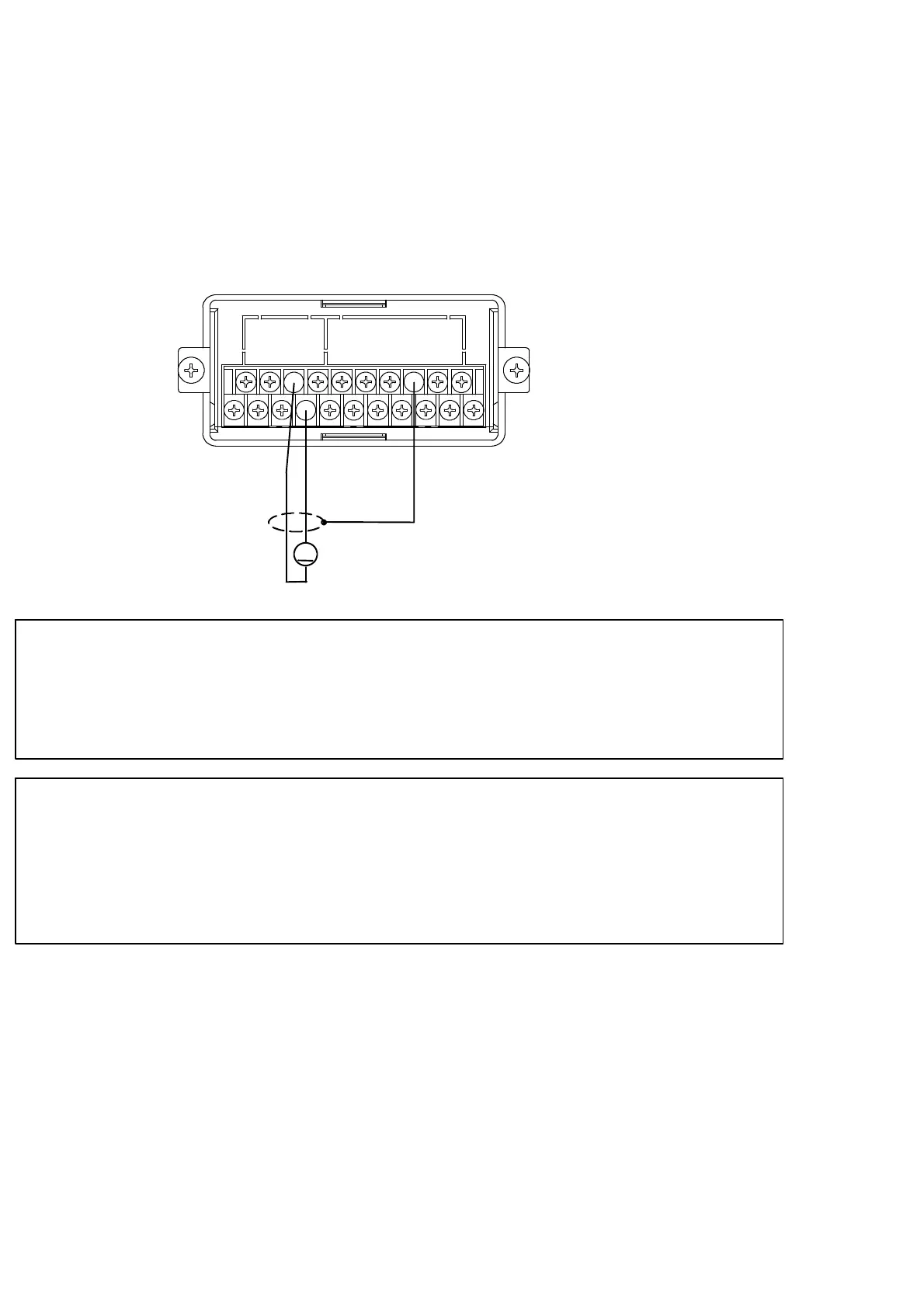

Connections with voltage output should be made as the following figure.
Voltage output DC0 V to 5 V
Over−range At “−OL” display Approx.−1.25 V
At “OL” display Approx.6.25 V
Load resistance 5 kΩ or more
＋
−
V
Shield
Warning ● Connections with voltage outputs should be made securely according
to the figures and also within specified load resistance.
If neglected, it may cause an unexpected failure and/or malfunction to
the instrument.
● For the connections with voltage outputs, be sure to apply shielded
cable, and the shielded cable should be connected with the F.G.
terminal of the instrument(Terminal No.16).
If not connected, it may cause malfunction due to the effects from
external noises and so on.
