17
(2) In case of option (current output)

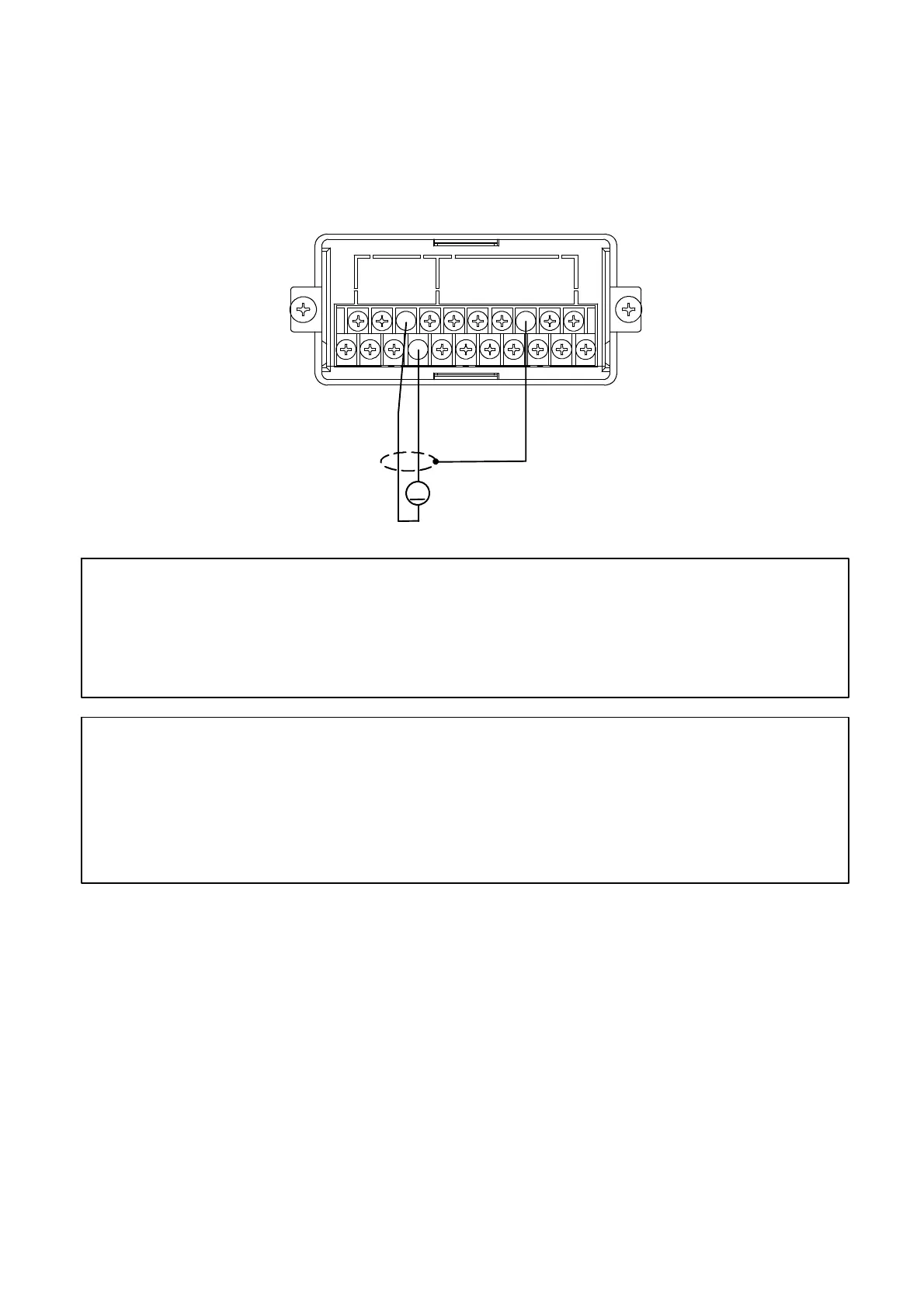

Connections with current output should be made as the following figure.
Current output DC4 mA to 20 mA
Over−range At “−OL” display Approx.0 mA
At “OL” display Approx.24 mA
Load resistance 260 Ω or less
A
＋
−
Shield
Warning ● Connections with current outputs should be made securely according
to the figures and also within the specified load resistance.
If neglected, it may cause an unexpected failure and/or malfunction to
the instrument.
● For the connections with current outputs, be sure to apply shielded
cable, and the shielded cable should be connected with the F.G.
terminal of the instrument.(Terminal No.16)
If not connected, it may cause malfunction due to the effects from
external noises and so on.
To Next Page
