57

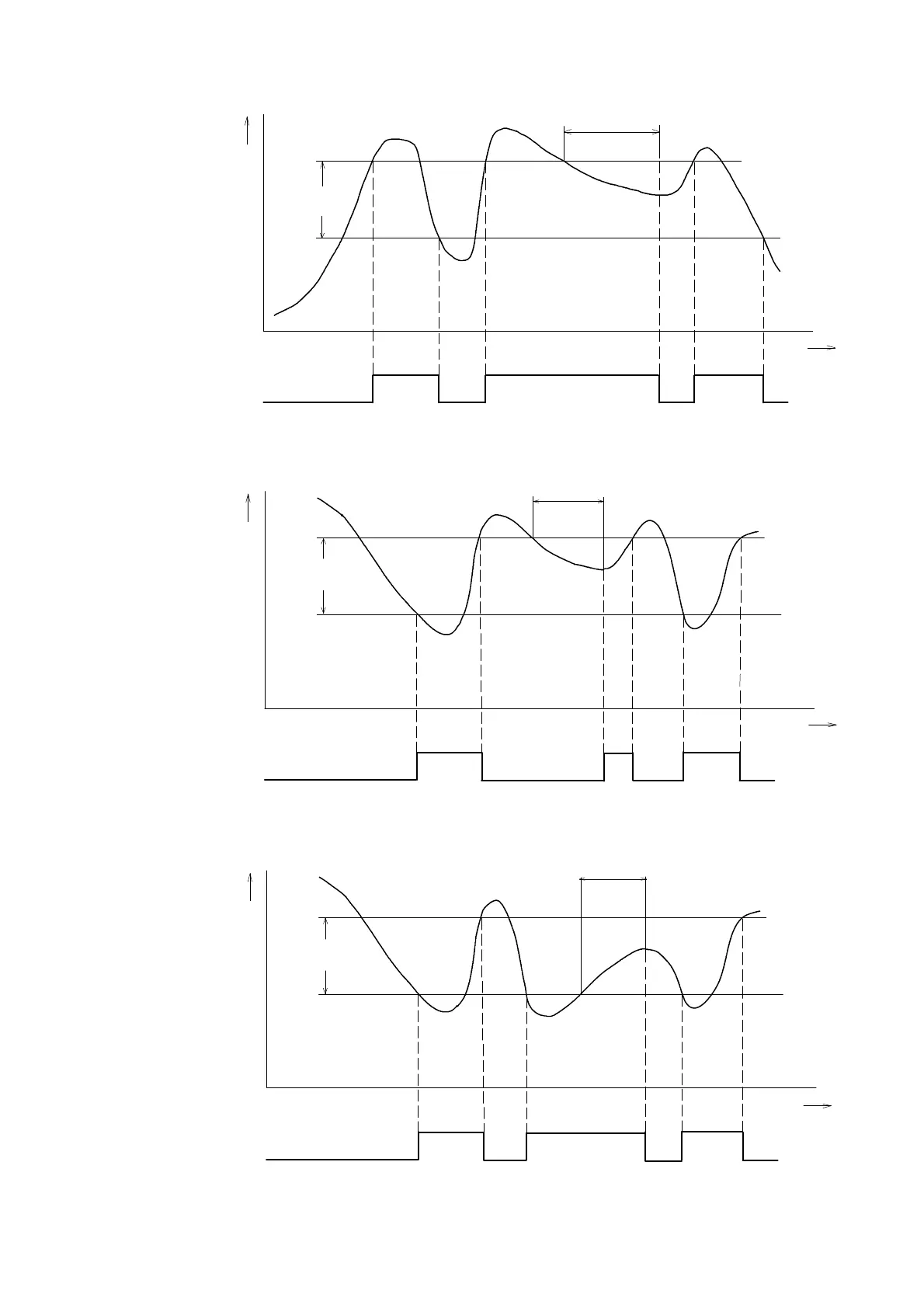

(2) When the operation of “contact ON at more than the set value” is selected at S1 and also
effective direction for hysteresis is set as “Off delay”.
ON
OFF
S1 set value
S1 judgement
display
S1 contact
output
Hysteresis
data width
Hysteresis time width
Time
Display
(3) When the operation of “contact ON at less than the set value” is selected at S1 and also
effective direction for hysteresis is set as “On delay”.
ON
OFF
S1 set value
S1 judgement
display
Hysteresis
data width
Hysteresis time width
Time
Display
S1 contact
output
(4) When the operation of “contact ON at less than the set value” is selected at S1 and also
effective direction for hysteresis is set as “Off delay”.
ON
OFF
S1 set value
S1 judgement
display
Hysteresis
data width
Hysteresis time width
Time
Display
S1 contact
output
