Mitsubishi F700 Series User Manual

169
Frequency setting by analog input (terminal 1, 2, 4)
4
PARAMETERS
Compensation input characteristic
when STF is ON

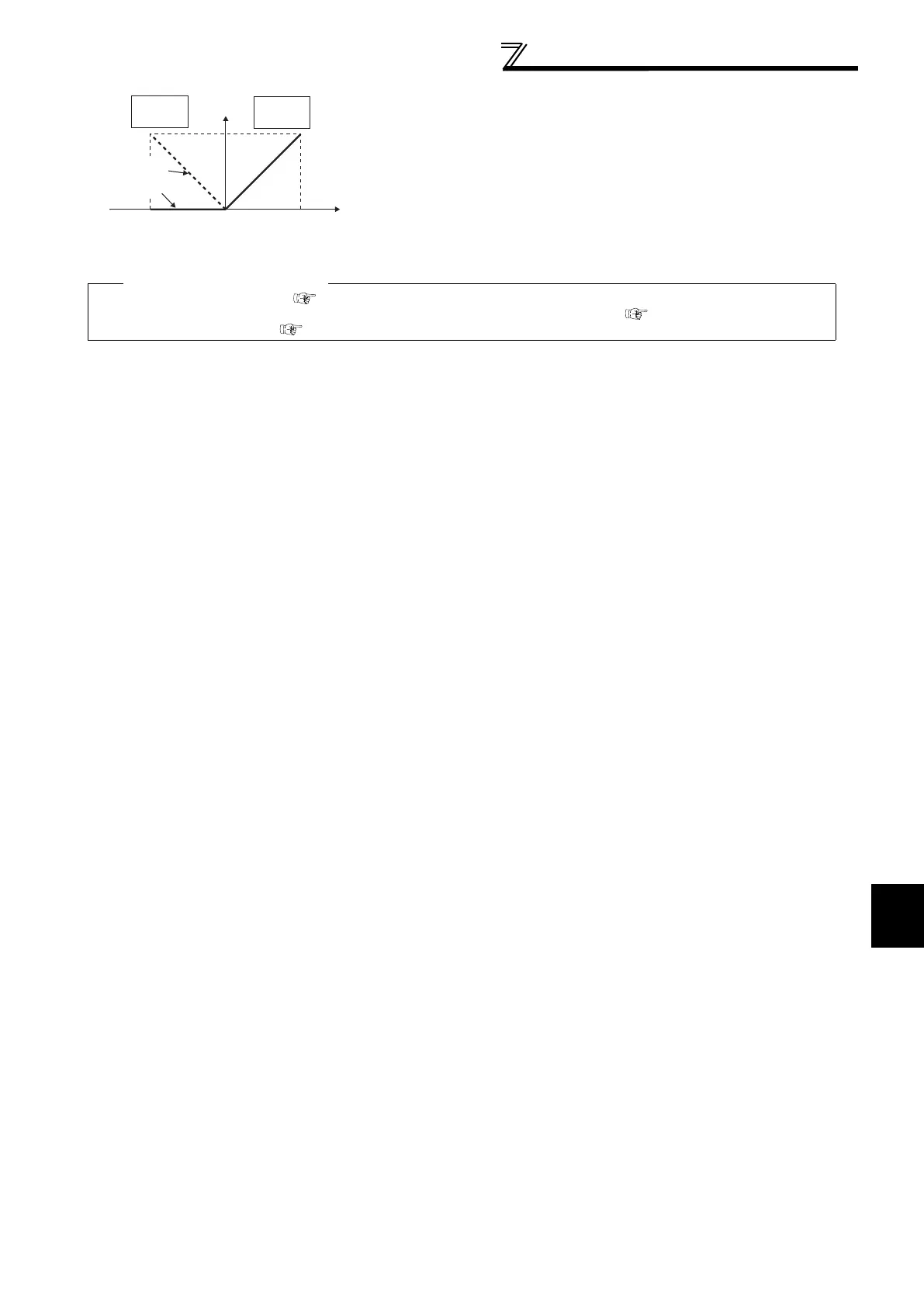

(4) Perform forward/reverse rotation by analog input
(polarity reversible operation)
 Setting any of "10 to 17" in Pr. 73 enables polarity reversible operation.
 Providing  input (0 to 5V or 0 to 10V) to the terminal 1 enables
forward/reverse rotation operation according to the polarity.
Parameters referred to 
Pr. 22 Stall prevention operation level Refer to page 74
Pr. 125 Terminal 2 frequency setting gain frequency, Pr. 126 Terminal 4 frequency setting gain frequency Refer to page 172
Pr. 252, Pr. 253 Override bias/gain Refer to page 170
Forward
rotation
Reverse
rotation
Terminal 1 input (V)
+5
(+10)
-5
(-10)
0
50
Set frequency
(Hz)
Not reversible
Reversible

Mitsubishi F700 Series Specifications

General

Humidity	95% RH or less (non-condensing)
Control Method	V/F control
Protection Features	Overcurrent, overvoltage, undervoltage, overheat, short circuit
Communication Options	RS-485
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Altitude	Up to 1000m above sea level
Overload Capacity	150% for 60 seconds
Cooling Method	Forced air cooling
Power Range	0.75 to 630 kW (1 to 845 hp)
Output Voltage	3-phase 200 to 240 VAC, 380 to 500 VAC (matching input voltage)
