Mitsubishi F700 Series User Manual

306
Useful functions
(2) Automatic parameter setting using the operation panel (parameter setting mode)

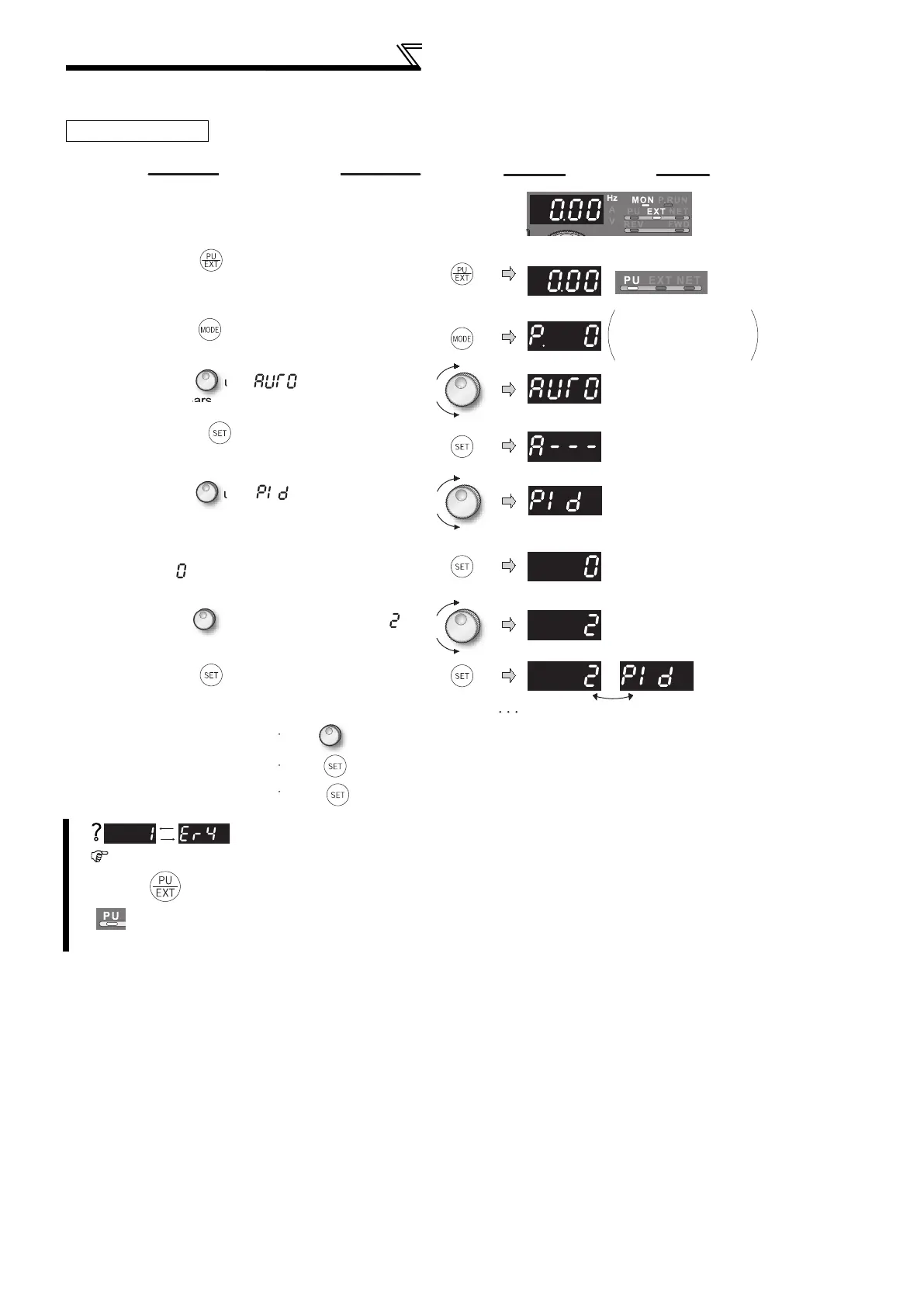

Operation example Automatically apply the extended PID display settings in parameters
are displayed alternately ... Why?
The inverter is not in the PU operation mode.
1.Press .
is lit and the monitor (4-digit LED) displays "0." (When Pr.79="0 (initial setting)")
2.Carry out operation from step 3 again.
1.Screen at powering on The monitor display appears.
PU indication is lit.
2.Press to choose the PU operation mode.
The parameter
number read
previously appears.
Operation
Display
3.
Press to choose the
parameter setting mode.
4.
Turn until (AUTO)
appears.
5.Press to enter the automatic
parameter setting mode.
7.Press to read the present set value.
" " appears.
6.
Turn until (PID) appears.
Flicker Parameter setting complete!!
9.Press to set.
Turn to read another parameter.
Press twice to show the next parameter.
Press to show the setting again.
8.Turn to change it to the set value " ".

Mitsubishi F700 Series Specifications

General

Humidity	95% RH or less (non-condensing)
Control Method	V/F control
Protection Features	Overcurrent, overvoltage, undervoltage, overheat, short circuit
Communication Options	RS-485
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Altitude	Up to 1000m above sea level
Overload Capacity	150% for 60 seconds
Cooling Method	Forced air cooling
Power Range	0.75 to 630 kW (1 to 845 hp)
Output Voltage	3-phase 200 to 240 VAC, 380 to 500 VAC (matching input voltage)
