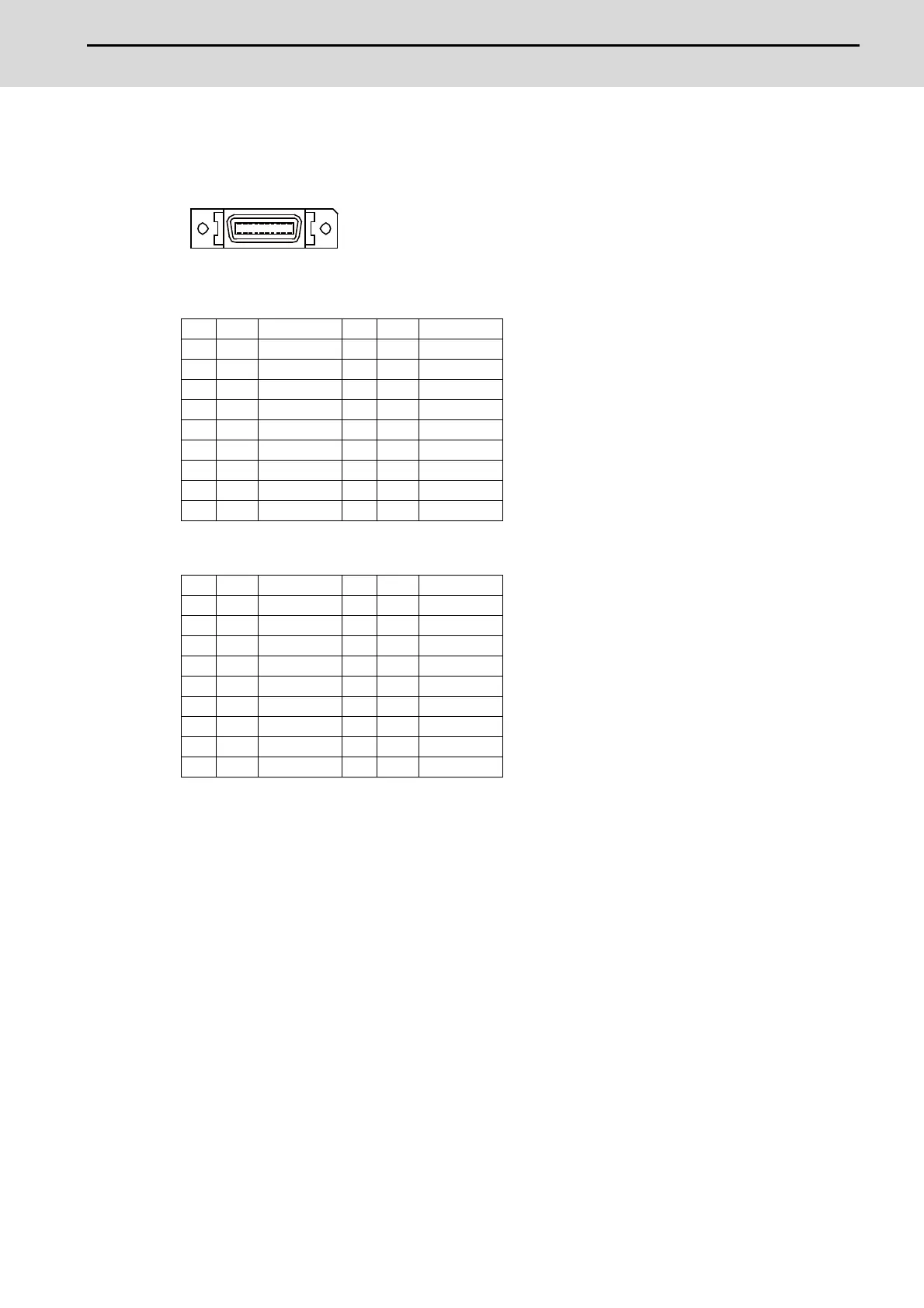

(12) MPG (Manual pulse generator input)
5V manual pulse generator and 12V manual pulse generator can be connected to this connector.
[FCU8-DX731]
[FCU8-DX750 / FCU8-DX760 / FCU8-DX761]
- Connect connector case with FG pattern.
<Cable side connector type>
Plug : 10120-3000PE
Shell : 10320-52F0-008
Recommended manufacturer : 3M
(Note) When using the jackscrew M2.6-type 10320-52A0-008 for the shell, do not fasten the screws
too tightly otherwise the connector and the PCB may be damaged.
(Manufacturer recommended tightening torque: 0.20±0.05Nꞏm)
1 0V 11 0V
2 NC 12 NC
3 IHA2A 13 IHA2B
4 IHA1A 14 IHA1B
5 0V 15 0V
6 O +12V 16 O +12V
7 NC 17 NC
8 NC 18 NC
9 NC 19 NC
10 O+5V 20 O+5V
1 0V 11 0V
2 IHA3A 12 IHA3B
3 IHA2A 13 IHA2B
4 IHA1A 14 IHA1B
5 0V 15 0V
6 O +12V 16 O +12V
7 NC 17 NC
8 NC 18 NC
9 O +12V 19 O+5V
10 O+5V 20 O+5V
10 1
20 11
