M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
110
IB-1501269-J

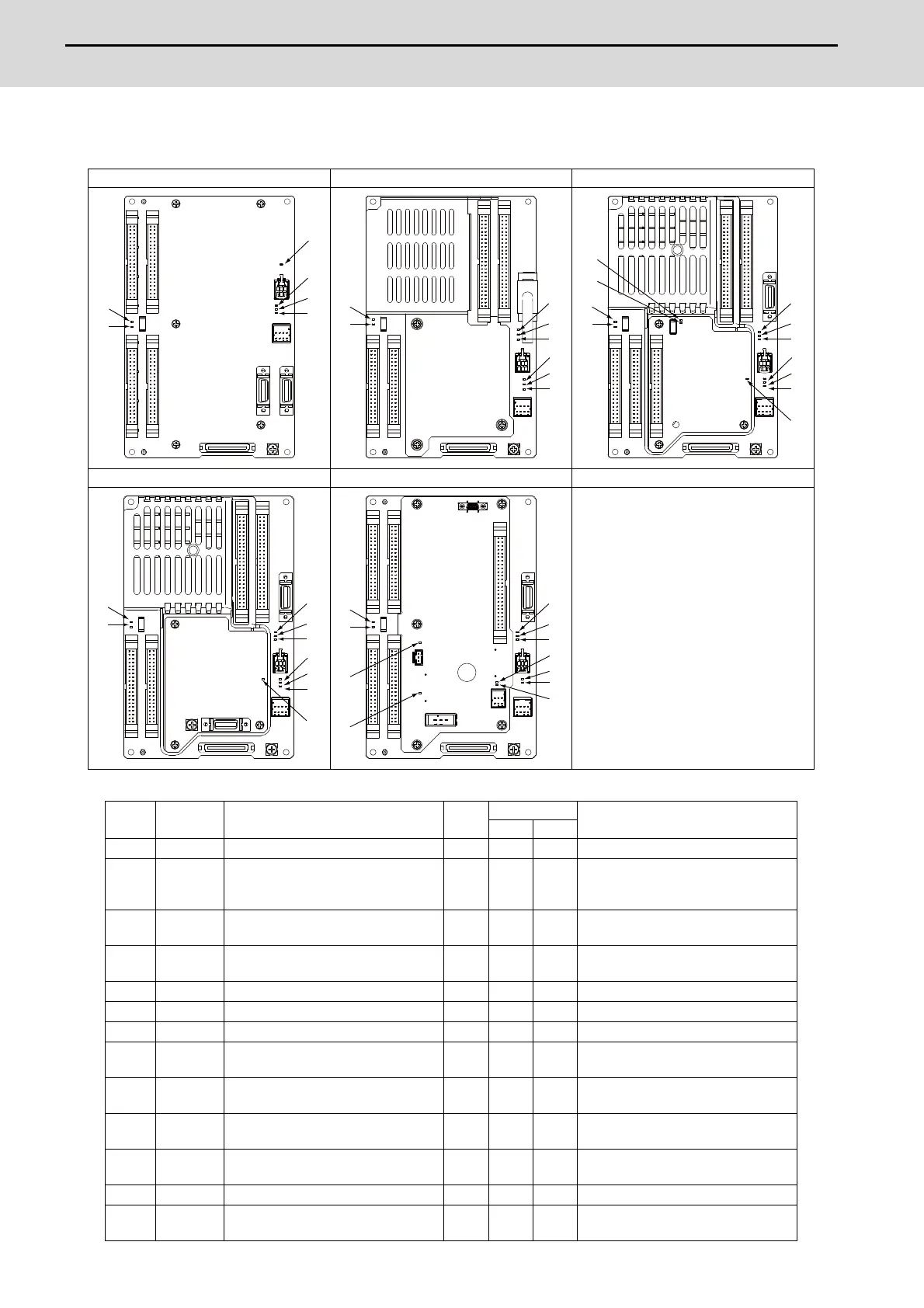

[LED]
FCU8-DX731 FCU8-DX750 FCU8-DX760
FCU8-DX761 FCU8-DX834
No. Name Function Color
Status
Details
NormalAt fault
(1) FUSE Fuse status Green Lit Not lit Not lit when a fuse has been blown out.
(2) DOCOM
Energization status of 24VDC input
(DOCOM) of CG32/CG36/CJ38/CJ40
connector
Green Lit Not lit Lit when a current is applied.
(3) EMG Emergency stop input status Red Not lit Lit
Lit when an emergency stop has
occurred.
(4) 24VDCIN
Energization status of 24VDC input of
DCIN connector
Green Lit Not lit Lit when a current is applied.
(5) 5VIN 5V power supply circuit status Green Lit Not lit Lit when the circuit is normally operated.
(6) 3VIN 3.3V power supply circuit status Green Lit Not lit Lit when the circuit is normally operated.
(7) 12VON 12V power supply circuit status Green Lit Not lit Lit when the circuit is normally operated.
(8) ALM1 RIO communication error Red Not lit Lit
Lit when RIO communication error has
occurred.
(9) ALM2 RIO communication error Red Not lit Lit
Lit when RIO communication error has
occurred.
(10) ALM3 RIO communication error Red Not lit Lit
Lit when RIO communication error has
occurred.
(11) ALM4 RIO communication error Red Not lit Lit
Lit when RIO communication error has
occurred.
(12) FUSE2 Fuse status Green Lit Not lit Not lit when a fuse has been blown out.
(13) DOCOM2
Energization status of 24VDC input
(DOCOM) of CJ42 connector
Green Lit Not lit Lit when a current is applied.
(1)
(2)
(5)
(7)
(6)
(8)
(1)
(2)
(5)
(7)
(6)
(9)
(8)
(10)
(1)
(2)
(5)
(7)
(6)
(9)
(8)
(10)
(11)
(13)
(12)
(1)
(2)
(5)
(7)
(6)
(9)
(8)
(10)
(11)
(1)
(2)
(5)
(7)
(6)
(10)
(8)
(3)
(11)
(9)
(4)
