Mitsubishi M80 series User Manual

M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
125
IB-1501269-J

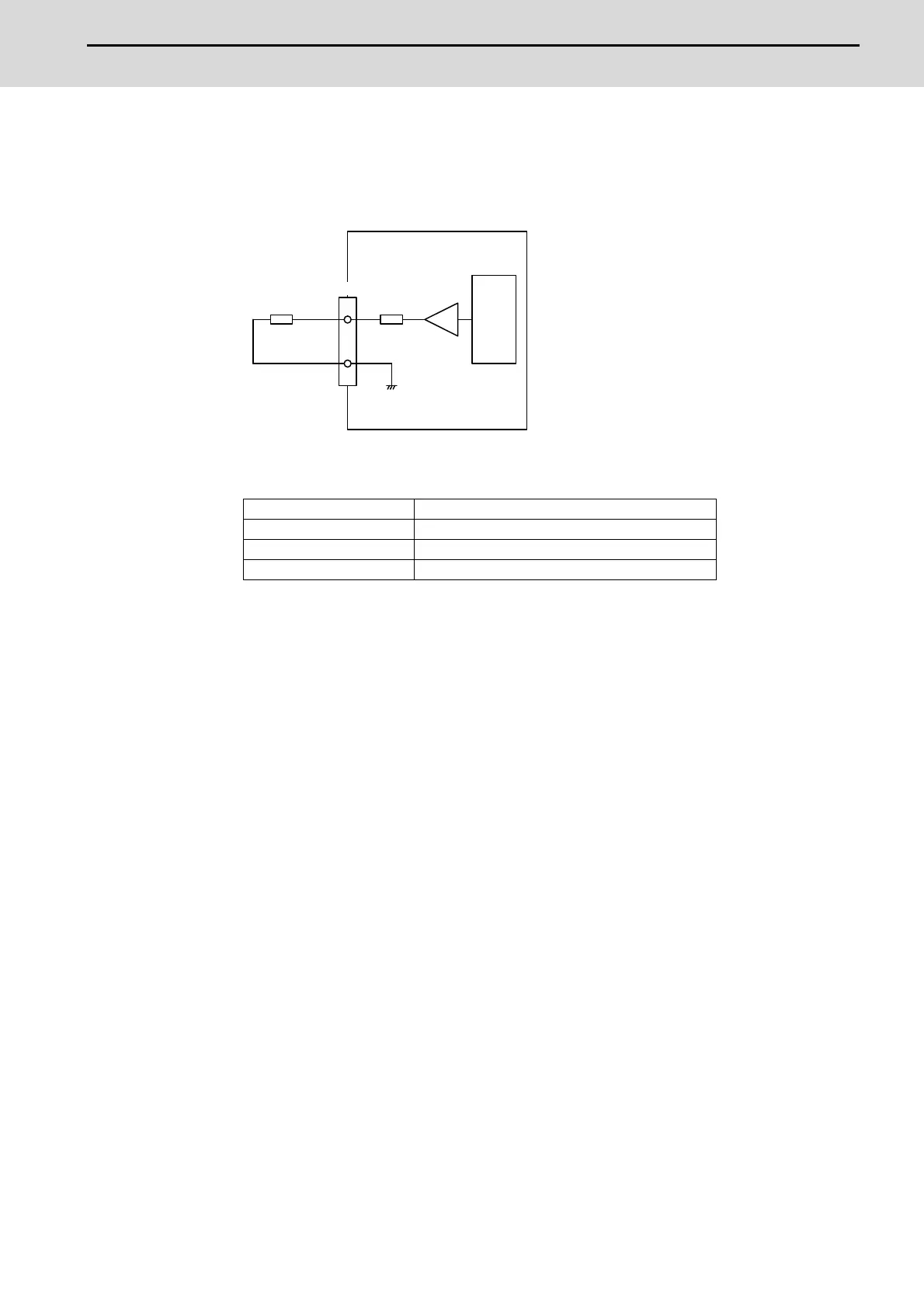

(b) Outline of analog signal output circuit
The analog signal output circuit can be used only for FCU8-DX231.
Output circuit
Output conditions
Analog output voltage -10 to 10V(±5%)
Resolution 10V / 4095 = 2.44mV
Load conditions External load resistance value 10kΩ or more
Output resistance value 500Ω
DAC
CJ34
AO
AO*
500ΩLoad

Mitsubishi M80 series Specifications

General

Type	CNC Control Unit
Power Supply	24V DC
Interpolation	Linear, circular, helical
Fieldbus	CC-Link
Operating Temperature	0 to 45°C
Interface	USB, RS-232
Processor	RISC processor
Ethernet	Yes (100BASE-TX/10BASE-T)
