Mitsubishi M80 series User Manual

M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
128
IB-1501269-J

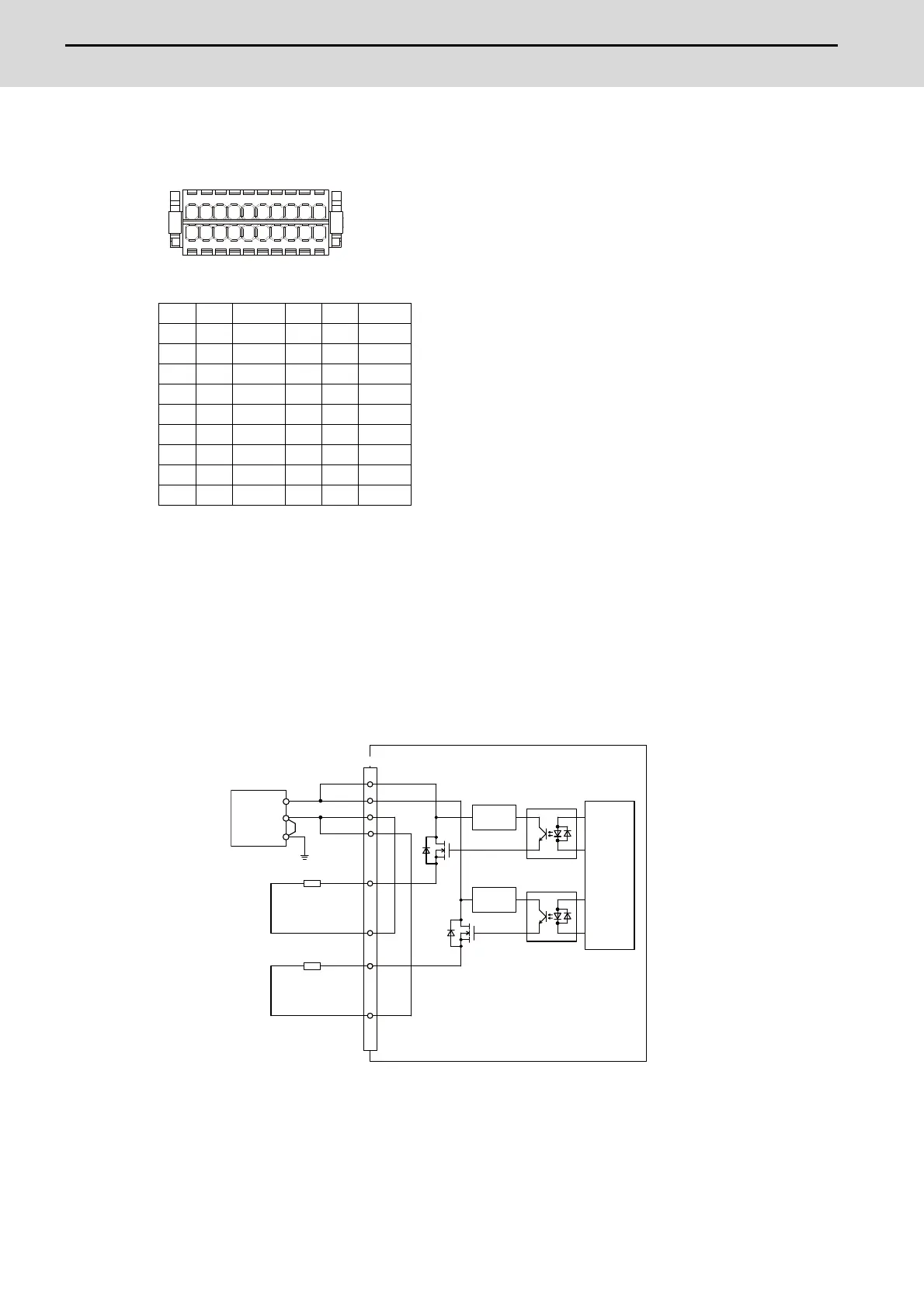

(6) CJ36 (Machine signal output)
<Cable side connector type>
Connector : 713-1110/037-000
Recommended manufacturer : WAGO
(The cable side connector is attached to the unit.)
(a) Outline of digital signal output circuit
Use within the specification ranges shown below.
Output circuit
10 I IO24VB 20 IO0VB
9 I IO24VA 19 IO0VA
8 OY07 18 COMB-
7 OY06 17 COMA-
6 OY05 16 COMB-
5 OY04 15 COMA-
4 OY03 14 COMB-
3 OY02 13 COMA-
2 OY01 12 COMB-
1 OY00 11 COMA-
101
11 20
CJ36
IO0VB
IO24VA
IO0VA
IO24VB
Y0
Y2
YE
COMA-
Y1
Y3
YF
COMB-
0V
FG
|
|
Voltage
conversion
Source output
Load
Load
Stabilized
power supply
Control
circuit
24VDC(+)
Voltage
conversion

Mitsubishi M80 series Specifications

General

Type	CNC Control Unit
Power Supply	24V DC
Interpolation	Linear, circular, helical
Fieldbus	CC-Link
Operating Temperature	0 to 45°C
Interface	USB, RS-232
Processor	RISC processor
Ethernet	Yes (100BASE-TX/10BASE-T)
