M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
150
IB-1501269-J

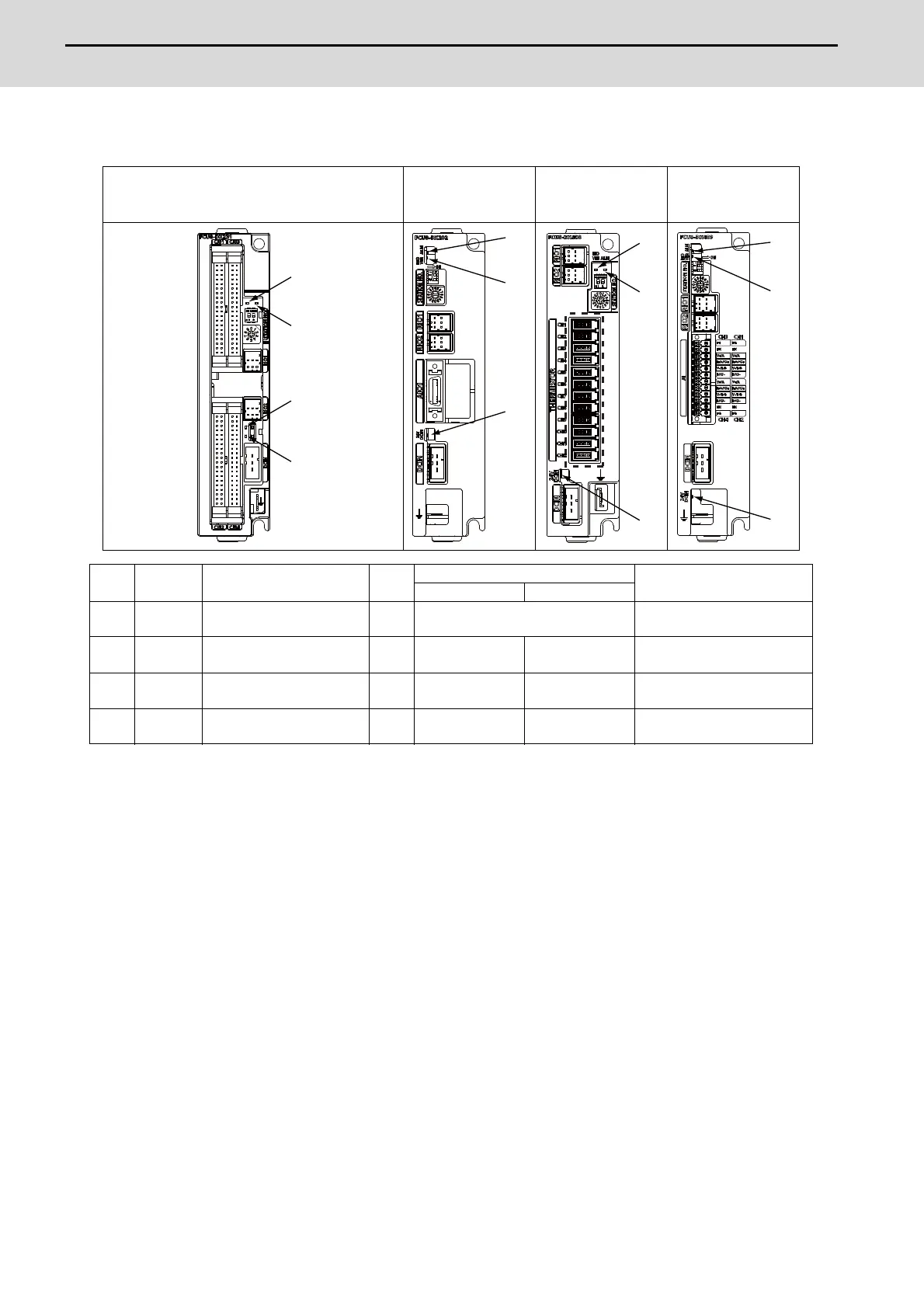

[LED : FCU8-DX220 / FCU8-DX230 / FCU8-DX231 / FCU8-DX202 /
FCU8-DX213 / FCU8-DX213-1 / FCU8-DX654 / FCU8-DX654-1 / FCU8-DX408 / FCU8-DX409]
FCU8-DX220 / FCU8-DX230 / FCU8-DX231 /
FCU8-DX213 / FCU8-DX213-1 /
FCU8-DX654 / FCU8-DX654-1
FCU8-DX202 FCU8-DX408 FCU8-DX409
No. Name Function Color
Status
Details
Normal At fault
(1) RIOVER RIO communication status Green
Lit during RIO 2.0 communication
Not lit during RIO 1.0 communication
(2) ALM RIO communication error Red Not lit Lit
Lit when RIO communication
error has occurred.
(3) FUSE Fuse status Green Lit Not lit
Not lit when a fuse has been
blown out.
(4) 24VDCIN
Energization status of 24VDC
input of DCIN connector
Green Lit Not lit Lit when a current is applied.
(3)
(4)
(2)
(1)
(4)
(2)
(1)
(4)
(2)
(1)
(4)
(1)
(2)
