M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
155
IB-1501269-J

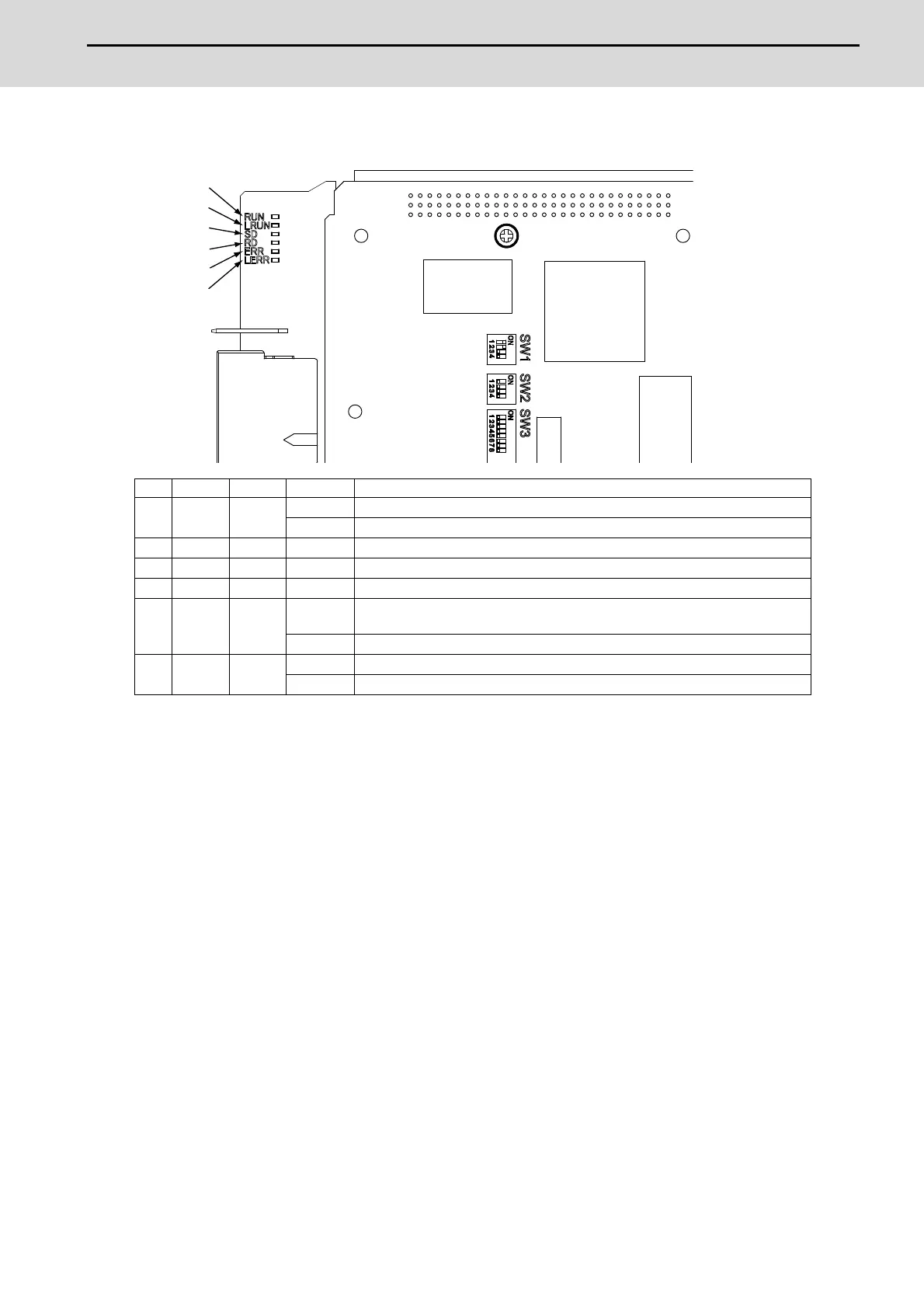

[LED]
(Note 1) All LED (RUN, LRUN, SD, RD, ERR, LERR) are lit during resetting of the CC-Link module.
No. Name Color Status Details
(1) RUN Green
Lit CC-Link module in the normal state
Not lit Watchdog timer error
(2) LRUN Green Lit Data link in process of execution
(3) SD Green Lit During data transmission
(4) RD Green Lit During data reception
(5) ERR Red
Lit
Switch setting error (LERR is also lit), overlapping of master, parameter error,
communication error
Flashing Other station data link error (when it is master station)
(6) LERR Red
Lit Data link communication error
Flashing Station and mode change during operation
(1)
(2)
(5)
(4)
(3)
(6)

Mitsubishi M80 series Specifications

General

Type	CNC Control Unit
Power Supply	24V DC
Interpolation	Linear, circular, helical
Fieldbus	CC-Link
Operating Temperature	0 to 45°C
Interface	USB, RS-232
Processor	RISC processor
Ethernet	Yes (100BASE-TX/10BASE-T)
