M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
175
IB-1501269-J

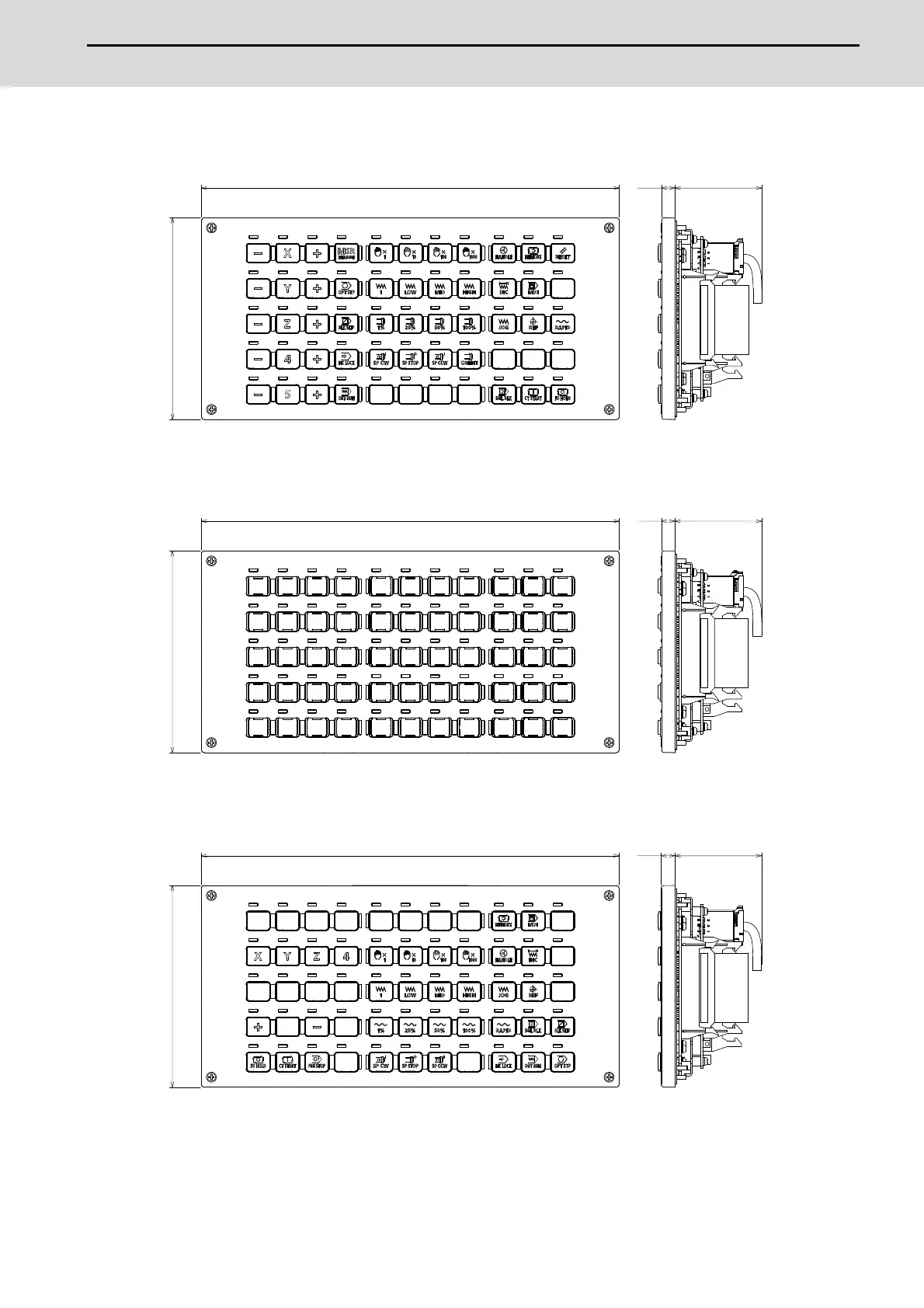

[Outline dimension : FCU8-KB923]
[Outline dimension : FCU8-KB924]
[Outline dimension : FCU8-KB926]
[mm]
290
140
9.5
60
(Space required
for wiring)
[mm]
290
140
9.5
60
(Space required
for wiring)
[mm]
290
140
9.5
60
(Space required
for wiring)
