M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
179
IB-1501269-J

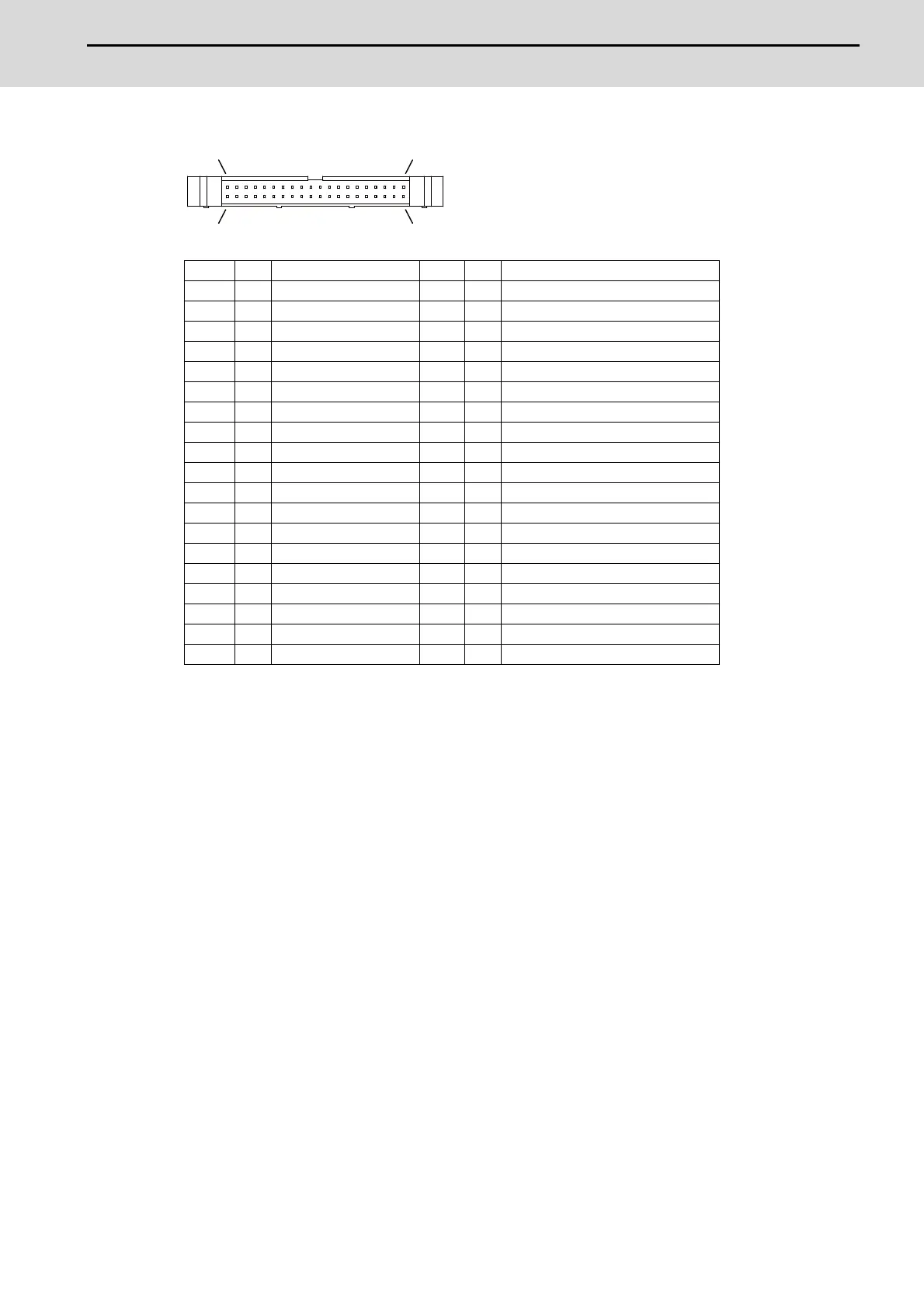

(6) SUBP (Sub panel connection)
RSW1: Cutting override switch
RSW2: Rapid traverse override switch
RSW3: Spare switch
<Cable side connector type>
Connector : HIF3BA-40D-2.54C
Contact : HIF3-2428SC
Recommended manufacturer : Hirose Electric
B20 NC A20 NC
B19 NC A19 NC
B18 NC A18 NC
B17 NC A17 NC
B16 0V A16 I Spare SW(ZR5423[5])
B15 0V A15 I Spare SW(ZR5423[4])
B14 0V A14 I Spare SW(ZR5423[3])
B13 0V A13 I Memory protection (ZR5423[2])
B12 NC A12 I RSW3_G(ZR5423[1])
B11 I RSW3_F(ZR5422[D]) A11 I RSW3_E(ZR5422[F])
B10 I RSW3_D(0V) A10 I RSW3_C(ZR5423[0])
B9 I RSW3_B(ZR5422[E]) A9 I RSW3_A(ZR5422[C])
B8 NC A8 I RSW2_G(ZR5422[B])
B7 I RSW2_F(ZR5422[7]) A7 I RSW2_E(ZR5422[9])
B6 I RSW2_D(0V) A6 I RSW2_C(ZR5422[A])
B5 I RSW2_B(ZR5422[8]) A5 I RSW2_A(ZR5422[6])
B4 NC A4 I RSW1_G(ZR5422[5])
B3 I RSW1_F(ZR5422[1]) A3 I RSW1_E(ZR5422[3])
B2 I RSW1_D(0V) A2 I RSW1_C(ZR5422[4])
B1 I RSW1_B(ZR5422[2]) A1 I RSW1_A(ZR5422[0])
To Next Page
