M800S/M80/E80 Series Connection and Setup Manual
5 Installation
208
IB-1501269-J

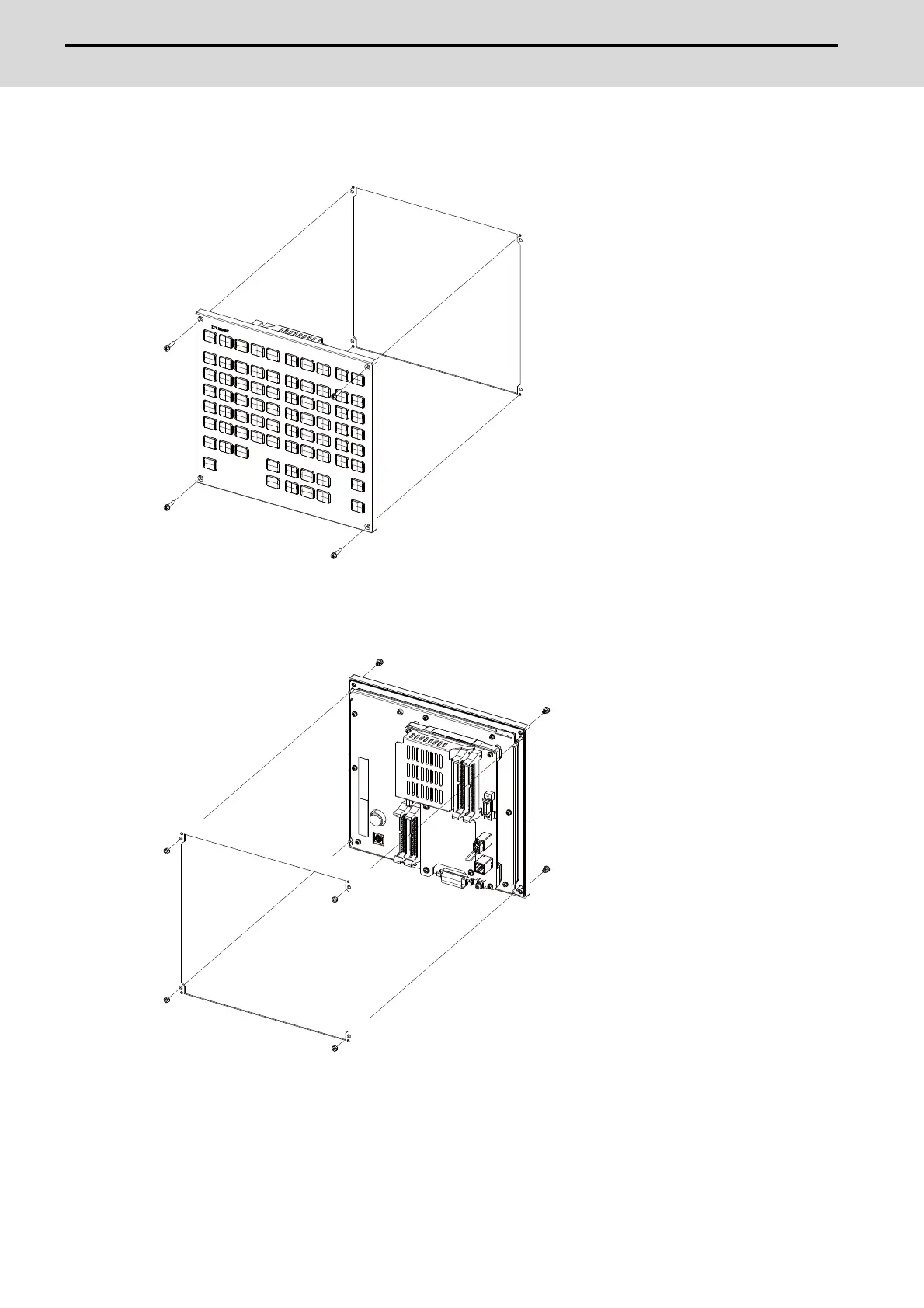

[FCU8-KB048]
- Fixed on the front side
Fixing screw: Cheese head screw M3 (4 pcs).
(Fixing screws are provided with the unit.)
- Fixed on the back side
Fixture: M3 nut (4 pcs).
(4 pcs of the screw caps (a) are provided with the unit.)
(a)

Mitsubishi M80 series Specifications

General

Type	CNC Control Unit
Power Supply	24V DC
Interpolation	Linear, circular, helical
Fieldbus	CC-Link
Operating Temperature	0 to 45°C
Interface	USB, RS-232
Processor	RISC processor
Ethernet	Yes (100BASE-TX/10BASE-T)
