9 Connection of Operation Panel I/O Unit
277
IB-1501269-J
[FCU8-DX750 / FCU8-DX760 / FCU8-DX761]

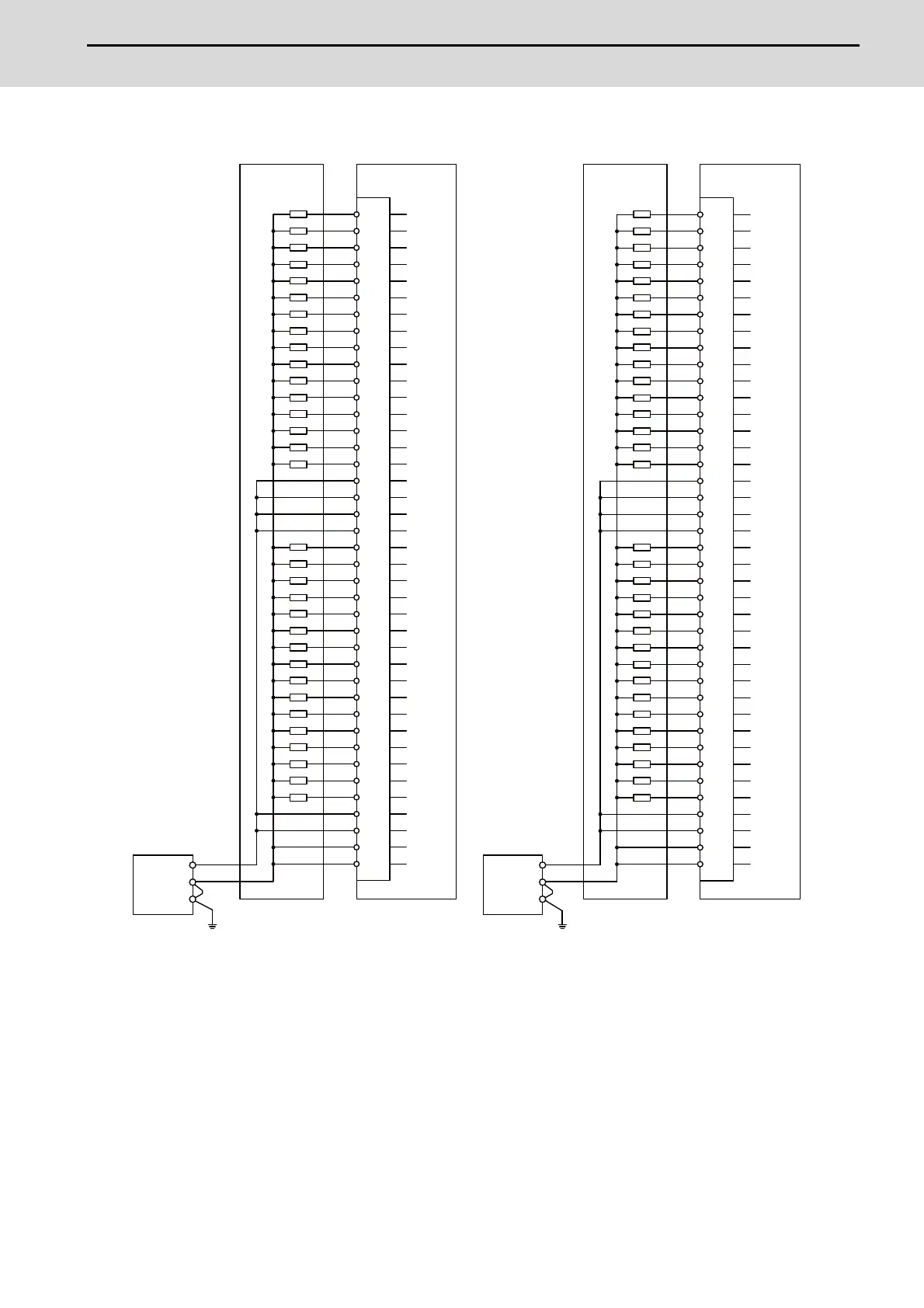

For connection details, refer to the descriptions on machine output connector pin assignment in "(8) Machine signal
output (CJ38)" and "(10) Machine signal output (CJ40)" of "General Specifications: Operation Panel I/O Unit".
0V
FG
0V
FG
CJ38
B20
B19
B18
B17
B16
B15
B14
B13
B12
B11
B10
B09
B08
B07
B06
B05
Y200
Y201
Y202
Y203
Y204
Y205
Y206
Y207
Y208
Y209
Y20A
Y20B
Y20C
Y20D
Y20E
Y20F
A20
A19
A18
A17
A16
A15
A14
A13
A12
A11
A10
A09
A08
A07
A06
A05
Y210
Y211
Y212
Y213
Y214
Y215
Y216
Y217
Y218
Y219
Y21A
Y21B
Y21C
Y21D
Y21E
Y21F
B04
B03
B02
B01
A04
A03
A02
A01
DOCOM
DOCOM
DOCOM
DOCOM
DOCOM
DOCOM
0V
0V
CJ40
B20
B19
B18
B17
B16
B15
B14
B13
B12
B11
B10
B09
B08
B07
B06
B05
Y220
Y221
Y222
Y223
Y224
Y225
Y226
Y227
Y228
Y229
Y22A
Y22B
Y22C
Y22D
Y22E
Y22F
A20
A19
A18
A17
A16
A15
A14
A13
A12
A11
A10
A09
A08
A07
A06
A05
Y230
Y231
Y232
Y233
Y234
Y235
Y236
Y237
Y238
Y239
Y23A
Y23B
Y23C
Y32D
Y23E
Y23F
B04
B03
B02
B01
A04
A03
A02
A01
DOCOM
DOCOM
DOCOM
DOCOM
DOCOM
DOCOM
0V
0V
FCU8-DX750/DX760/DX761 FCU8-DX750/DX760/DX761
24VDC(+) 24VDC(+)
Machine side
Machine side
Stabilized
power supply
Stabilized
power supply
