M800S/M80/E80 Series Connection and Setup Manual
13 Connection of MITSUBISHI CNC Machine Operation Panel
333
IB-1501269-J

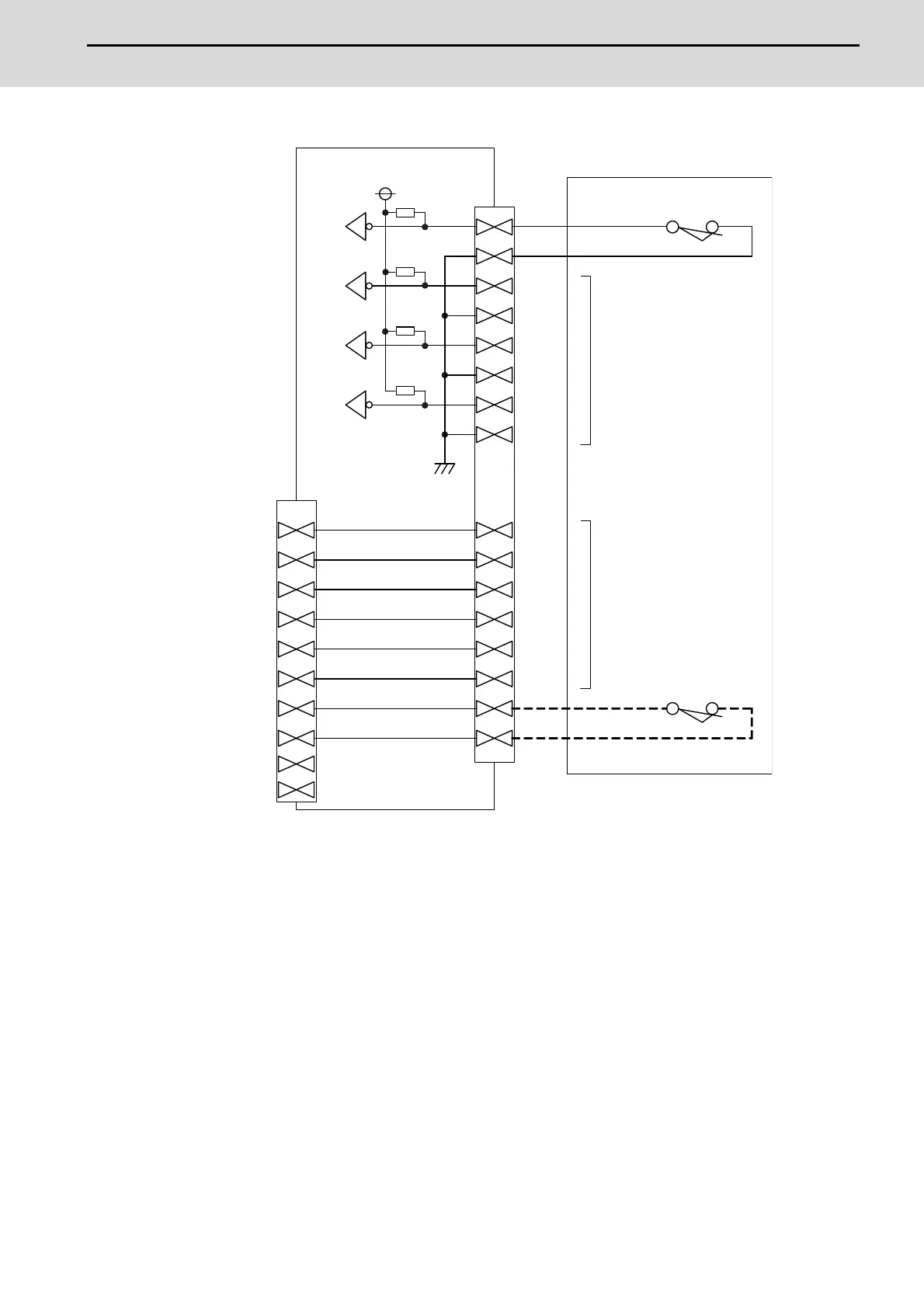

<Wiring of other switches (SUBP)>
(Note 1) Wirings for memory protection switches must be directly soldered to terminals or use tab
terminals (110 series).
(Note 2) When wiring the emergency stop switch, the crimp terminal must be fastened with thread.
(Note 3) For NCs whose control unit and display unit are integrated, wire the emergency stop switch
directly to the EMG connector of the control unit. (Use J121 cable)
For a separated-type NC, wire it directly to the EMG connector of the operation panel I/O unit.
(Note 4) Select a rotary switch which guarantees 5V/1mA.
(Note 5) Length of cables must be 0.5m or shorter.
(Note 6) The numbers in the above diagram do not indicate the actual device numbers.
[SUBP]
X72
X73
X74
X75
B13
A13
A14
A15
A16
B20
A20
B14
B15
B16
+5V
[EXT]
A17
B17
A18
B18
A19
B19
EMG
B04
A04
B01
A01
B02
A02
B03
A03
A05
B05
R
R
R
R
Main panel A/B (FCU8-KB92x)
Sub panel A (FCU8-KB931/KB941)
Memory protection switch
2 notch Key shape
2c Manual return type
Switch input spare
(3 points)
Push down switch
(For emergency stop)
Push Lock -
Turn Reset
2a2b contact
Spare for signal relay
